3.2 Multiple Station Injector - Screen Cycling Idle
State Operation
In order to use multiple channels, the Permissive
Input must be programmed with the number of
channels desired for use (1,2, or 3) and the Authorize
feature must be programmed Enable.
In the Idle State (no Permissive Input received), the
graphical display will cycle between the Grand Total
Screen, and the channel total screens. Cycling
between each screen is set at 5 seconds.
Totals displayed on the Grand Total Screen represent
the cumulative totals for additive and product, for all
three channels.
Note: If any one of the three channels is programmed
for a different injection rate, the user will not be able
to determine whether the additive to product ratio is
correct from the Grand Total Screen. However, the
additive to product ratio for each of the channel
screens should always
specifications.
Note: Anytime Authorize is enabled, the graphical
display will scroll through the channels in the Idle
State. The number of channels scrolled will equal the
number programmed in Permissive Input.
be within prescribed
24

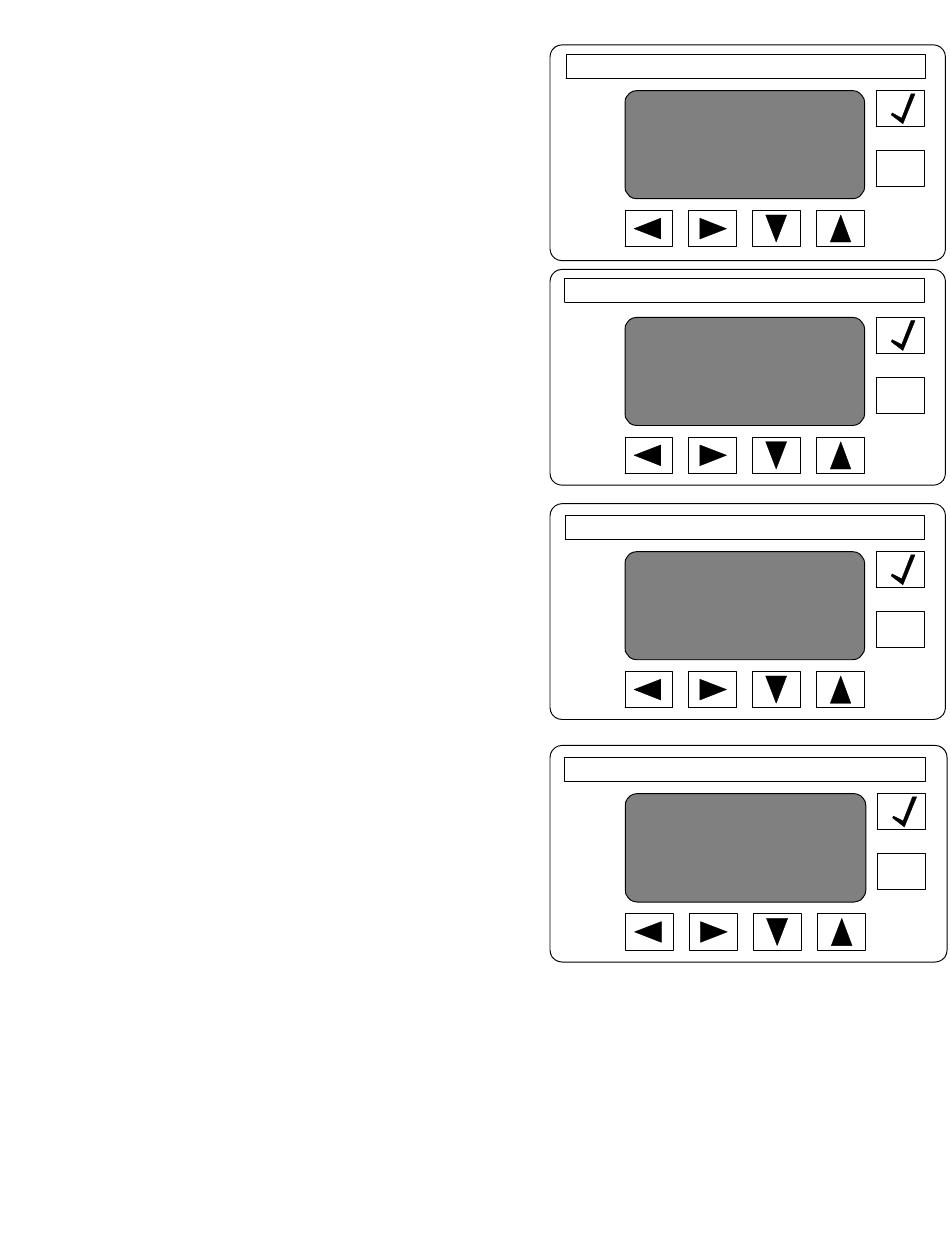

TITAN PRO PAC-3
Grand Additive
4,557.4
Load Product
9,026,480
TITAN PRO PAC-3
Ch1 Additive
2,128.27
Ch1 Product
3,222,560
TITAN PRO PAC-3
Ch2 Additive
1,537.99
Ch2 Product
3,105,040
TITAN PRO PAC-3
Ch3 Additive
891.21
Ch3 Product
2,698,880
