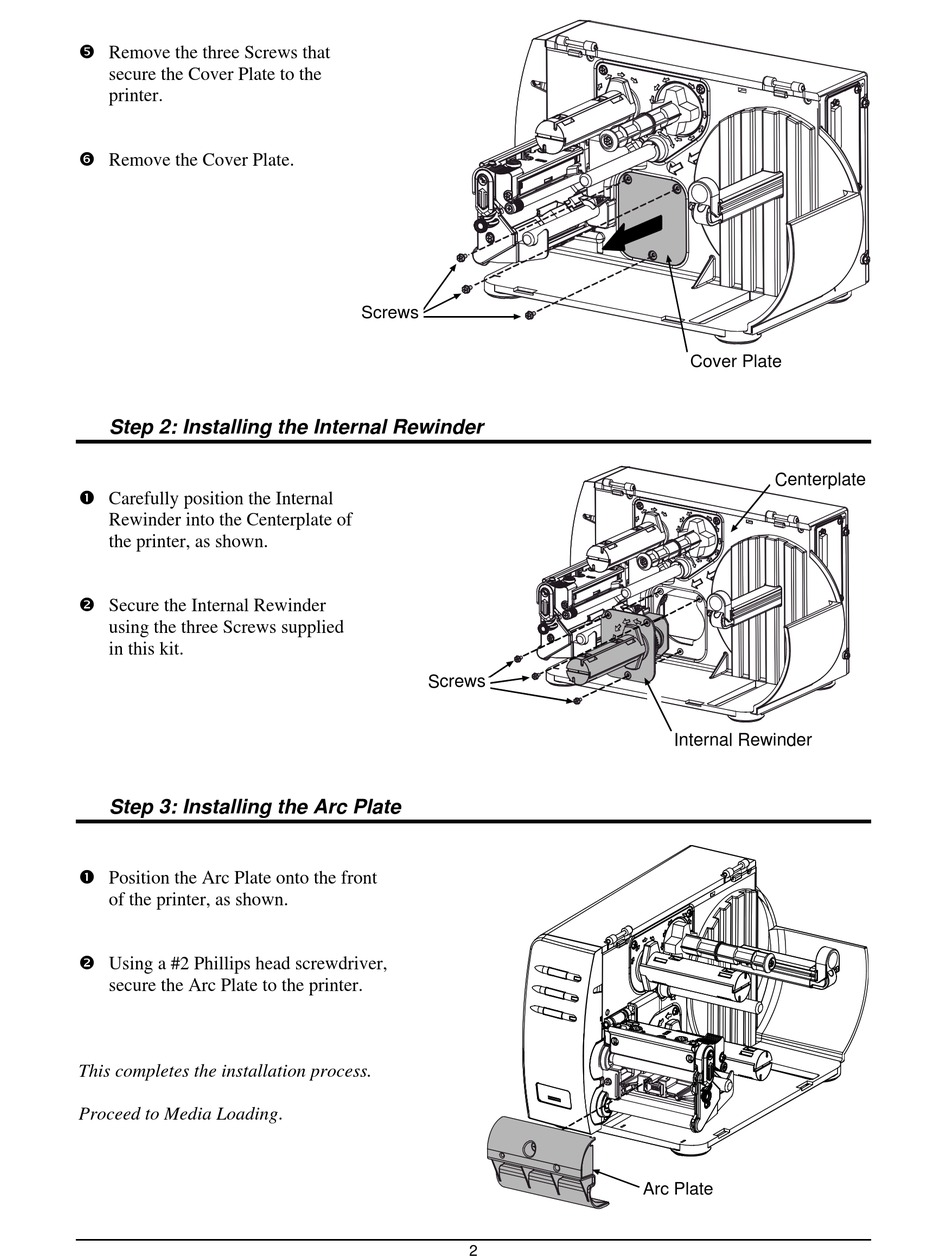

 Remove the three Screws that

secure the Cover Plate to the

printer.

 Remove the Cover Plate.

Step 2: Installing the Internal Rewinder

 Carefully position the Internal

Rewinder into the Centerplate of

the printer, as shown.

 Secure the Internal Rewinder

using the three Screws supplied

in this kit.

 Position the Arc Plate onto the front

of the printer, as shown.

 Using a #2 Phillips head screwdriver,

secure the Arc Plate to the printer.

This completes the installation process.

Proceed to Media Loading.

Screws

Cover Plate

Centerplate

Internal Rewinder

Arc Plate
