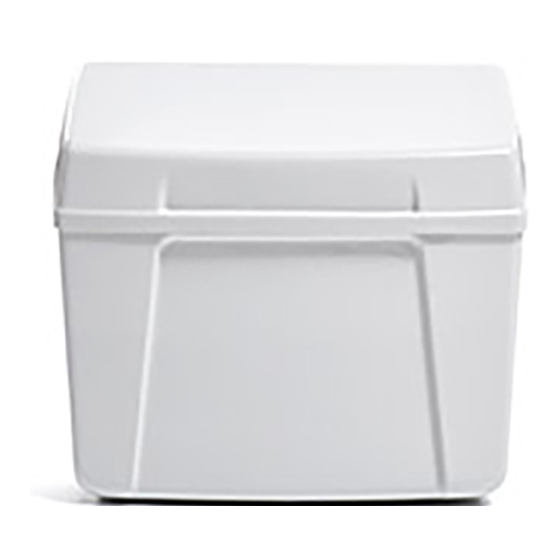

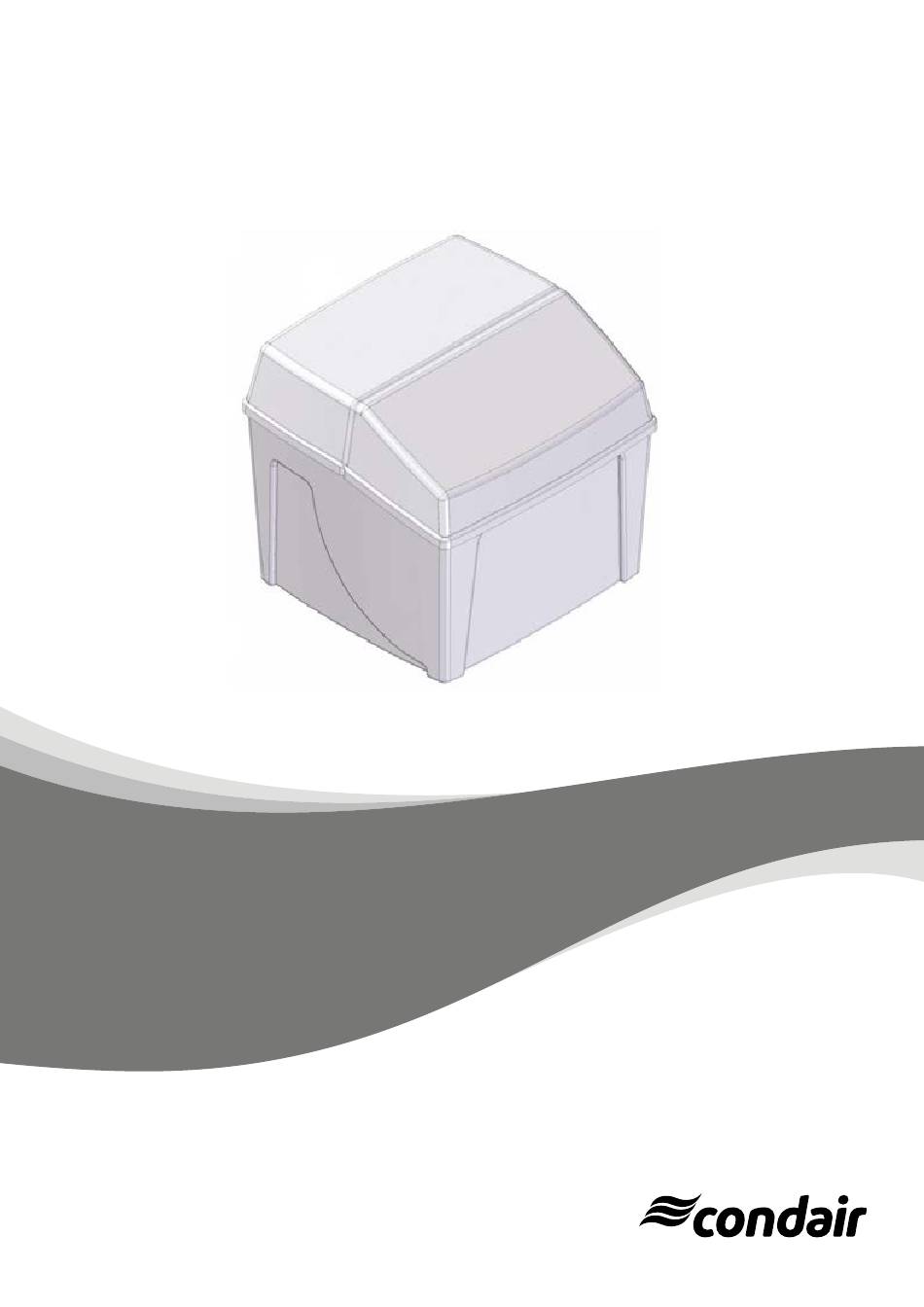

- Page 1 CONDAIR SOFT 10 Pendulum softening system INSTALLATION MANUAL Condair Soft 10 Pendulum softening system 01/05/2017 Air humidification, dehumidification and evaporative cooling...
-
Page 2: Table Of Contents
Table of Contents Safety instructions 1.1 General 1.2 Qualification of personnel 1.3 Hazards due to failure to follow safety instructions 1.4 Safe working practices 1.5 Safety instructions for maintenance, inspection, and assembly work 1.6 Unauthorised modification and replacement parts 1.7 Unauthorised operation Functional description Technical data Dimensions... -
Page 3: Safety Instructions
Safety instructions 1. Safety instructions Specifically, failure to follow the safety instructions can result in the following hazards, for example: Failure of important system functions 1.1 General Failure of specified maintenance and repair methods Hazards to personnel due to mechanical effects This technical documentation contains basic instructions that must be observed during set-up, operation and mainte- nance. -
Page 4: Functional Description
Functional description — Technical data 2. Functional description Condair Soft 10 is a pendulum softening system for the Instruction continuous production of soft water. Two exchanger con- tainers that are directly integrated in the compact brine tank According to DIN 1988, a backflow preventer must be in- alternately provide an uninterrupted supply of soft water to stalled upstream of the softening system. -
Page 5: Dimensions
Technical data Dimensions 3.1 Dimensions... -
Page 6: Parts
Installation — Parts 4. Installation 4.1 Parts 1 Valve housing 8 Hardness setting 2 Resin tank 9 To the brine valve 3 Container for device and salt 10 ¾˝ connection 4 Brine valve (float) 11 Drain 5 Water inlet (WI) 12 Connector hoses 6 Water outlet (WO) 13 Pipelines to the brine valve... -
Page 7: Safety Notes
Minimum 1 bar (dynamic), maximum 8 bar (static) (15–116 PSI). If required, reduce the inlet pressure. Do not install the Condair Soft 10 near a heat source. The ambient temperature must be below 50°C. Protect the softener and the connecting pipes from frost. - Page 8 6. Now connect the water inlet and outlet of the Condair 4 mm pipe to connect the T-piece that joins the two units to Soft 10 to the water lines using the enclosed adapters / the brine valve. Insert the pipes as far as possible (limit stop) direct connections.
-
Page 9: Settings
Settings Hardness regulator — Dilution control 5. Settings 5.3 Conversion table 5.1 Hardness regulator Measure the hardness of the incoming water by means of Hardness in °dH CaCo 3 in ppm a hardness test. Here, ppm settings of CaCO are specified 0.056 (10 ppm CaCO = 0.56°dH). -
Page 10: Commissioning
Commissioning Turn the PRG disc anticlockwise to the position indicated 6. Commissioning in fig. 2. When the arrow and the line on the transparent lid reach the area of the letter “B” (brining, i.e. salinating), 1. Slowly open the main valve. regeneration is started. - Page 11 Proper installation is a prerequisite for faultless operation. Annual inspection of your Condair Soft 10 water softener is particularly important because it guarantees you optimum performance and a long service life of the appliance.
- Page 12 A-1230 Wien Tel. +43 (0) 1 / 60 33 111-0 Fax +43 (0) 1 / 60 33 111 399 Condair GmbH Parkring 3, 85748 Garching Tel. +49 (0) 89 20 70 08-0, Fax +49 (0) 89 20 70 08-140, www.condair.de...
