Ultium Motion Quick Start Guide
Ultium™ Motion
Quick Start Guide
1
(Rev A)

Advertisement

Table of Contents
loading

Related Manuals for Noraxon Ultium Motion

Summary of Contents for Noraxon Ultium Motion

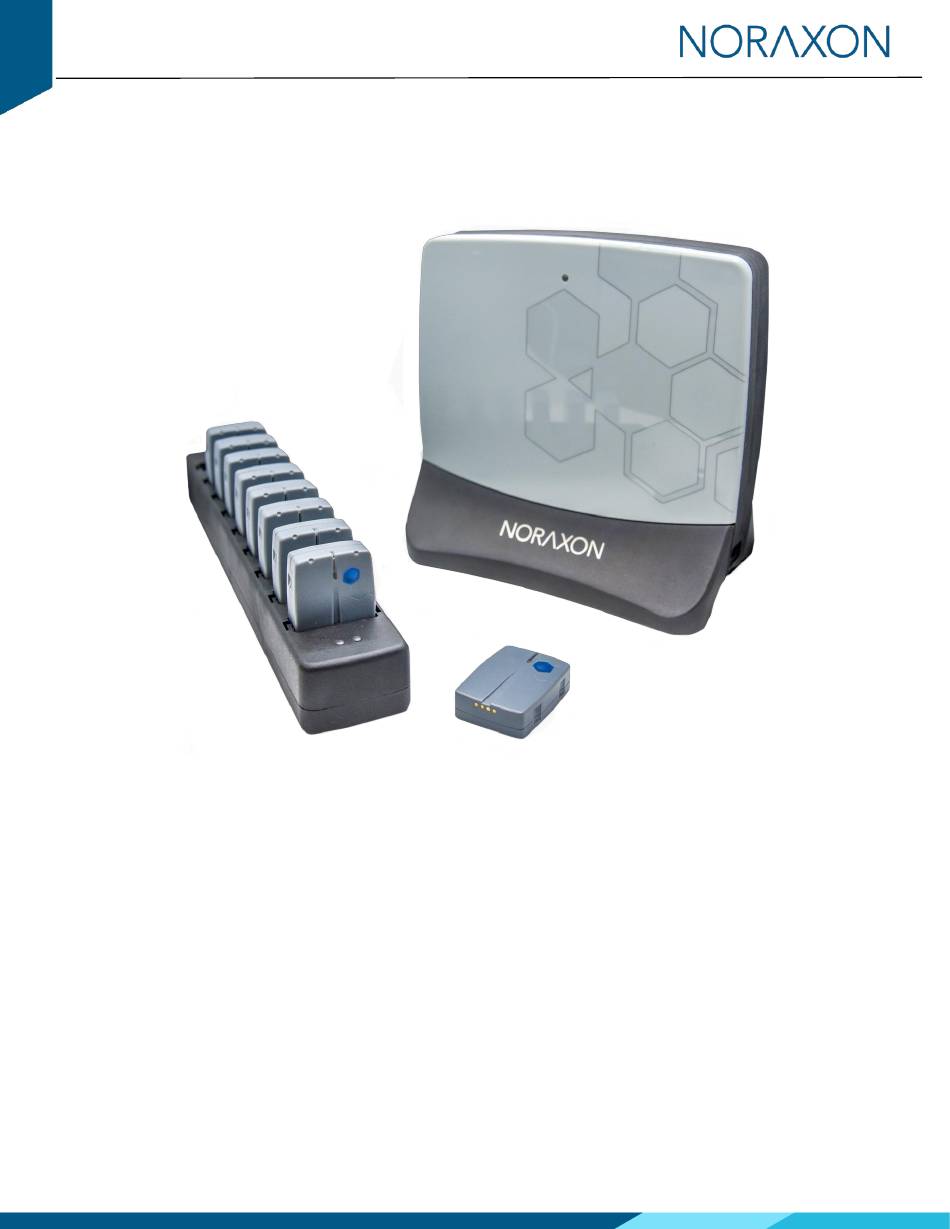

  • Page 1 Ultium Motion Quick Start Guide Ultium™ Motion Quick Start Guide (Rev A)

  • Page 2: Installing The Hardware

    Ultium Motion System, please refer to the Ultium Motion User Manual (P-8708). 1 System Unboxing The Ultium Motion System is packed within a reinforced padded box for storage and protection during transport. Upon arrival, carefully remove all contents and verify the following components are present.
  • Page 3 Ultium Motion Quick Start Guide Insert the USB cable (CBL2) into the USB connector on the back of the Ultium Receiver (880). Insert the opposite end of the USB cable into an available USB port on the computer. Step 2 Insert the Motion Sensors (870) into the Sensor Charger (873).
  • Page 4 Ultium Motion Quick Start Guide 3 Installing the Companion Software - myoRESEARCH™ 3 To utilize the full functionality of the Ultium Motion system, and ensure the system has updated drivers, Noraxon’s myoRESEARCH 3 (MR3) needs to be installed on the computer.

  • Page 5: Configuring The Hardware

    4 Configuring the Hardware Before the Ultium Motion system can be used, the device software settings must be configured to recognize the different components that make up the system. Follow the instructions below to update the receiver firmware, sensor firmware, and sensor assignment to prepare for a data collection.
  • Page 6 Ultium Motion Quick Start Guide Step 4 Make sure the Motion Sensors are placed in the Charger(s) and the Charger(s) are connected to the Ultium Receiver, then click Detect Sensors in Chargers to load all sensor serial numbers into the MR3 software.

  • Page 7: Attaching The Sensors

    For high velocity and heavy impact movements, we recommend additional fixation of the sensors with the use of elastic self-adhesive tape. Note: Best practices for sensor placement and fixation are explained further in the Ultium Motion User Manual (P-8708). 5.1 Sensor Placement Locations...

  • Page 8: Recording A Measurement

    Select New Configuration. Step 2 Insert the Ultium Motion device into the configuration by dragging it from the list of Available Devices to the Devices in Your Configuration area. Select the desired body segment sensors and associated data to include in the measurement configuration.

  • Page 9: Viewing A Record

    Ultium Motion Quick Start Guide Step 5 Ensure the subject is in the calibration position and prepared to hold this position for 8 seconds during the calibration procedure. Click Calibrate to proceed and monitor the subject to confirm the calibration position was held for the entire calibration process.
