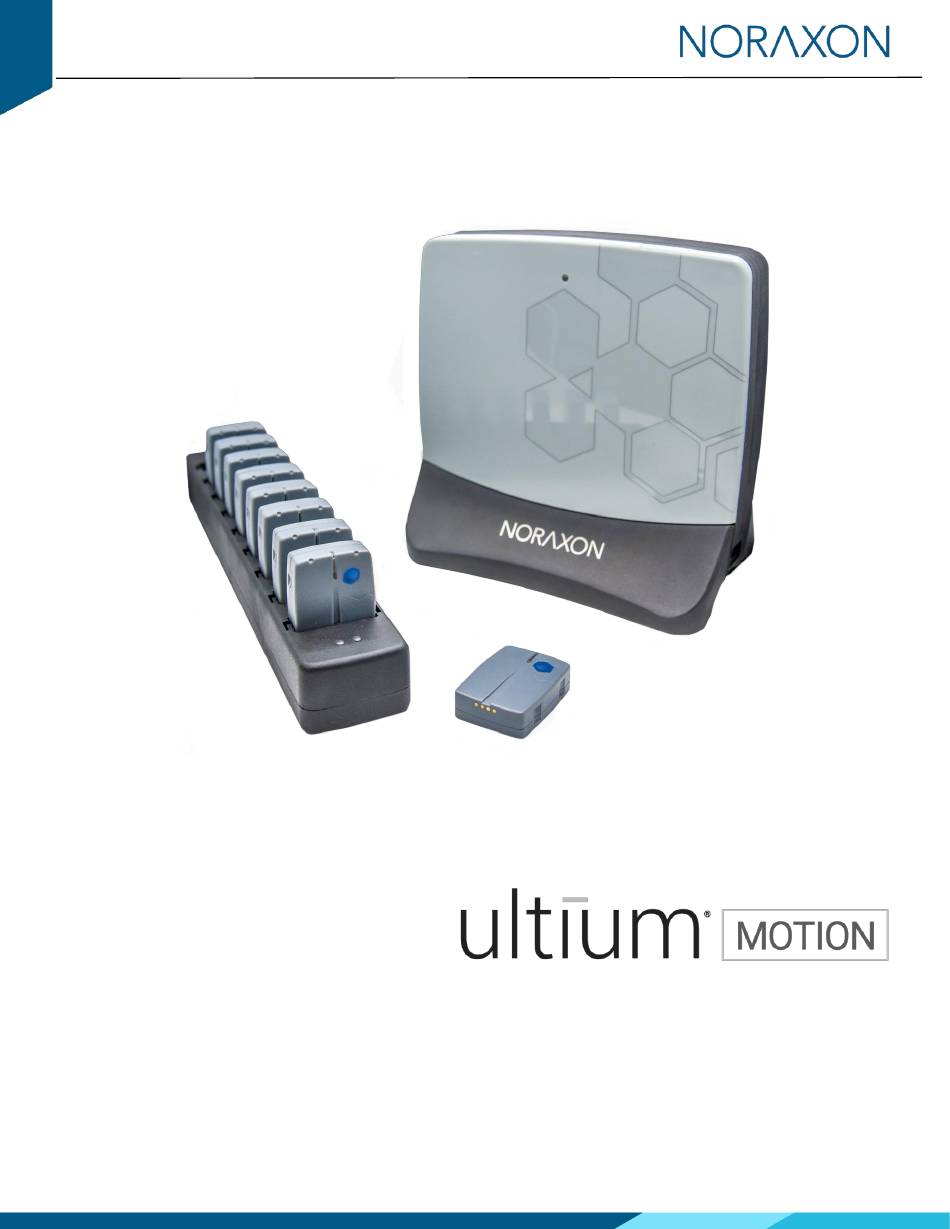

- Page 1 Ultium Motion Quick Start Guide Quick Start Guide (Rev B)
- Page 2 Ultium Motion Quick Start Guide (Rev B)
- Page 3 Ultium Motion System, please refer to the Ultium Motion User Manual (P-8708). 1 System Unboxing The Ultium Motion System is packed within a reinforced padded box for storage and protection during transport. Upon arrival, carefully remove all contents and verify the following components are present.
-
Page 4: Installing The Hardware
Ultium Motion Quick Start Guide 2 Installing the Hardware Step 1 Insert the USB cable (#CBL2) into the USB connector on the back of the Ultium Receiver (#880). Insert the opposite end of the USB cable into an available USB port on the computer. - Page 5 To utilize the full functionality of the Ultium Motion system, and ensure the system has updated drivers, Noraxon’s myoRESEARCH (MR) needs to be installed on the computer. Note: The Ultium Receiver requires the Noraxon USB device driver which is pre-installed by the MR software installation. It is also available in the Downloads section of the Noraxon website.
-
Page 6: Configuring The Hardware
4 Configuring the Hardware Before the Ultium Motion system can be used, the device software settings must be configured to recognize the different components that make up the system. Follow the instructions below to update the receiver firmware, sensor firmware, and sensor assignment to prepare for data collection. - Page 7 Ultium Motion Quick Start Guide Step 4 Make sure the Motion Sensors are placed in the Charger(s) and the Charger(s) are connected to the Ultium Receiver, then click Detect Sensors in Chargers to load all sensor serial numbers into the MR software.
-
Page 8: Attaching The Sensors
For high velocity and heavy impact movements, we recommend additional fixation of the sensors with the use of elastic self-adhesive tape. Note: Best practices for sensor placement and fixation are explained further in the Ultium Motion User Manual (P-8708). 5.1 Sensor Placement Locations... -
Page 9: Recording A Measurement
A notification will appear on the Home screen as a reminder. Step 2 Insert the Ultium Motion device into the configuration by dragging it from the Available Devices list to the Devices in Your Configuration area. Step 3... - Page 10 Click ACTIVATE to activate the hardware. Step 4 Follow the instructions in the right-side toolbar to complete the selected calibration. Note: Refer to the Ultium Motion User Manual or our video tutorials for more details on performing the different model calibrations. Step 5 After performing the calibration procedure, click Save &...
-
Page 11: Viewing A Record
Ultium Motion Quick Start Guide 7 Viewing a Record To view a previously recorded measurement, click the Database tab. Records are organized by subject name and date measured. Select and click VIEW or double-click on the record of interest to open the record in the View tab. - Page 12 Ultium Motion Quick Start Guide (Rev B)
