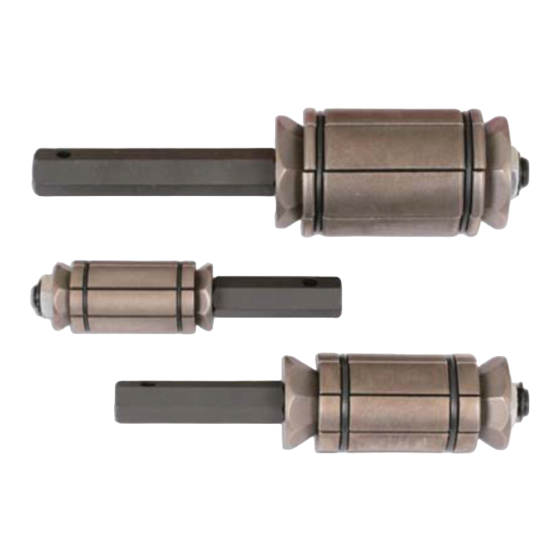

3 pc tailpipe expander set

Advertisement

1. SAFETY INSTRUCTIONS

Use in a suitable, clean and tidy work area, free from unrelated materials. Ensure
there is adequate lighting.
DO NOT continue to attempt expanding any pipe that withstands expansion.
DO NOT insert a finger into the expander at any time.
DO NOT allow untrained people to use the expander.
DO NOT allow children to use or play with the expander.
DO NOT use the expander for tasks it is not designed to perform.
DO NOT operate expander if any parts are damaged or missing as this may cause
failure and/or personal injury.
DO NOT operate the expander when you are tired or under the influence of alcohol,
drugs or intoxicating medication.
DO NOT try and expand exhaust pipes that are not already socketed and have slits
cut away for expansion.
DO NOT use an impact wrench or overload the tool.
Store the expander in a safe childproof place when not in use.
2. INTRODUCTION & SPECIFICATIONS
Ideal for fitting aftermarket components to standard exhausts. Used to expand a length
of pipe in equal proportions so the pipe is the same diameter and not tapered.
Ensures a perfect fit with no leaks and also removes dents and clamp marks.
Expander Size . . . . . .Small . . . . . . . . Medium . . . . . . . . Large
Capacity . . . . . . . . 1-1/8" to 1-3/4" . . . 1-1/2" to 2-1/2" . . . . . 2-1/8" to 3-1/2"
Drive (Hex) . . . . . . . . . 43/64" . . . . . . . . 43/64" . . . . . . . . . . 3/4"

3. OPERATION

3.1
Insert the correct sized exhaust pipe expander into the end of the pipe
NOTE!
Ensure that at least three quarters of the expander is inserted into the pipe. Failure to do so may result in damage to the expander.
3.2
Turn the hex drive clockwise to expand the tool and reshape the exhaust pipe
3.3
When the decided shape is made, wind the tool in the other direction to remove from the exhaust pipe.
NOTE!
This tool is not for expanding straight pipe, only for reshaping and widening already socketed pipes.
DO NOT use an impact wrench or overload the tool.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS &
CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED.PLEASE KEEP
INSTRUCTIONS SAFE FOR FUTURE USE.
ATD-5723
3 PC TAILPIPE EXPANDER SET
INSTRUCTION MANUAL
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATD-5723 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ATD Tools ATD-5723

  • Page 1 ATD-5723 3 PC TAILPIPE EXPANDER SET INSTRUCTION MANUAL 1. SAFETY INSTRUCTIONS Use in a suitable, clean and tidy work area, free from unrelated materials. Ensure there is adequate lighting. DO NOT continue to attempt expanding any pipe that withstands expansion.
  • Page 2 ATD-5723 ITEM# ORDERING PART# PART DESCRIPTION PRT5723-01 SMALL EXPANDER 1-1/8" TO1-3/4" PRT5723-02 MEDIUM EXPANDER 1-1/2" TO 2-1/2" PRT5723-03 LARGE EXPANDER 2-1/8" TO 3-1/2" PRT5723-04 SMALL EXPANDER O-RING SET (2) PRT5723-05 MEDIUM EXPANDER O-RING SET (2) PRT5723-06 LARGE EXPANDER O-RING SET (2) Learn everything you need about ATD products on our website.
