AT SERIES ARCHITECTURAL DIMMER
Revision 0.3
OWNERS MANUAL
03/16/2020
DESCRIPTION OF UNIT
The AT series dimmer is a unit specifically optimized for architectural applications. It can be supplied with up to
four 2400 Watt lighting circuits (channels) and be remotely controlled by a DMX lighting console. The AT series
dimmers are provided with a fast acting 20 Amp magnetic circuit breaker for each channel. A table at the end of
this manual gives a description of the different model numbers. The AT series dimmers can be supplied for 230
VAC operation.
The unit is intended for wall mounting. AT Series dimmers are for INDOOR USE ONLY.
www.lightronics.com
Lightronics Inc.
509 Central Drive Virginia Beach, VA 23454
Tel 757 486 3588

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT Series and is the answer not in the manual?

Questions and answers

Related Manuals for Lightronics AT Series

Summary of Contents for Lightronics AT Series

  • Page 1 DESCRIPTION OF UNIT The AT series dimmer is a unit specifically optimized for architectural applications. It can be supplied with up to four 2400 Watt lighting circuits (channels) and be remotely controlled by a DMX lighting console. The AT series dimmers are provided with a fast acting 20 Amp magnetic circuit breaker for each channel.

  • Page 2: Power Requirements

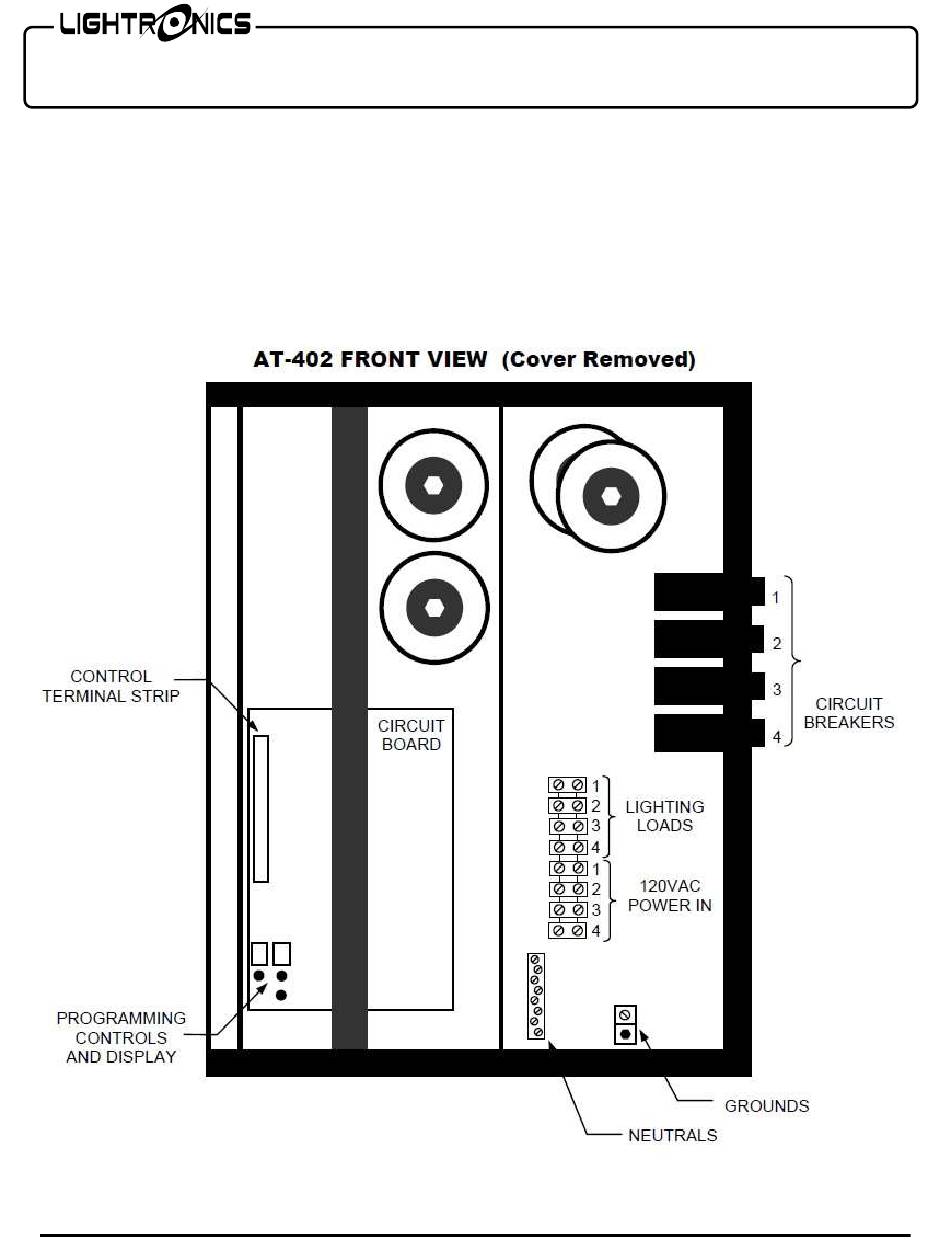

    LOAD CONNECTIONS The AT Series dimmer is a triac based dimmer meant for forward phase loads. You can connect up to 2400 Watts of lighting to each channel. Connect lighting loads to the upper terminal strip positions as indicated by the label in the unit (see page 1).
