Summary of Contents for Lightronics RE82

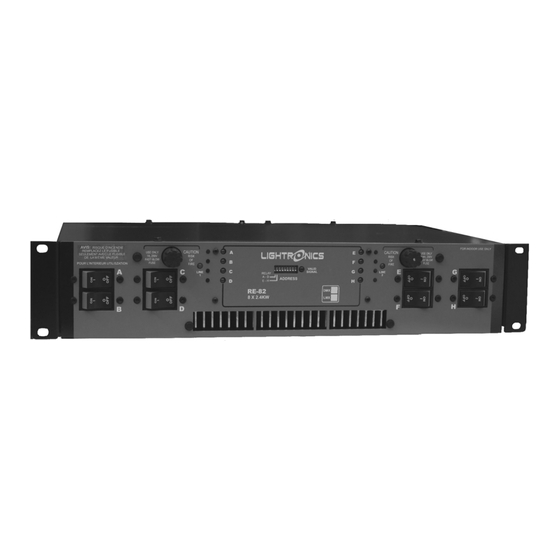

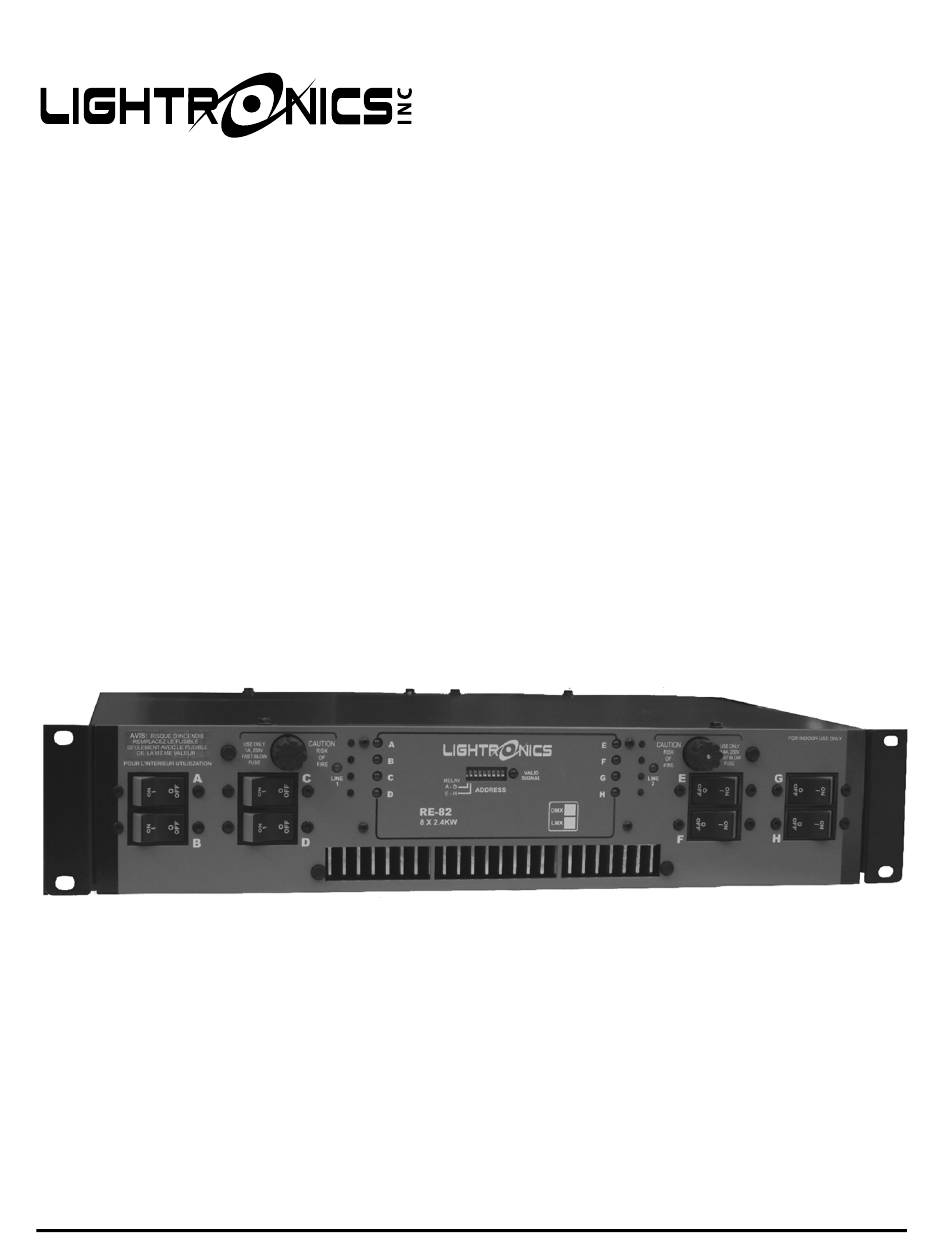

- Page 1 RE82 RACK MOUNT DIMMER 8 X 2400 Watts OWNER’S MANUAL Revision 2.5 02/17/2022 www.lightronics.com Lightronics Inc 509 Central Drive, Virginia Beach, VA 23454 TEL 757 486 3588...
-
Page 2: Power Requirements
20 Amps equates to 2400 Watts at 120VAC. If you operate a channel at 2400 watts The RE82 is supplied to use one of two types of then you are very close to tripping the breaker. This control signal. Either DMX-512 control or LMX-128 will occur if AC line voltages are high or you have control is supplied when ordered. -
Page 3: Operation
LMX Signal NORMAL OPERATION OUTPUT CHANNEL CONNECTIONS LEDs located on the front panel of the RE82 indicate channel levels as you operate faders on your The RE82 is supplied with one of several rear panel console. The "VALID SIGNAL" LED will light output options. -
Page 4: Maintenance And Repair
FRONT PANEL BREAKERS AND FUSES SERIAL NUMBER ______________________ The RE82 has two fuses. The left fuse is 1 Amp. The right fuse is 1/4 Amp. Both are 250V, 1.25 x .25 inch, fast acting fuses. These fuses provide... - Page 5 Page 5 of 6 RE82 RACK MOUNT DIMMER OWNER’S MANUAL Revision 2.5 02/17/2022 REAR PANEL EXAMPLES www.lightronics.com Lightronics Inc 509 Central Drive, Virginia Beach, VA 23454 TEL 757 486 3588...
- Page 6 The DIP Switch Setting column shows the positions of the DIP switches on the dimmer. The Start Channel column shows the resulting channel assignment for the first channel of the dimmer All Lightronics products using DIP switches for address assignments conform to this table. Some dimmers cannot be set to all 512 channels and will have fewer switches than are shown in the table.
