Version 0.1
DESCRIPTION
The DI-104 is an optically isolated DMX splitter with
one DMX input and four independent DMX output
circuits.
The four DMX output circuits have 1/8 Amp fuses in
each of the three DMX lines (Data-, Data+, and
Common).
The DI-104 is powered by an external low voltage
power supply which is provided with the unit.
DI-104
DMX OUTPUT CONNECTIONS
www.lightronics.com
Lightronics Inc.
DI-104 DMX OPTICAL ISOLATOR
OWNERS MANUAL

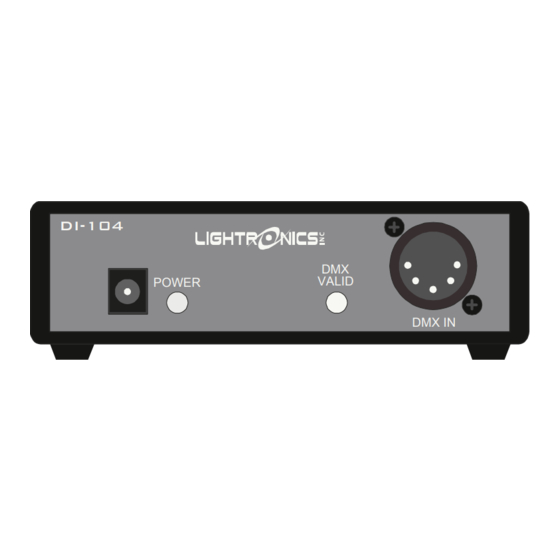

PORTABLE UNIT FRONT AND BACK VIEW
POWER
509 Central Drive Virginia Beach, Va 234354
There are two versions of the DI-104.
PORTABLE UNIT:
This version is supplied in a compact portable box with
5 pin XLR connectors for DMX IN (1) and DMX OUT
(4). The units dimensions are 5.125"W X 1.75"H X
5.25"D.
WALL MOUNT UNIT:
The wall mount version is supplied in a metal box with
appropriate mounting holes. Knockouts are provided
for signal access. DMX IN and DMX OUT connections
are via terminal strips with screw down terminals.
The units dimensions are 10.25"W X 12"H X 4.25"D.
DMX
VALID
DMX IN
Page 1 of 4
05/26/2009
20090526 drp
757 486 3588
Advertisement
Table of Contents
Related Manuals for Lightronics DI-104
Summary of Contents for Lightronics DI-104
- Page 1 05/26/2009 DESCRIPTION There are two versions of the DI-104. PORTABLE UNIT: The DI-104 is an optically isolated DMX splitter with one DMX input and four independent DMX output This version is supplied in a compact portable box with circuits. 5 pin XLR connectors for DMX IN (1) and DMX OUT (4).
- Page 2 Page 2 of 4 DI-104 DMX OPTICAL ISOLATOR Version 0.1 OWNERS MANUAL 05/26/2009 WALL MOUNT UNIT FACE VIEW (Cover Removed) 10.25" KNOCKOUTS IN TOP MOUNTING HOLES (3 EACH SIDE) 12" CIRCUIT BOARD KNOCKOUTS IN BOTTOM WALL MOUNT UNIT INTERNAL BOARD...
- Page 3 A "DMX VALID" LED indicator is lighted when a DMX input signal is present. POWER SUPPLY The DI-104 will operate using any external power supply which can provide 13 - 24 Volts AC or DC at 600 ma. The power supply provided with unit is 13VAC, 800 ma.
- Page 4 A) If service is required, you may be asked to provide proof of purchase from an authorized Lightronics dealer. B) The FIVE YEAR WARRANTY is only valid if the warranty card is returned to Lightronics accompanied with a copy of the original receipt of purchase within 30 DAYS of the purchase date, if not then the TWO YEAR WARRANTY applies.
