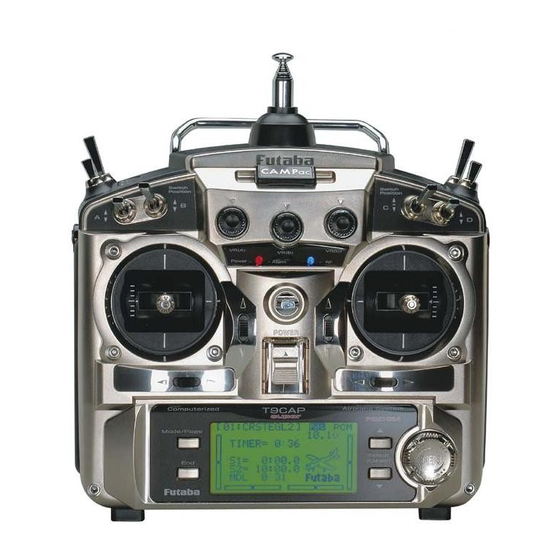

FUTABA 9CAP Instructions

Setting stick priority

Hide thumbs Also See for 9CAP:

Co-Pilot CPD and FS8 can have a more natural feel when the remote gain is controlled

by the aileron/elevator stick movement. When the stick is moved away from center, the

remote gain will turn off Co-Pilot. This allows smooth snap rolls and loops. When the

stick is returned to center, stabilization is instantly restored and the aircraft exits the

maneuver level.

Follow these steps to set stick priority on a Futaba transmitter. If a different channel is

used for the Remote on/off, substitute that channel for the channel 5 here.

Step 1) The Remote on/off is assumed to be on the Gear switch on channel 5. If channel

6 is needed, set the throws as channel 6 below. Also, to use channel 6 instead of channel

5, change the MASter channel to 6 in program modes 1 & 2.

Here are the details for step 1.

a) Press and hold MODE to enter setup.

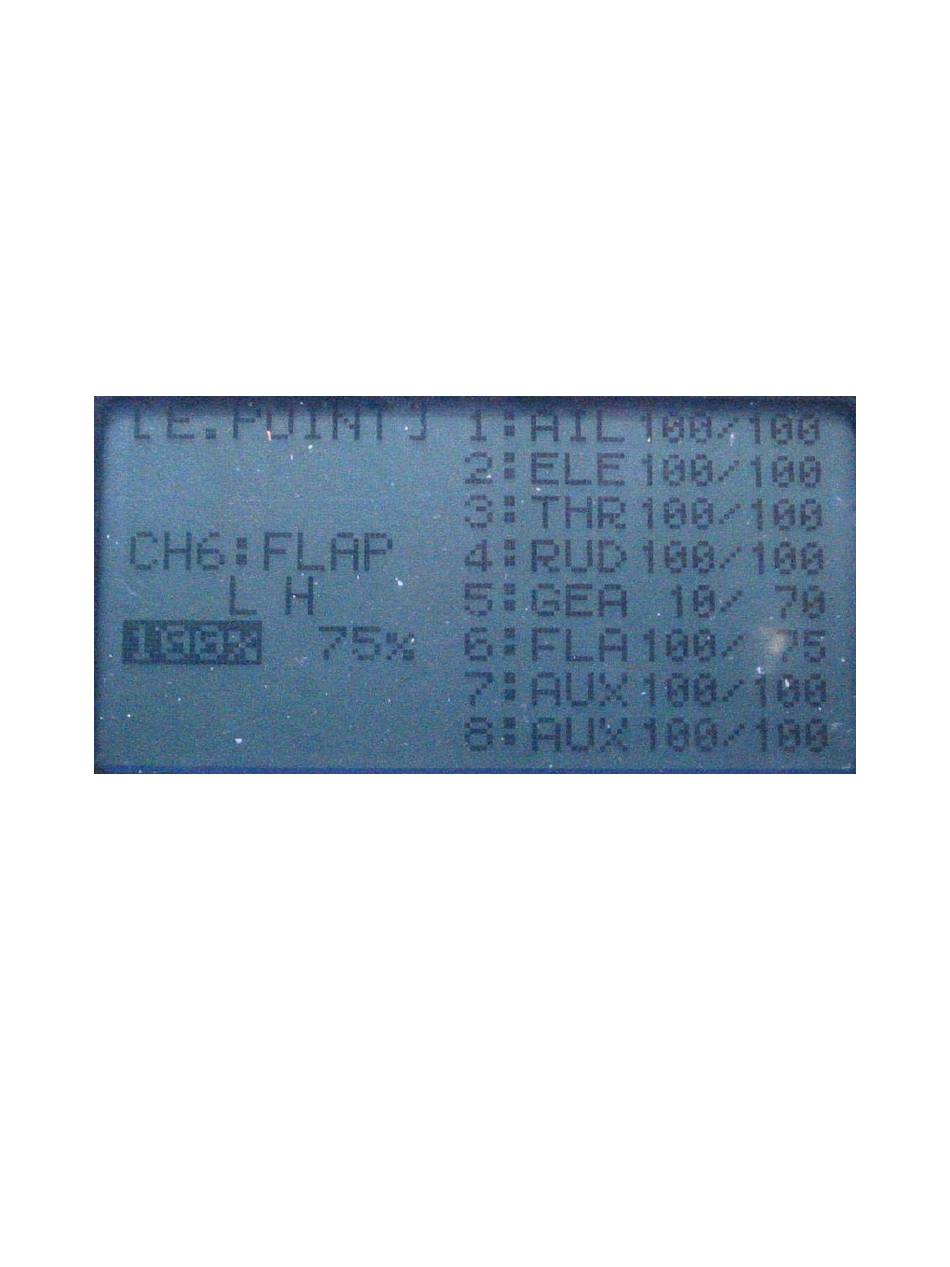

b) Roll the knob down to END POINT

c) Press the knob down to select END POINT

d) Press the DOWN button to select channel 5 or channel 6 (which ever one is for the remote on/off)

e) Press the + or – key to select 75%

Turn the knob to set the percentages as above.

g) Press END 2 times to exit.

Setting Stick Priority on a

Futaba 9CAP Transmitter

Table of Contents

Need help?

Do you have a question about the 9CAP and is the answer not in the manual?

Page 1 Follow these steps to set stick priority on a Futaba transmitter. If a different channel is used for the Remote on/off, substitute that channel for the channel 5 here.
Page 2 Step 2) Set Program Mix1 with the following. The AILERON (ch1) mixes into the GEAR (ch5) channel. Here are the details for step 2) a) Press MODE and hold to enter setup b) Press MODE to select program mixes c) Press the KNOB to select PROG.MIX1 d) Press MODE to bring up the screen above Use the KNOB to turn MIX>ON Go to the next line with the DOWN button...
Page 3 h) When in step 2 above, press the mode button to enter Program Mix 1 Setup (Screen shown above) Move the Aileron Stick to the LEFT and use the KNOB to set +100% Move the Aileron Stick to the RIGHT and use the KNOB to set –100% k) Press END twice to exit.
Page 4 Step 5) Set program mix 2 Here are the details for step 5) When in step 4 above, press the mode button to enter Program Mix 2 Setup (Screen shown above) m) Move the ELEVATOR Stick back and use the KNOB to set -100% n) Move the ELEVATOR Stick forward and use the KNOB to set +100% o) Press END twice to exit.
