FUTABA FX-30 Assembly Intructions

Hide thumbs Also See for FX-30:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual See also: Manual

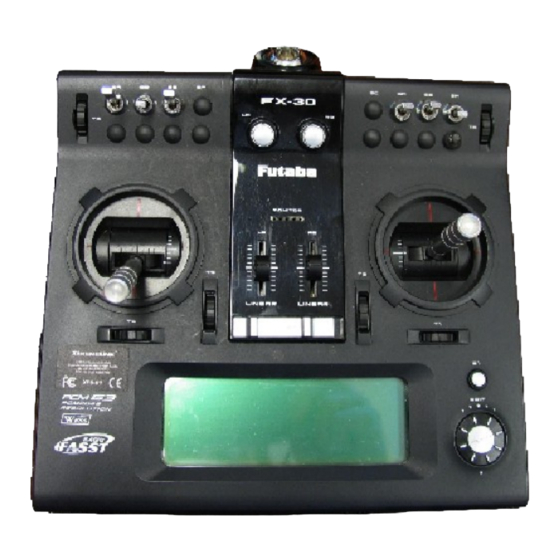

Futaba FX-30

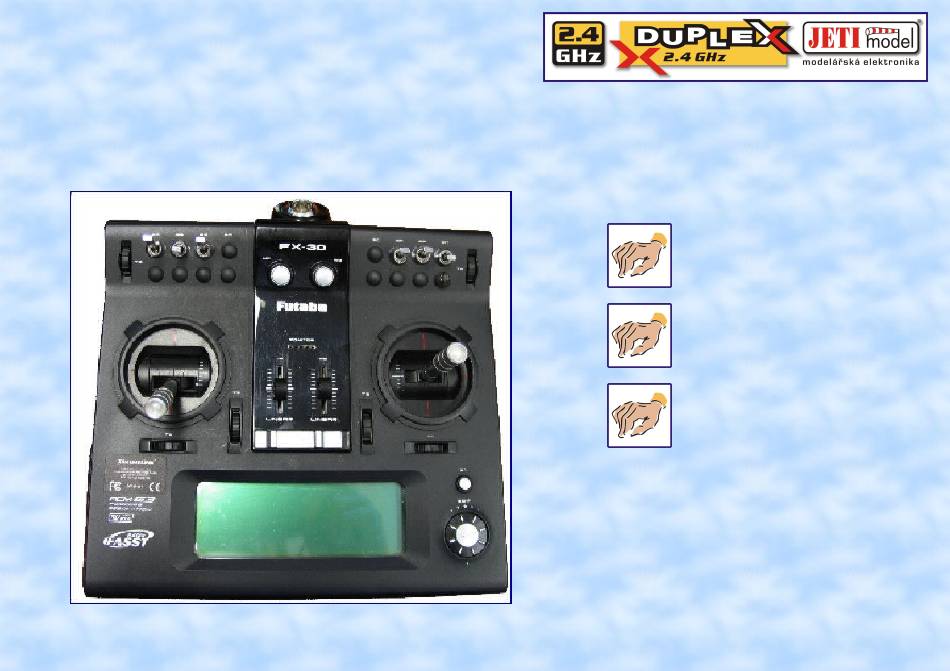

Duplex TU module fits this transmitter well but it is necessary to mount it inside the
transmitter. Antenna can be placed to the original place. Transmitter must be switched off
during manipulating. It is necessary to solder. Put transmitter on a soft pad to avoid
damage.
Switch transmitter off
Turn upside down
Open rear casing

Advertisement

loading
Need help?

Need help?

Do you have a question about the FX-30 and is the answer not in the manual?

Questions and answers

Related Manuals for FUTABA FX-30

Summary of Contents for FUTABA FX-30

  • Page 1 Futaba FX-30 Duplex TU module fits this transmitter well but it is necessary to mount it inside the transmitter. Antenna can be placed to the original place. Transmitter must be switched off during manipulating. It is necessary to solder. Put transmitter on a soft pad to avoid damage.
  • Page 2 Futaba FX-30 Unscrew original antenna. Choose right position for new antenna and remove rubber stopper in the top of the transmitter. Unsrew five screws that holds black plastic covering and remove it. Unscrew the antenna Remove rubber stopper. Unscrew 5 screws...
  • Page 3 Futaba FX-30 Unscrew 3 screws that holds mainboard. Remove connectors that are on the perimeter of the mainboard carefully so that the mainboard can be turned upside down. Duplex TU module package contains connecting cable. Cut conector at one side of the cable.
  • Page 4 Hitec Eclipse 7 Stick double-sided tape on the Duplex TU module. It is necessary to modify the antenna connector as shown on a picture. Be careful not to overheat the connector during grinding. Stick double-sided tape Modify the antenna connector...
  • Page 5 Futaba FX-30 Unscrew the nut and washer from the connector, put the connector through out from the tansmitter. Put antenna connector through prepared hole out from the transmitter, put washer and screw from outside and screw it. Put antenna connector...
  • Page 6 Futaba FX-30 Solder prepared connecting cable to the board of the transmitter properly as show on a picture. Be sure that soldered connections are not too high because there is not enough free space between board and plastic covering. Solder the cable to the board Screw 2.4 GHz antenna...
  • Page 7 Futaba FX-30 Put the mainboard back to the transmitter carefully and screw it with 3 screws. Adjust the cables that go under the board so that they don't cross each other. Connect all the connectors back to the board. Be sure that the board is not deflected. Put on black plastic covering and screw it with 5 screws.
  • Page 8 Futaba FX-30 Remove paper covering from the double-sided sticky tape and stick Duplex TU module to the right place as shown on a picture. Connect cable that goes from the transmitter to the Duplex TU module to IN connector (Input). Insert batteries and connect it to the transmitter.
  • Page 9 Futaba FX-30 Incase the transmitter with reverse procedure see page 1. Screw enclosed antenna. Installation is completed. Before using it is necessary to pair off new receiver and transmitter, see receiver manual. Mount rear casing Screw 2.4 GHz antenna...
