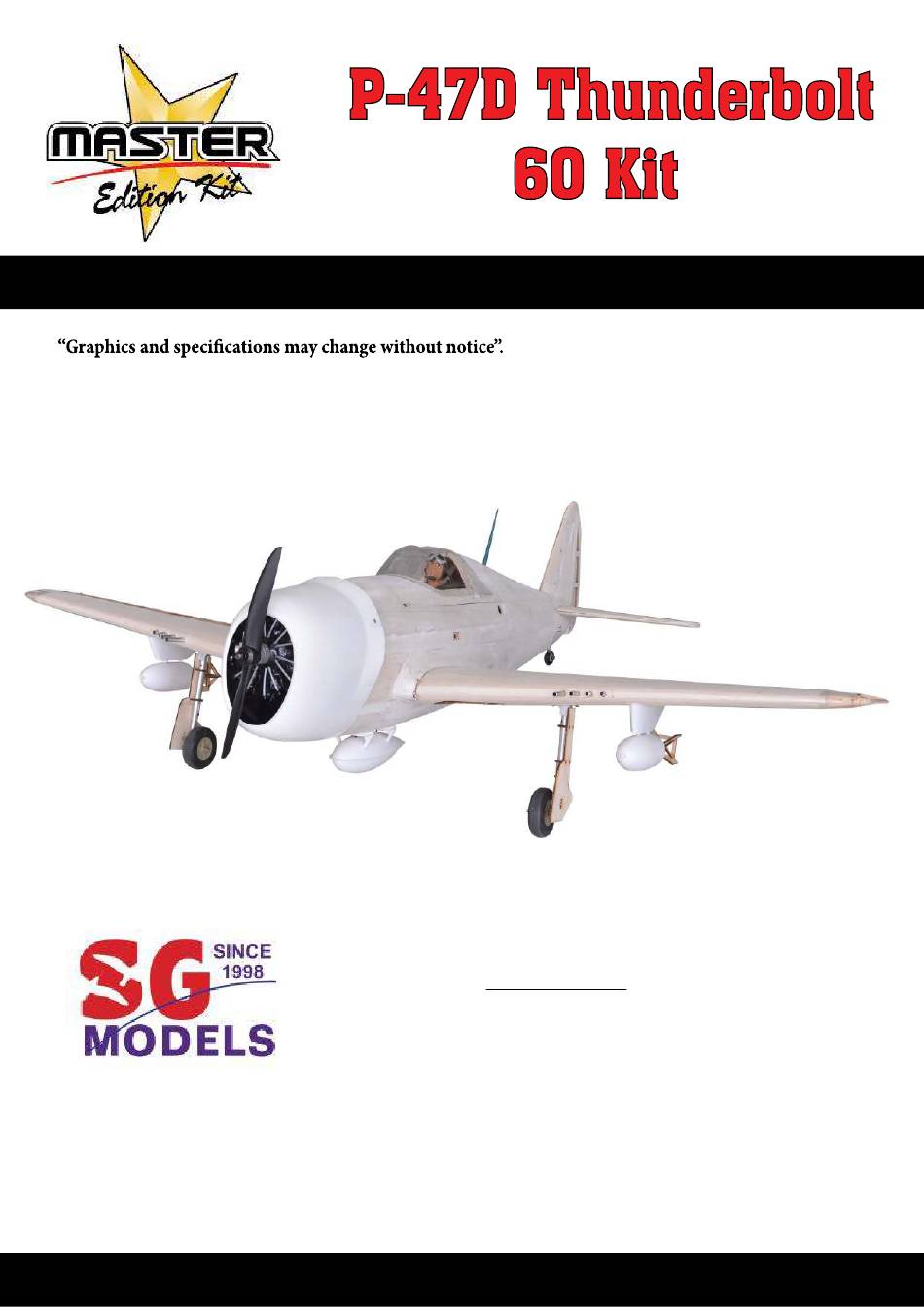

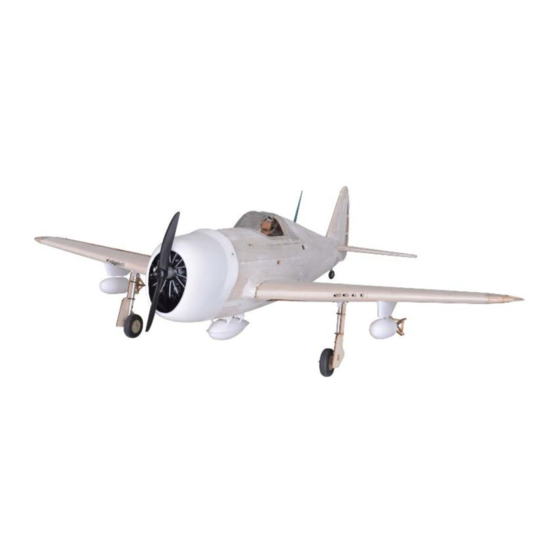

ASSEMBLY MANUAL
Speciications:
Wingspan--------------- 63.0 in (160.0 cm).
Wing area--------------- 728.5 sq.ins (47.0 sq.dm).
Weight------------------- 9.3-9.9 lbs (4.2-4.5 kg).
Length------------------- 51.8 in (131.5 cm).
Engine ------------------ 0.61 - 0.91 cu.in----2 stroke.
---------------------------- 0.91- 1.00 cu.in----4 stroke.
---------------------------- 15cc gasoline engine .
Radio--------------------- 6 channels with 9 servos.
