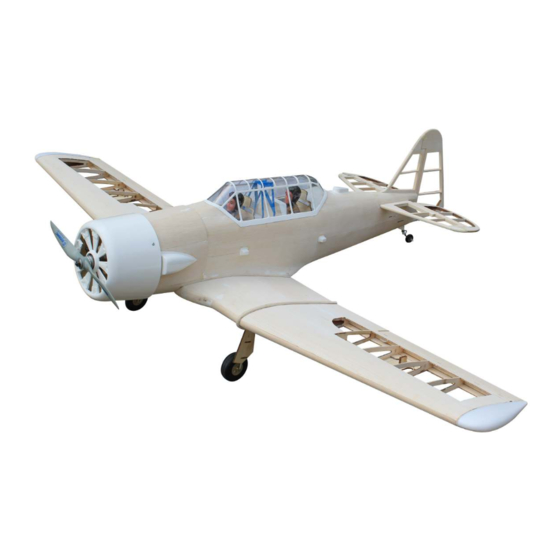

SG Models Master Scale kit Edition AT-6 Texan 63" 10-15cc Assembly Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Code : MSK01.110
ASSEMBLY MANUAL
Speciications:
Wingspan-------------------- 69.2 in--------------------- 159 cm.
Length------------------------ 43.6 in--------------------- 110.8 cm.
Wing area-------------------- 620 sq.in------------------ 40.0 sq.dm.
Weight------------------------ 6.2 - 7.7 lbs--------------- 2.8 - 3.5 kg.
Recommended R/C -------- .40 - .52 cu.in / 2 stroke.
.72 - .82 cu.in / 4 stroke.
Radio System required 6 channels with 6 servos.
1
