Summary of Contents for Cleveland SGL-30-T1

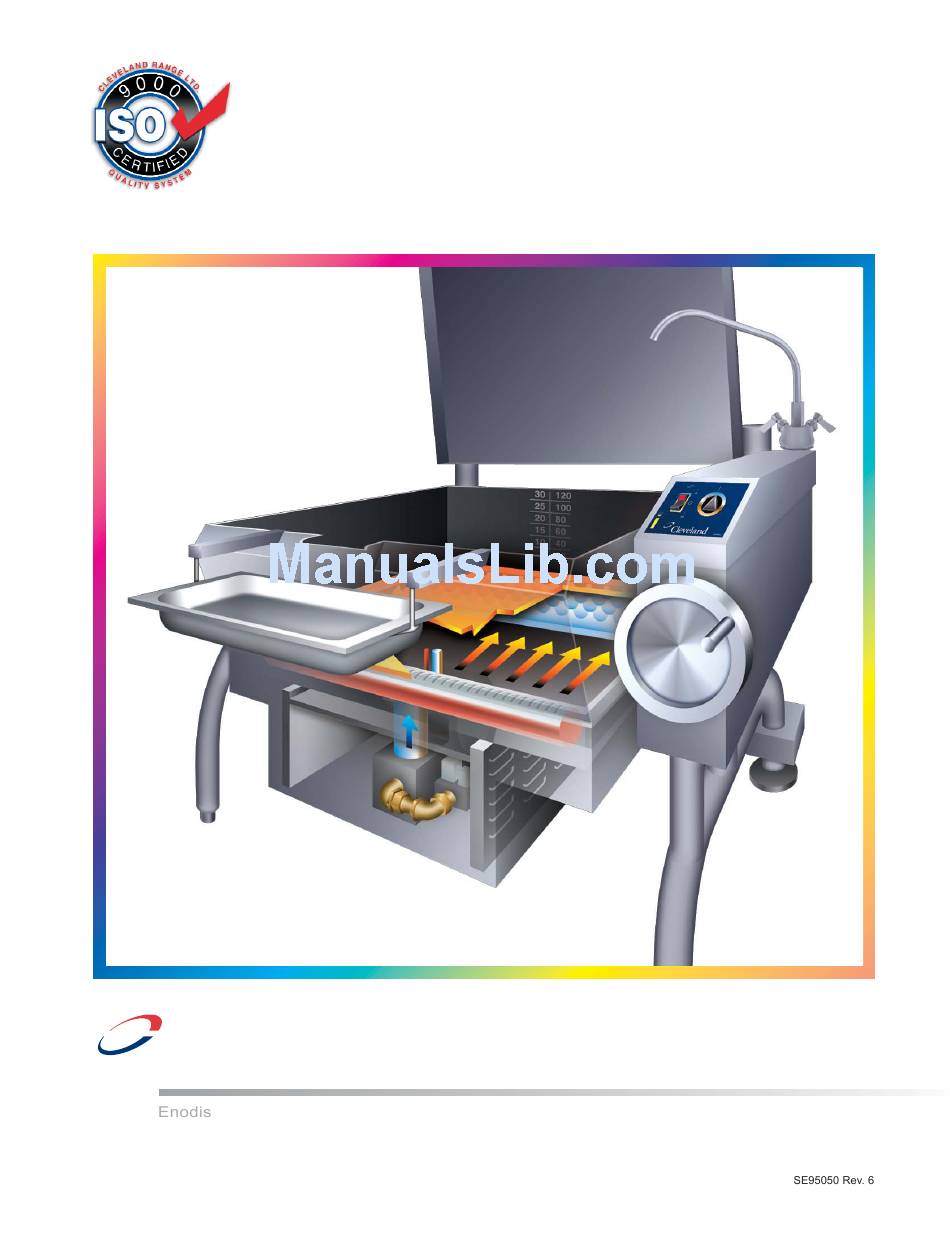

Page 1 MAY 2006: SGL-30-T1 SGL-40-T1 For a complete Service Manual refer to www.clevelandrange.com ™ Cleveland Installation, Operation & Service Gas T1 Skillets 1333 East 179th St., Cleveland, Ohio, U.S.A. 44110 Phone: (216) 481-4900 Fax: (216) 481-3782 Visit our web site at www.clevelandrange.com...
Page 2: For The User
FOR THE USER WARNING FOR YOUR SAFETY IMPORTANT Standard for Connectors for Movable Gas Appliances, ANSI Z21.69 Connectors for Moveable Gas Appliances, CAMCGA-6.16 Standard for Quick Disconnect Devices for Use With Gas Fuel, ANSI Z21.41 Quick Disconnect Devices for Use with Gas Fue4 CANT-6.9 RETAIN THIS MANUAL FOR YOUR REFERENCE.
Page 3: Installation
INSTALLATION GENERAL Installation of the unit must be accomplished by qualified installation personnel working to all applicable local and national codes. Improper installation of product could cause injury or damage. This equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are: UL, A.G.A., NSF, ASME/N.Bd., CSA, CGA, ETL, and others.
Page 4: Installation Checks
ELECTRICAL NOTE: Wiring diagram is located on the underside of the unit's control panel. ENSURE THE ELECTRICAL SUPPLY MATCHES THE UNIT'S REQUIREMENTS AS STATED ON THE RATING LABEL. A cord and plug are supplied with the 115 volt unit. Simply plug the unit into any grounded outlet rated for a minimum of 10 amps.
Page 5 OPERATING INSTRUCTIONS General Parts Drawing ITEM # DESCRIPTION HI / OFF / LO Switch Power Indicator Light (red) Temperature Dial Heat Indicator Light (yellow) Hand Tilt Wheel Power Tilt Switch Reset Button Manual Tilt Override Gas Shut Off Valve Faucet Tangent Draw-Off Valve (not shown) CONTROL PANEL...
Page 6: Operating The Unit
To raise pan, raise the cover and turn the crank clockwise. To lower pan, turn counterclockwise. POWER TILT: Cleveland skillets can also be equipped with an optional electric power tilt mechanism for raising and lowering the pan. To raise pan, raise the cover and press up on the tilt switch.
Page 7: Cleaning Instructions
CLEANING INSTRUCTIONS CAUTION SURFACES MAY BE EXTREMELY HOT! CARE AND CLEANING Cooking equipment must be cleaned regularly to maintain its fast, efficient cooking performance and to ensure its continued safe, reliable operation. The best time to clean is shortly after each use (allow unit to cool to a safe temperature).
Page 8: Stainless Steel Equipment Care And Cleaning
STAINLESS STEEL EQUIPMENT CARE AND CLEANING (Suppied courtesy of Nafem. For more information visit their web site at www.nafem.org) Contrary to popular belief, stainless steels ARE susceptible to rusting. Corrosion on metals is everywhere. It is recognized quickly on iron and steel as unsightly yellow/orange rust.
Page 9: Service Parts
SERVICE PARTS WARRANTY Our Company supports a worldwide network of Maintenance and Repair Centers. Contact your nearest Maintenance and Repair Centre for replacement parts, service, or information regarding the proper maintenance and repair of your cooking equipment In order to preserve the various agency safety certification (UL, NSF, ASME/Ntl. Bd., etc.), only factory- supplied replacement parts should be used.
Page 10: Frame / Lid Assembly
FRAME / LID ASSEMBLY 20 21 22 ITEM NO. PART NO. DESCRIPTION SK00392-1 SK00392-2 SK2457192 SK2457193 KE50187-1 SK00394-1 SK2452300 FA95087-1 FA20008 KE53573-1 FA15019-4 FA21501-2 KE00099 KE50249-1 FA31029 FA11054 SK2459299 FA21024 FA31030 FA30055 SK00054 SK2211200 FA95081-1 SK50179 FA30504 FRAME WELDMENT (30 GALLON) ........1 FRAME WELDMENT (40 GALLON) .
Page 11 2" TANGENT DRAW-OFF VALVE ITEM NO. PART NO. 1. - 7. KE50972-B FA95049 KE527551 KE52754 KE52753 KE52752 FA00111 KE52751 DESCRIPTION DRAW-OFF ASSEMBLY ..........1 WING NUT .
Page 12: Tilt Components
TILT COMPONENTS 9 47 18 19 23 22 100 23 75 45 29 51 POWER TILT 43 42 41 MANUAL TILT 33 29 51 15 16 22 23 20 *116 50 24 22 23 20 *116 24 25...
Page 13 TILT COMPONENTS ITEM NO. PART NO. REF.SK00387 KE002590 KE55513 KE602239 KE602587 KE602598 SK2474500 REF.SK00410 FA95055-13 FA15019-6 FA21024 KE002527 FA15021 FA31500 FA11526 FA31011 FA21506 FA11135 KE602573 FA21008 FA31029 FA21024 FA31030 KE600284-4 FA31031 KE002215 FA19196 KE002509 KE54738-5 FA19505 KE602511 KE602032 KE601725 KE52832-5 KE50582-5 KE50583-1 KE50582-4...
Page 14: Control Box Assembly
CONTROL BOX ASSEMBLY SECTION A - A ITEM NO. PART NO. SK2138700 SK2360700 SK2360701 KE51005 SK2498399 SK2166800 SK2167000 SK2167100 INCLUDES SK2167200 SK2167300 SK2382800 FA21006 FA32022 FA40000-6 SK50903-1 SK50905-1 SK2142002 SE00119 SK2159300 SK2491500 SK95063 SK90125-3 KE95604-5 KE95604-6 SK2474102 KE53137-3 KE003209-11 KE53184 KE53138-1 KE50579-2 FA05002-34...
Page 15 COMPONENT PLATE ASSEMBLY ITEM NO. PART NO. KE602092 KE53838-10 KE51139 KE50753-10 KE50581 SK2475500 KE53838-25 KE53444 KE50473 FA904 KE52936-8 FA15018-8 SK2475600 SK2475700 F904 KE50577 KE50576 KE50750-7 KE52936-6 4 13 6 15 16 DESCRIPTION COMPONENT PLATE ..........1 TRANSFORMER .
Page 16: Burner Assembly
BURNER ASSEMBLY ENLARGED VIEW 16 40 ENLARGED SIDE VIEW ENLARGED VIEW ENLARGED VIEW...
Page 17 BURNER ASSEMBLY ITEM NO. PART NO. SK00399-1 SK00389-1 SK2495500 SK2478800 SK2460300 SK2460700 SK2460500 SK2460400 SK50939-1 SK50919-1 SK2494999 SK2471099 SK00396-1 SK2471200 SK50927-1 10.* SK00397-1 * SEE "GAS IGNITION CONTROL SYSTEM" DRAWING FOR MORE DETAIL SK2463299 SK2460000 SK2460200 SK2476000 SK2480101 SK2480100 SK2488100 SK2491100 SK2473000 SK2491200...
Page 18 BURNER ASSEMBLY (continued) F900 FA21008 FA31029 FA11258 FA30505-1 SK50399 KE54617-1 KE51916-2 SK50941-1 SK50941-2 FA30505-3 SK2460900 51.* SK00398-1 SK00398-2 * SEE "PILOT ASSEMBLY" DRAWING FOR MORE DETAIL SK2488200 SK2488201 SK2499600 SK2473100 SK2499700 SK2473200 SCREW, PAN QUARD, 8-32X3/8 ........6 K-LOCK NUT, 10-24 .
Page 19: Gas Train, Trunnion Assemblies
GAS TRAIN, TRUNNION ASSEMBLIES ITEM PART DESCRIPTION GAS TRAIN FI00134 ELBOW ..... . .2 F01518-1 SHUT OFF VALVE ....1 FI00607 NIPPLE .
Page 20: Pilot Assembly
PILOT ASSEMBLY ITEM PART DESCRIPTION SK00398-1 PILOT ASSEMBLY, NATURAL GAS ..1 SK00398-2 PILOT ASSEMBLY, LP ....1 SK2460100 GASKET ......1 SK2477000 IGNITOR/PILOT ASSEMBLY .
Page 21 FLUE DIVERTER ASSEMBLY 24 15 18 ITEM NO. PART NO. DESCRIPTION KE002440-1 CHANNEL WLD'T ASS'Y; 30 ........1 KE002440-2 CHANNEL WLD'T ASS'Y;...
Page 22: Maintenance
MAINTENANCE Any maintenance or service involving disassembly of components should be made by a qualified service technician. Ensure gas, electrical and water supply (if applicable) to the unit are shut off. HINGE ADJUSTMENT INSTRUCTIONS FULLY LIFT COVER TO RELEASE SPRING TENSION SPRING LUBRICATION PROCEDURE...
Page 23 BURNER ASSEMBLY GASKET EXAMINATION PROCEDURE NOTE: It is imperative that this procedure be completed at least twice yearly. 1. Turn skillet to ON. The burner must be firing during this procedure. 2. Using a stainless steel extension mirror, inspect gasket between burner pan assembly and skillet pan (sides and front only).
Page 24: Sequence Of Operations
SEQUENCE OF OPERATIONS When using these instructions refer to the SGL-TI wiring schematic. 115 VAC is sent through the 3 amp fuse to ■ The primary of the 24 VAC transformer ❏ 24 VAC is sent from the secondary of the 24VACtransformer to the Hi/Off/Low Switch.
Page 25: Spare Parts List
SPARE PARTS LIST PART NO. DESCRIPTION SK2474500 SWTCH, TILT LIMIT ............. .1 KE53838-25 TRANSFORMER .
Page 26: Wiring Diagram
WIRING DIAGRAM TRANSFORMER HIGH/OFF/LO SWITCH ELECTRONIC TILT LIMIT SWITCH TILT SWITCH ELECTRICAL COMPONENT PART #s FUSE 3A KE52936-6 FUSE 1.25A KE52936-8 RELAY 1 SK2475500 BLOWER SK2476000 PILOT IGNITOR SK2477000 105693 GAS CONTROL MODULE SK2475300 GAS VALVE (NATURAL) SK2488200 105782 1057821 GAS VALVE (LP) SK2488201 TRANSFORMER, 24V...

This manual is also suitable for:

Sgl-40-t1
