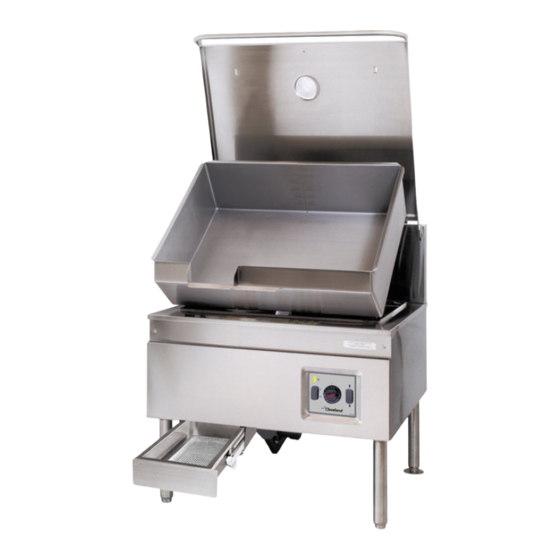

Operators Manual
OPEN BASE & MODULAR
GAS SKILLETS -
MODELS
SGL-30-TR
SGM-30-TR
SGL-40-TR
SGM-40-TR
™
Cleveland
Enodis
Installation, Operation & Service
BULLET FOOT (FRONT) 078160-1
FLANGED FOOT (BACK) 078161-1
1333 East 179th St., Cleveland, Ohio, U.S.A. 44110
Phone: (216) 481-4900 Fax: (216) 481-3782
Visit our web site at www.clevelandrange.com
Skillets
SE95033 Rev. 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Open Base & Modular Gas Skillet SGL-30-TR and is the answer not in the manual?

Questions and answers

Related Manuals for Cleveland Open Base & Modular Gas Skillet SGL-30-TR

Summary of Contents for Cleveland Open Base & Modular Gas Skillet SGL-30-TR

  • Page 1 Operators Manual Installation, Operation & Service OPEN BASE & MODULAR GAS SKILLETS - MODELS SGL-30-TR SGM-30-TR SGL-40-TR SGM-40-TR ™ Cleveland Enodis BULLET FOOT (FRONT) 078160-1 FLANGED FOOT (BACK) 078161-1 1333 East 179th St., Cleveland, Ohio, U.S.A. 44110 Phone: (216) 481-4900 Fax: (216) 481-3782 Visit our web site at www.clevelandrange.com Skillets SE95033 Rev.

  • Page 2: For The User

    Keep appliance area free and clear from combustibles. Do not obstruct the flow of combustion and ventilation air. All service must be performed by a qualified cleveland range technician. For unit equipped with casters, the installation shall be made with a connector that complies with the Standard for Connectors for Movable Gas Appliances, ANSI Z21.69 or Connectors...

  • Page 3: Gas Appliances

    For your safety Keep hands and utensils away from moving parts and pinch points. Inspect unit daily for proper operation. Surfaces may be extremely hot! Use protective equipment. WARNING: Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.

  • Page 4: Installation

    INSTALLATION GENERAL Installation of the unit must be accomplished by qualified installation personnel working to all applicable local and national codes. Improper installation of unit could cause injury or damage. This equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are: UL, A.G.A., NSF, ASME/N.Bd., CSA, CGA, ETL, and others.

  • Page 5: Air Supply

    INSTALLATION KEEP THE APPLIANCE AREA FREE AND CLEAR OF COMBUSTIBLE MATERIALS. 1. Carefully remove unit from carton or crate. Remove any packing material from unit. 2. A protective material has been applied to the stainless steel panels. NOTE: This material must be removed immediately after installation, as heat will melt the material and make it difficult to remove.

  • Page 6: Water Connections

    WATER CONNECTIONS (OPTIONAL) A 3/8" NPT cold water line and a 3/8" NPT hot water line are required for the fill faucet. OPERATING INSTRUCTIONS ITEM # DESCRIPTION On-Off Switch Power Indicator Light (Red) Heat Indicator Light (Yellow) Temperature Dial Power Tilt Switch Manual Tilt Override Flue Gas Shut Off Valve...

  • Page 7: Start-Up Procedure

    START UP PROCEDURE This appliance has been factory tested and adjusted under ideal conditions but, rough handling, low gas pressure, altitude or variations in gas characteristics may require fine adjustment. All units are equipped with fixed orifices and do not require primary air adjustment.

  • Page 8: Cleaning Instructions

    CLEANING INSTRUCTIONS CAUTION SURFACES MAY BE EXTREMELY HOT! CARE AND CLEANING Cooking equipment must be cleaned regularly to maintain its fast, efficient cooking performance and to ensure its continued safe, reliable operation. The best time to clean is shortly after each use (allow unit to cool to a safe temperature).

  • Page 9: Stainless Steel Equipment Care And Cleaning

    STAINLESS STEEL EQUIPMENT CARE AND CLEANING (Suppied courtesy of Nafem. For more information visit their web site at www.nafem.org) Contrary to popular belief, stainless steels ARE susceptible to rusting. Corrosion on metals is everywhere. It is recognized quickly on iron and steel as unsightly yellow/orange rust.
  • Page 10 HYDRAULIC JACK ASSEMBLIES Hydraulic Jack Assembly KE000772 For units built prior to February 2005 (replaces old Jack #s SK2381000 & SK00403) Hydraulic Jack Assembly KE000523 For units built after February 2005 ITEM NO. PART NO. KE600526 KE600527 KE600528 KE600529 KE000771 FA05002-41 FA05002-40 KE000525...
  • Page 11 HYDRAULIC JACK ASSEMBLIES - HAND TILT ITEM NO. PART NO. 2381000 FA95007-7 2376503 2357500 2376504 2376501 FA30505-3 For units built prior to October 2001 For complete assemblies see HYDRAULIC JACK ASSEMBLIES. DESCRIPTION HYDRAULIC JACK ASSEMBLY ........1 (NO LONGER AVAILABLE, USE KE000772) RETAINING RING .
  • Page 12 ACTUATOR ASSEMBLY - POWER TILT (used prior to January, 2000) ITEM NO. PART NO. SK2346100 SK2337499 SK2357600 SK2376503 FA95007-7 SK2376504 obsolete no FA95007-7 replacement (no longer used) DESCRIPTION ACTUATOR ........... . .1 ACTUATOR MOUNTING BRACKET ASSY.
  • Page 13 ACTUATOR ASSEMBLY - POWER TILT (used after January, 2000) ITEM NO. PART NO. SK2346100 KE003242 SK2346100-1 SK2346101-1 KE603205 FA11091 FA05002-54 SK2337499 SK00352 SK2357500 SK2376503 FA95007-7 SK2376504 FA30505-3 KE601979 KE601960 KE602198 FA32005 KE002226 DESCRIPTION ACTUATOR ASSY., COMPLETE WITH ITEM 2 ......1 ACTUATOR ASSY., WITH MANUAL OVERRIDE, COMPLETE WITH ITEMS 2 &...
  • Page 14 HYDRAULIC TILT ASSEMBLY ITEM NO. PART NO. 2379100 2379600 2379501 2379500 2379000 2379001 2378901 2379400 2379301 2382700 2378900 2375699 2250700 2376200 078279-1 FA95079 FI05059 2379200 SK2378800 SK2378801 SK2378800 KE00508-1 FA19505 SE00128 DESCRIPTION HYDRAULIC ADAPTOR ......... . .2 HYDRAULIC HOSE ASSY .

  • Page 15: Control Panel

    CONTROL PANEL ITEM NO. PART NO. DESCRIPTION 2474101 POWER SWITCH (240V, USED AFTER FEBRUARY 2001) ..... .1 2474100 POWER SWITCH (USED AFTER FEBRUARY 2001) ......1 2343500 POWER SWITCH (USED PRIOR TO FEBRUARY 2001) .

  • Page 16: Shaft Assembly

    SHAFT ASSEMBLY ITEM NO. PART NO. SE00119 SK2142002 SK2159300 SK2498399 SK2167200 SK2167100 SK2167300 SK2382800 SK2167000 SK2166800 2491500 KE51005 FA11054 DESCRIPTION THERMOSTAT BOARD ASSEMBLY (INCLUDES 2 - 14) TEMPERATURE SENSOR BOARD INSULATOR, THERMOSTAT POTENTIOMETER SHAFT ASSEMBLY (INCLUDES 5-10) RETAINING RING, SP-NR #R1000-25 WASHER, BOWED/SPRING PANEL BEARING RETAINING RING CLIP...

  • Page 17: Electrical Box

    ELECTRICAL BOX Component Box Cover 2343900 Component box assembly 2343699 Igniton cable SE50450 ITEM NO. PART NO. KE53838-32 KE53838-31 KE53838-30 KE53838-25 KE53838-18 1427305 2282100 1426600 KE50581 2320702 KE52936-7 KE52936-10 KE52936-13 KE52936-11 KE52936-9 KE52936-8 2147403 2147400 2147401 2361500 2329100 SK50872-1 SK50872-2 2361700 2348100 2383300...

  • Page 18: Plate Assembly

    PLATE ASSEMBLY (used prior to January, 2000) ITEM NO. PART NO. DESCRIPTION KE55069-7 HI-LIMIT 2353900 BULB CLAMP 2354099 BULB SHIELD ASSY 2345100 RTD SENSOR 2344900 SHIELD LINER 2345000 SHIELD PAN HINGE 13 14 For units with TD Valve ITEM NO. PART NO.

  • Page 19: Spring Assembly

    SPRING ASSEMBLY ITEM NO. PART NO. DESCRIPTION 2452300 SPRING ............2 2381700 TURNBUCKLE BODY .
  • Page 20 BURNER BOX ASSEMBLY ITEM NO. PART NO. 2359300 2360101 2360100 2342499 2342399 071497-2-9 2342602 2342600 2342601 2445200 2445201 2445300 2445400 2347800 2347900 2342200 2342100 2373900 SK50890 SK50891 SK50892 SK50893 DESCRIPTION BACK TOP MOUNTING BRACKET ........2 REAR COMBUSTION SEAL - 40 GAL.

  • Page 21: Manifold Assembly

    MANIFOLD ASSEMBLY ITEM NO. PART NO. 2373100 KE02410 KE55277-1 KE55277-5 KE53437-1 2363599 F01518-1 N0640C2 KE54618-2 KE54618-1 FI00336 N0440C2 2361500 2345700 FI00357 FI00073-1 2339799 2339899 DESCRIPTION BURNER (NAT. GAS) ......7 for 30 gal., 10 for 40 gal. BURNER (LP GAS) .

  • Page 22: Maintenance

    MAINTENANCE NOTE: ANY MAINTENANCE OR SERVICE INVOLVING DISSASSEMBLY OF COMPONENTS SHOULD BE MADE BY A QUALIFIED SERVICE TECHNICIAN. ENSURE GAS, ELECTRICAL AND WATER SUPPLY (IF APPLICABLE) TO THE APPLIANCE ARE SHUT OFF You have purchased the finest commercial cooking equipment available anywhere. Like any other fine, precision built piece of equipment it should be given regular care and maintenance.
