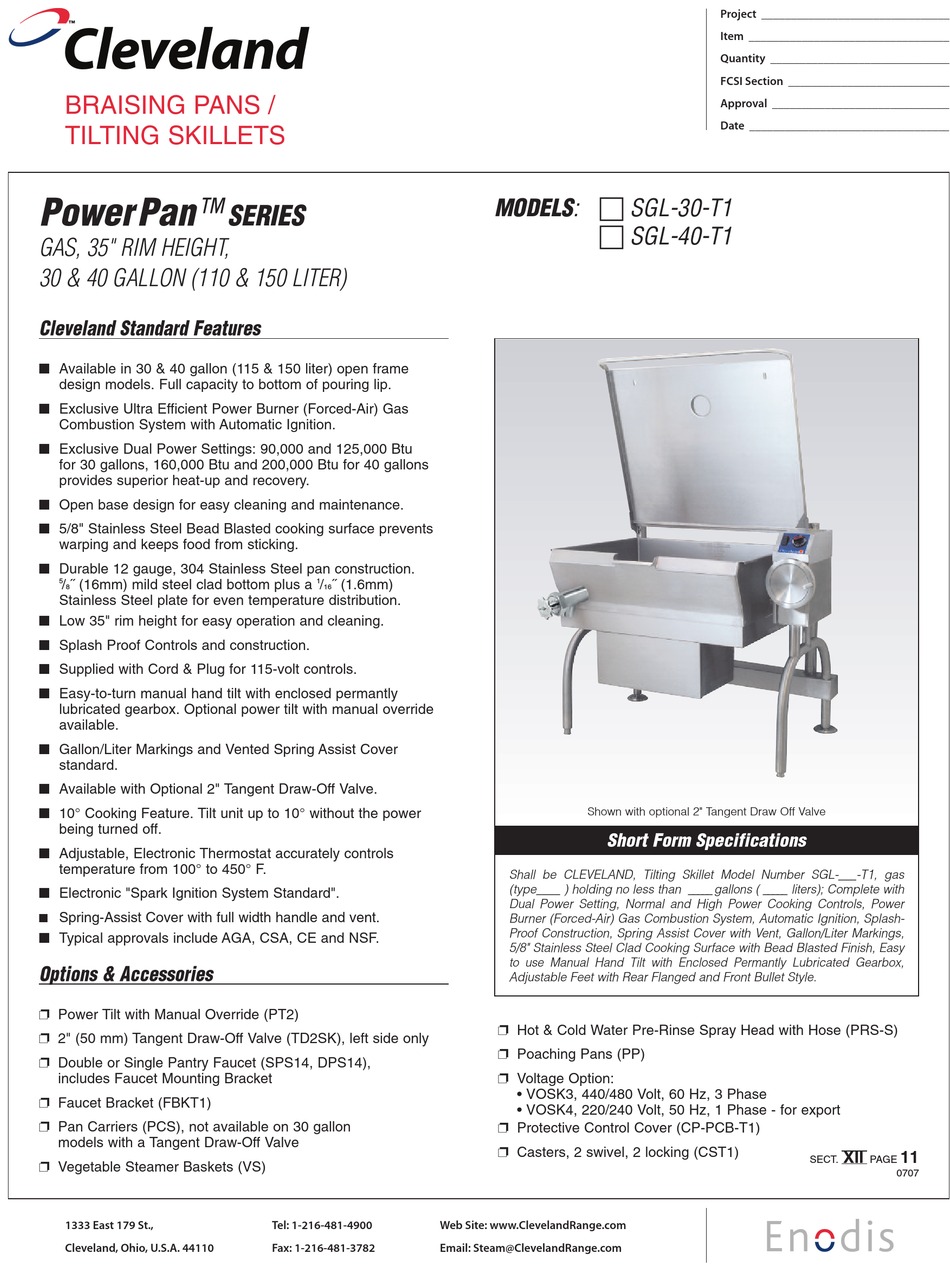

Cleveland PowerPan SGL-30-T1 Specifications

™
Cleveland
BRAISING PANS /
TILTING SKILLETS
PowerPan™
GAS, 35" RIM HEIGHT,
30 & 40 GALLON (110 & 150 LITER)
Cleveland Standard Features
I Available in 30 & 40 gallon (115 & 150 liter) open frame
design models. Full capacity to bottom of pouring lip.
I Exclusive Ultra Efficient Power Burner (Forced-Air) Gas
Combustion System with Automatic Ignition.
I Exclusive Dual Power Settings: 90,000 and 125,000 Btu
for 30 gallons, 160,000 Btu and 200,000 Btu for 40 gallons
provides superior heat-up and recovery.
I Open base design for easy cleaning and maintenance.
I 5/8" Stainless Steel Bead Blasted cooking surface prevents
warping and keeps food from sticking.
I Durable 12 gauge, 304 Stainless Steel pan construction.
5
/ ˝ (16mm) mild steel clad bottom plus a
8
Stainless Steel plate for even temperature distribution.
I Low 35" rim height for easy operation and cleaning.
I Splash Proof Controls and construction.
I Supplied with Cord & Plug for 115-volt controls.
I Easy-to-turn manual hand tilt with enclosed permantly
lubricated gearbox. Optional power tilt with manual override
available.
I Gallon/Liter Markings and Vented Spring Assist Cover
standard.
I Available with Optional 2" Tangent Draw-Off Valve.
I 10° Cooking Feature. Tilt unit up to 10° without the power
being turned off.
I Adjustable, Electronic Thermostat accurately controls
temperature from 100° to 450° F.
I Electronic "Spark Ignition System Standard".
I
Spring-Assist Cover with full width handle and vent.
I Typical approvals include AGA, CSA, CE and NSF.
Options & Accessories
Ë Power Tilt with Manual Override (PT2)
Ë 2" (50 mm) Tangent Draw-Off Valve (TD2SK), left side only
Ë Double or Single Pantry Faucet (SPS14, DPS14),
includes Faucet Mounting Bracket
Ë Faucet Bracket (FBKT1)
Ë Pan Carriers (PCS), not available on 30 gallon
models with a Tangent Draw-Off Valve
Ë Vegetable Steamer Baskets (VS)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
SERIES
1
/ ˝ (1.6mm)
16
Tel: 1-216-481-4900
Fax: 1-216-481-3782
MODELS:

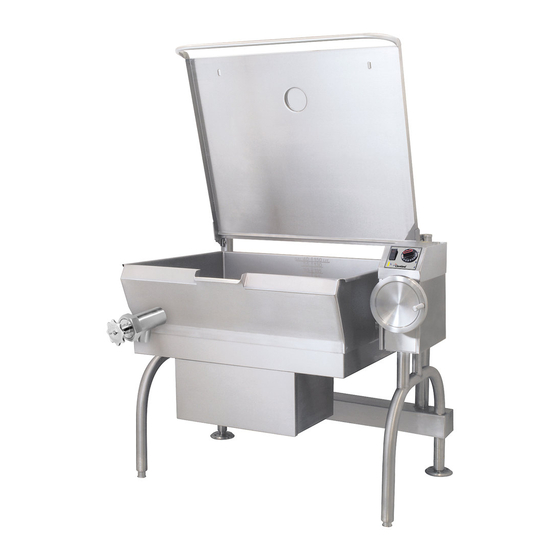

Shown with optional 2" Tangent Draw Off Valve
Short Form Specifications
Shall be CLEVELAND, Tilting Skillet Model Number SGL-___-T1, gas
(type____ ) holding no less than _____ gallons ( _____ liters); Complete with
Dual Power Setting, Normal and High Power Cooking Controls, Power
Burner (Forced-Air) Gas Combustion System, Automatic Ignition, Splash-
Proof Construction, Spring Assist Cover with Vent, Gallon/Liter Markings,
5/8" Stainless Steel Clad Cooking Surface with Bead Blasted Finish, Easy
to use Manual Hand Tilt with Enclosed Permantly Lubricated Gearbox,
Adjustable Feet with Rear Flanged and Front Bullet Style.
Ë Hot & Cold Water Pre-Rinse Spray Head with Hose (PRS-S)
Ë Poaching Pans (PP)
Ë Voltage Option:
• VOSK3, 440/480 Volt, 60 Hz, 3 Phase
• VOSK4, 220/240 Volt, 50 Hz, 1 Phase - for export
Ë Protective Control Cover (CP-PCB-T1)
Ë Casters, 2 swivel, 2 locking (CST1)
Web Site: www.ClevelandRange.com
Email: Steam@ClevelandRange.com
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
SGL-30-T1
SGL-40-T1
SECT.
XII 11
PAGE
0707
