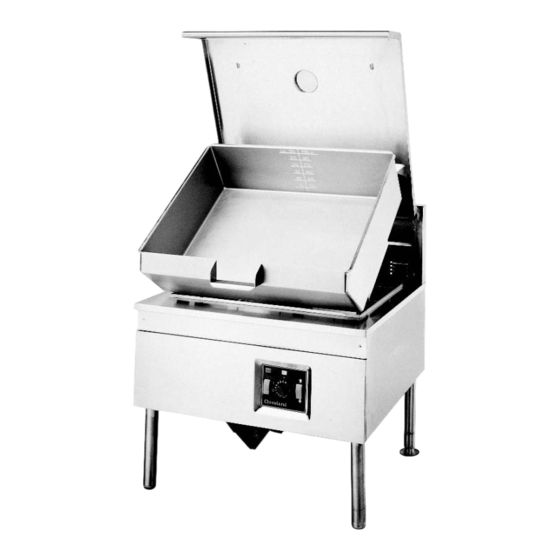

Cleveland SGM-30-TR Operator's Manual

Open base & modular gas skillets

Hide thumbs Also See for SGM-30-TR:

Operator's manual (23 pages)

Brochure (4 pages)

Specifications (9 pages)

Table Of Contents

Quick Links

Download this manual

Operators Manual

OPEN BASE & MODULAR

GAS SKILLETS -

MODELS

SGL-30-TR

SGM-30-TR

SGL-40-TR

SGM-40-TR

™

Cleveland

Enodis

Installation, Operation & Service

1333 East 179th St., Cleveland, Ohio, U.S.A. 44110

Phone: (216) 481-4900 Fax: (216) 481-3782

Visit our web site at www.clevelandrange.com

Skillets

SE95033 Rev. 5

Table of Contents

Need help?

Do you have a question about the SGM-30-TR and is the answer not in the manual?

Questions and answers

Summary of Contents for Cleveland SGM-30-TR

Page 1 Installation, Operation & Service Skillets OPEN BASE & MODULAR GAS SKILLETS - MODELS SGL-30-TR SGM-30-TR SGL-40-TR SGM-40-TR ™ Cleveland 1333 East 179th St., Cleveland, Ohio, U.S.A. 44110 Phone: (216) 481-4900 Fax: (216) 481-3782 Enodis Visit our web site at www.clevelandrange.com SE95033 Rev. 5...
Page 2: For The User
Keep appliance area free and clear from combustibles. Do not obstruct the flow of combustion and ventilation air. All service must be performed by a qualified cleveland range technician. For unit equipped with casters, the installation shall be made with a connector that complies with the Standard for Connectors for Movable Gas Appliances, ANSI Z21.69 or Connectors...
Page 3: Gas Appliances
For your safety DANGER ✘ ✘ Keep hands and utensils away from moving parts and pinch points. IMPORTANT Inspect unit Do not lean Lift lid daily for on or place before proper objects on tilting operation. skillet lip. skillet. CAUTION Wear protective equipment when discharging hot product.
Page 4: Installation
INSTALLATION GENERAL INSPECTION Installation of the unit must be accomplished by Before unpacking visually inspect the unit for evidence qualified installation personnel working to all applicable of damage during shipping. local and national codes. Improper installation of unit If damage is noticed, do not unpack the unit, follow could cause injury or damage.
Page 5: Air Supply
INSTALLATION VENTILATION A gas skillet must be installed in a location in which the KEEP THE APPLIANCE AREA FREE AND CLEAR OF COMBUSTIBLE MATERIALS. facilities for ventilation permit satisfactory combustion of gas and proper venting. Proper ventilation is imperative 1. Carefully remove unit from carton or crate. Remove for good operation of the appliance.
Page 6: Water Connections
WATER CONNECTIONS CLEANING (OPTIONAL) After installation the unit must be thoroughly cleaned and sanitized prior to cooking. A 3/8" NPT cold water line and a 3/8" NPT hot water line are required for the fill faucet. OPERATING INSTRUCTIONS xttwulql CONTROL PANEL ITEM # DESCRIPTION...
Page 7: Start-Up Procedure
To lower frypan, press down on the tilt switch. Manual Tilt Cleveland skillets can also be equipped with the optional manual tilt mechanism for raising and lowering the frypan. To raise frypan, raise the cover and turn the wheel clockwise. To lower frypan, push in on the lever located behind the wheel.
Page 8: Cleaning Instructions
CLEANING INSTRUCTIONS CLEANING INSTRUCTIONS CAUTION 1. Turn unit off. SURFACES MAY 2. Remove drain screen (if applicable). Thoroughly BE EXTREMELY HOT! wash and rinse the screen either in a sink or a dishwasher. CARE AND CLEANING 3. Prepare a warm water and mild detergent solution in the unit.
Page 9: Stainless Steel Equipment Care And Cleaning
STAINLESS STEEL EQUIPMENT CARE AND CLEANING (Suppied courtesy of Nafem. For more information visit their web site at www.nafem.org) Contrary to popular belief, stainless steels ARE susceptible to rusting. 4. Treat your water. Corrosion on metals is everywhere. It is recognized quickly on iron and Though this is not always practical, softening hard water can do much steel as unsightly yellow/orange rust.
Page 10: Service Parts
SERVICE PARTS WARRANTY Our Company supports a worldwide network of Maintenance and Repair Centers. Contact your nearest Maintenance and Repair Centre for replacement parts, service, or information regarding the proper maintenance and repair of your cooking equipment. In order to preserve the various agency safety certification (UL, NSF, ASME/Ntl. Bd., etc.), only factory-supplied replacement parts should be used.
Page 11 HYDRAULIC JACK ASSEMBLIES Hydraulic Jack Assembly KE000772 For units built prior to February 2005 (replaces old Jack #s SK2381000 & SK00403) Hydraulic Jack Assembly KE000523 For units built after February 2005 ITEM NO. PART NO. DESCRIPTION QTY. KE600526 HYDRAULIC CYLINDER ......... . .1 KE600527 PUSH ROD .
Page 12 HYDRAULIC JACK ASSEMBLIES - HAND TILT For units built prior to October 2001 For complete assemblies see HYDRAULIC JACK ASSEMBLIES. ITEM NO. PART NO. DESCRIPTION QTY. 2381000 HYDRAULIC JACK ASSEMBLY ........1 (NO LONGER AVAILABLE, USE KE000772) FA95007-7 RETAINING RING .
Page 13 ACTUATOR ASSEMBLY - POWER TILT (used prior to January, 2000) ITEM NO. PART NO. DESCRIPTION QTY. SK2346100 ACTUATOR ........... . .1 SK2337499 ACTUATOR MOUNTING BRACKET ASSY.
Page 14 ACTUATOR ASSEMBLY - POWER TILT (used after January, 2000) ITEM NO. PART NO. DESCRIPTION QTY. SK2346100 ACTUATOR ASSY., COMPLETE WITH ITEM 2 ......1 KE003242 ACTUATOR ASSY., WITH MANUAL OVERRIDE, COMPLETE WITH ITEMS 2 &...
Page 15 HYDRAULIC TILT ASSEMBLY (added February 2005) KE600452 (Strainer) FI00351 (Bushing) FI05318-1 (Elbow, hose barb) ITEM NO. PART NO. DESCRIPTION QTY. 2379100 HYDRAULIC ADAPTOR ......... . .2 2379600 HYDRAULIC HOSE ASSY .
Page 16: Control Panel
LABEL, CLEVELAND, MANUAL TILT ........
Page 17: Shaft Assembly
SHAFT ASSEMBLY ITEM NO. PART NO. DESCRIPTION QTY. SE00119 THERMOSTAT BOARD ASSEMBLY (INCLUDES 2 - 14) SK2142002 TEMPERATURE SENSOR BOARD SK2159300 INSULATOR, THERMOSTAT SK2498399 POTENTIOMETER SHAFT ASSEMBLY (INCLUDES 5-10) SK2167200 RETAINING RING, SP-NR #R1000-25 SK2167100 WASHER, BOWED/SPRING SK2167300 PANEL BEARING SK2382800 RETAINING RING CLIP SK2167000...
Page 18: Electrical Box
ELECTRICAL BOX ITEM NO. PART NO. DESCRIPTION QTY. KE53838-32 TRANSFORMER - POWER TILT - 110-120V/60 ......1 KE53838-31 TRANSFORMER - POWER TILT - 208-240/60 .
Page 19: Plate Assembly
PLATE ASSEMBLY (used prior to January, 2000) ITEM NO. PART NO. DESCRIPTION QTY. KE55069-7 HI-LIMIT 2353900 BULB CLAMP 2354099 BULB SHIELD ASSY 2345100 RTD SENSOR 2344900 SHIELD LINER 2345000 SHIELD PAN HINGE 13 14 For units with TD Valve ITEM NO. PART NO.
Page 20: Spring Assembly
SPRING ASSEMBLY ITEM NO. PART NO. DESCRIPTION QTY. 2452300 SPRING ............2 2381700 TURNBUCKLE BODY .
Page 21 BURNER BOX ASSEMBLY ITEM NO. PART NO. DESCRIPTION QTY. 2359300 BACK TOP MOUNTING BRACKET ........2 2360101 REAR COMBUSTION SEAL - 40 GAL.
Page 22: Manifold Assembly
MANIFOLD ASSEMBLY ITEM NO. PART NO. DESCRIPTION QTY. 2373100 BURNER (NAT. GAS) ......7 for 30 gal., 10 for 40 gal. KE02410 BURNER (LP GAS) .
Page 23: Maintenance
MAINTENANCE NOTE: ANY MAINTENANCE OR SERVICE INVOLVING TILT MECHANISM DISSASSEMBLY OF COMPONENTS SHOULD BE MADE LUBRICATION BY A QUALIFIED SERVICE TECHNICIAN. ENSURE GAS, ELECTRICAL AND WATER SUPPLY (IF The linear actuator (power tilt models), the hydraulic APPLICABLE) TO THE APPLIANCE ARE SHUT OFF cylinder (manual tilt), and the bronze bushings are all You have purchased the finest commercial cooking self-lubricating and require no lubrication.
