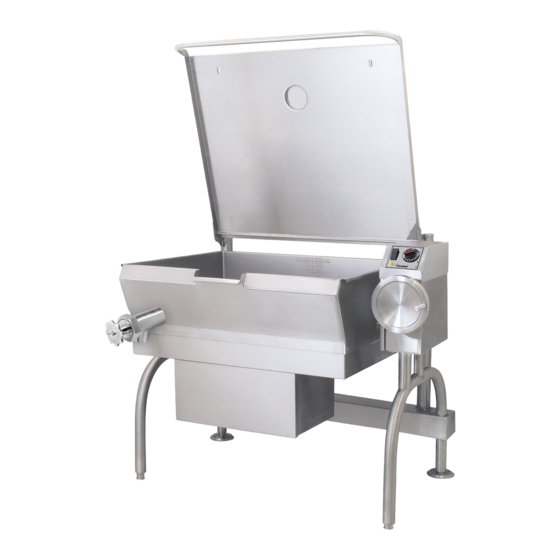

- Page 1 Operators Manual Installation, Operation & Service Gas T1 Skillets MODELS: SGL-30-T1 SGL-40-T1 1333 East 179th St., Cleveland, Ohio, U.S.A. 44110 Enodis Phone: (216) 481-4900 Fax: (216) 481-3782 Visit our web site at www.clevelandrange.com SE95050...
-
Page 2: For The User
YOUR LOCAL GAS SUPPLIER. KEEP APPLIANCE AREA FREE AND CLEAR FROM COMBUSTIBLES. DO NOT OBSTRUCT THE FLOW OF COMBUSTION AND VENTILATION AIR. ALL SERVICE MUST BE PERFORMED BY A QUALIFIED CLEVELAND RANGE TECHNICIAN. RETAIN THIS MANUAL FOR YOUR REFERENCE. FOR THE USER... -
Page 3: Table Of Contents
Installation Operating Instructions Cleaning Instructions Service Parts Maintenance Inspection ..........1 Shipping Damage Instructions. -
Page 4: Installation
INSTALLATION INSPECTION Before unpacking visually inspect the unit for evidence of damage during shipping. If damage is noticed, do not unpack the unit, follow shipping damage instructions. SHIPPING DAMAGE INSTRUCTIONS If shipping damage to the unit is discovered or suspected, observe the following guidelines in preparing a shipping damage claim. -
Page 5: Electrical
ELECTRICAL NOTE: Wiring diagram is located on the underside of the unit's control panel. ENSURE THE ELECTRICAL SUPPLY MATCHES THE UNIT'S REQUIREMENTS AS STATED ON THE RATING LABEL. A cord and plug are supplied with the 115 volt unit. Simply plug the unit into any grounded outlet rated for a minimum of 10 amps. -
Page 6: Specification Drawing
SPECIFICATION DRAWING 51/4" E(combustible 71" 39" 283/4" 125/8" 155/8" A B (PAN SURFACE)120V In 4 oz. servings. Other sizes may be calculated. 41" H C 2 515/16" F181/4"(464mm)24 D12"(305mm)18"(458mm) 35" E(non-combustible VOLTS: 120PHASE: 1AMPS: 10FREQ: 60 HZMODELSGL-30-T1SGL-40-T1A391/8"(994mm)51 1/8"(1299mm)ELECTRICALSUPPLYTYPE: NAT or LPWATER •... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS ITEM # DESCRIPTION HI / OFF / LO Switch Temperature Dial Heat Indicator Light (Yellow) Hand Tilt Wheel Manual Tilt Override Tangent Draw-Off Valve (not shown) Gas Shut Off Valve Faucet Power Indicator Light (Red) 4 4 4 4 General Parts Drawing FUNCTION Center position - power to the unit is OFF. -
Page 8: Operating The Unit
OPERATING THE UNIT Ensure the gas and electrical supply to the unit are in the ON position. FOR YOUR SAFETY: This skillet will automatically shut off the gas supply when pan is raised more than 8°. Before commencing to cook, ensure pan is in the lowered position. -
Page 9: Cleaning Instructions
CLEANING INSTRUCTIONS The best time to clean the skillet is immediately after each use, CARE AND CLEANING Your skillet must be cleaned regularly to maintain its fast, efficient cooking performance, and to ensure its continued safe, reliable operation. WARNING: Do not use chloride base detergents. -
Page 10: Service Parts
SERVICE PARTS WARRANTY Our Company supports a worldwide network of Maintenance and Repair Centers. Contact your nearest Maintenance and Repair Centre for replacement parts, service, or information regarding the proper maintenance and repair of your cooking equipment In order to preserve the various agency safety certification (UL, NSF, ASME/Ntl. Bd., etc.), only factory- supplied replacement parts should be used. -
Page 11: Frame Lid Assembly
FRAME / LID ASSEMBLY 20 21 22 ITEM NO. PART NO. DESCRIPTION SK00392-1 SK00392-2 SK2457192 SK2457193 KE50187-1 SK00394-1 SK2452300 FA95087-1 FA20008 KE53573-1 FA15019-4 FA21501-2 KE00099 KE50249-1 FA31029 FA11054 SK2459299 FA21024 FA31030 FA30055 SK00054 SK2211200 FA95081-1 SK50179 FA30504 FRAME WELDMENT (30 GALLON) ........1 FRAME WELDMENT (40 GALLON) . -
Page 12: Component Plate Assembly - Power Tilt
COMPONENT PLATE ASSEMBLY - POWER TILT ITEM NO. PART NO. SK00411 KE54833-4 KE02185-1 SK50930 F903 FA11504 KE50581 KE50753-10 DESCRIPTION COMPONENT PLATE WELDMENT ........1 SNAP-IN BUSHING . -
Page 13: Gas Train, Trunnion Assemblies
GAS TRAIN, TRUNNION ASSEMBLIES ITEM PART DESCRIPTION GAS TRAIN FI00134 ELBOW ..... . .2 F01518-1 SHUT OFF VALVE ....1 FI00607 NIPPLE . -
Page 14: Tilt Components
TILT COMPONENTS ITEM NO. PART NO. KE51730 FA31010 FA20030 KE51007 FA10140 FA19201 FA95048 FA19177 FA20047 KE00151 KE00279 KE50312 FA11258 FA31029 FA30505-1 KE50441 KE50375 DESCRIPTION TILT SHAFT BEARING ..........1 LOCK WASHER, 3/8 . - Page 15 TILT COMPONENTS (continued) KE50315 FA95005 KE52193 KE52192 KE52191 FA19500-2 FA95008 KE50582 FA95014 KE50583 KE52832-4 KE54829-4 FA11258 FA30505-1 FA21008 KE00508 FA19186 KE50294-1 KE50295-1 FA15018-1 FA19184 SK50047-1 KE53838-25 KE53444 FA11091 KE50473 F900 KE52936-8 KE52936-6 KE51139 SK50945-1 F900 KE50377 KE50376 FA11091 KE50374 FA21008 FA30505-1 KE54833-1 KE50579-1...
-
Page 16: Burner Assemblies
BURNER ASSEMBLY ENLARGED VIEW 16 40 ENLARGED SIDE VIEW ENLARGED VIEW ENLARGED VIEW... - Page 17 BURNER ASSEMBLY ITEM NO. PART NO. SK00399-1 SK00389-1 SK2495500 SK2478800 SK2460300 SK2460700 SK2460500 SK2460400 SK50939-1 SK50919-1 SK2494999 SK2471099 SK00396-1 SK2471200 SK50927-1 10.* SK00397-1 * SEE "GAS IGNITION CONTROL SYSTEM" DRAWING FOR MORE DETAIL SK2463299 SK2460000 SK2460200 SK2476000 SK2480101 SK2480100 SK2488100 SK2491100 SK2473000 SK2491200...
- Page 18 BURNER ASSEMBLY (continued) SK2487800 F900 FA21008 FA31029 FA11258 FA30505-1 SK50399 KE54617-1 KE51916-2 SK50941-1 SK50941-2 FA30505-3 SK2460900 51.* SK00398-1 SK00398-2 * SEE "PILOT ASSEMBLY" DRAWING FOR MORE DETAIL SK2488200 SK2488201 SK2499600 SK2473100 SK2499700 SK2473200 BAYONET, ADAPTER ..........1 PAL NUT .
-
Page 19: Control Box Assembly
CONTROL BOX ASSEMBLY SECTION A - A ITEM NO. PART NO. SK2138700 SK2360700 SK2360701 KE51005 SK2498399 SK2166800 SK2167000 SK2167100 INCLUDES SK2167200 SK2167300 SK2382800 FA21006 FA32022 FA40000-6 SK50903 SK50905-1 SK2142002 SK2159300 SK2491500 SK95063 SK90125-2 SK90125-3 SK90125-2 SK2474102 SECTION B - B DESCRIPTION KNOB ASSEMBLY . -
Page 20: Pilot Assembly
PILOT ASSEMBLY ITEM PART DESCRIPTION SK00398-1 PILOT ASSEMBLY, NATURAL GAS ..1 SK00398-2 PILOT ASSEMBLY, LP ....1 SK2460100 GASKET ......1 SK2477000 IGNITOR/PILOT ASSEMBLY . -
Page 21: 2" Tangent Draw-Off Valve
2" TANGENT DRAW-OFF VALVE ITEM NO. PART NO. 1. - 7. KE50972-B FA95049 KE527551 KE52754 KE52753 KE52752 FA00111 KE52751 DESCRIPTION DRAW-OFF ASSEMBLY ..........1 WING NUT . -
Page 22: Maintenance
MAINTENANCE Any maintenance or service involving disassembly of components should be made by a qualified service technician. Ensure gas, electrical and water supply (if applicable) to the unit are shut off. HINGE ADJUSTMENT INSTRUCTIONS FULLY LIFT COVER TO RELEASE SPRING TENSION SPRING LUBRICATION PROCEDURE... -
Page 23: Spare Parts Lists
B N V 2 1 1 B G S 1 2... -
Page 24: Seqence Of Operations
SEQUENCE OF OPERATIONS When using these instructions refer to the SGL-TI wiring schematic. 115 VAC is sent through the 3 amp fuse to The primary of the 24 VAC transformer 24 VAC is sent from the secondary of the 24VACtransformer to the Hi/Off/Low Switch. Contacts of the RI Blower Relay The optional Power Tilt Circuit With the Hi/Off/Low switch in the Low position. -
Page 25: Spare Parts List
SPARE PARTS LIST PART NO. DESCRIPTION KE50294-1 MERCURY SWITCH .............1 KE53838-25 TRANSFORMER . -
Page 26: Wiring Diagram
WIRING DIAGRAM TRANSFORMER HIGH/OFF/LO SWITCH ELECTRONIC TILT SWITCH RESISTOR ELECTRICAL COMPONENT PART #s FUSE 3A FUSE 1.25A RELAY 1 BLOWER PILOT IGNITOR GAS CONTROL MODULE SK2475300 GAS VALVE (NATURAL) GAS VALVE (LP) TRANSFORMER, 24V AIR SWITCH HIGH/OFF/LO SWITCH HIGH LIMIT MERCURY SWITCH THERMOSTAT SENSOR... -
Page 27: Symbols Library
