Summary of Contents for Pro-Ject Audio Systems Debut PRO

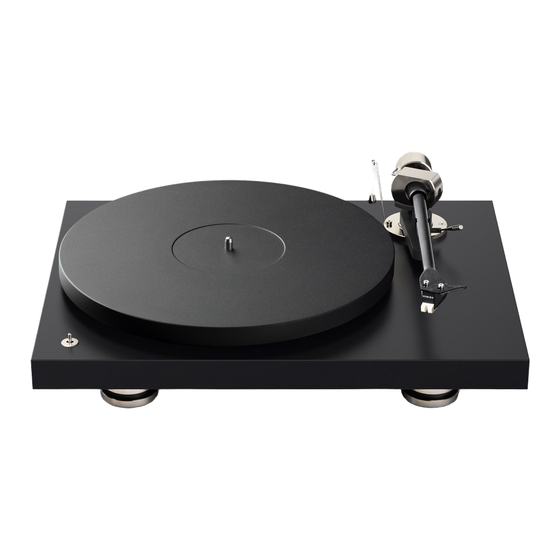

- Page 1 Debut PRO Manual...
- Page 2 INSTRUCTIONS FOR USE Debut PRO...
- Page 3 © Pro-Ject Audio Systems · Pro-Ject Debut Pro · Revision 2021.09.01...
-
Page 4: Controls, Features And Connections
During assembly and adjustment of the deck small parts could be lost if not carefully placed in a suitable receptacle. Before starting to assemble, get familiar with the parts listed above and correspondingly numbered in the technical drawings above. © Pro-Ject Audio Systems · Pro-Ject Debut Pro · Revision 2021.09.01... -
Page 5: Safety Instructions
The result was a high-quality but simple-looking product with great sound at a low price. After the Debut Carbon EVO revolutionized the Debut series in 2020, the Debut PRO raises the bar even higher. We designed not only a new turntable, but also a completely new cartridge. Now, for the 30th anniversary, we are again going back to our roots. - Page 6 The deck is supplied partially disassembled and carefully packaged for safe transport. The Setup Guide, included in the packaging with your Debut PRO, explains the setup process step by step with pictures, so be sure to follow it first and then refer to this guide should you want more detailed explanations. Here, some of the more technical set-up steps are covered in detail and you will gain a lot of important background information which will make you more comfortable with everything your new Debut PRO has to offer.
- Page 7 (also called the VTA – vertical tracking angle). Obviously, we would only recommend this to experienced vinyl enthusiasts as correctly figuring out the VTA setting requires a lot of experience in this case. © Pro-Ject Audio Systems · Pro-Ject Debut Pro · Revision 2021.09.01...
- Page 8 The record player has gold plated female RCA Phono sockets (14) on the back. Use the included Connect it E phono RCA cable to connect your Debut PRO to your amplifier. The cable ends with the yellow markings are plugged into the phono inputs (sometimes also labelled gram, disc or RIAA) on your amplifier. Make sure that the phono input offers correct matching and amplification for the type of cartridge used.
-
Page 9: Mains Power Connection
PRO Info: Power Supply Upgrade Your Debut PRO already has a speed control unit built in which at the same time already acts as a clean power supply. The exact voltage and frequency for the motor are generated by this speed control unit, resulting in the most accurate playback speeds. -
Page 10: Fitting The Lid
So that no motor vibrations reach the pickup, the Debut PRO has the new, proven motor suspension first seen in our Debut Carbon EVO, which is responsible for the perfect decoupling of the motor. -
Page 11: Adjusting The Azimuth
The cartridge needle must be vertical in the record groove in order to trace the groove wall modulations correctly. The cartridge on your Debut PRO that comes pre-adjusted by the factory, is already correctly set up and you do not need to adjust the azimuth anymore! You should check and/or re-adjust the azimuth if you change or upgrade your cartridge. - Page 12 PRO Info: Cartridge, Tonearm and Main Platter Your Debut PRO comes with a new cartridge, specifically developed for the turntable and the new upgrades and features it received compared to the previous Debut iterations. We have always been looking for the best price/performance ratio, with perfect manufacturing quality and „Made in Europe“.
-
Page 13: Adjusting The Vertical Tracking Angle (Vta)
In any case, it is a good idea to renew the lubrication after 3 years at the latest. We recommend using Lube it to lubricate your platter bearing. Always disconnect the record player from the mains power supply as a precaution before maintenance! © Pro-Ject Audio Systems · Pro-Ject Debut Pro · Revision 2021.09.01... - Page 14 Recommended load capacitance 150-300 pF Compliance/stylus type 12µm/mN – elliptical Recommended tracking force 20mN (2g) Tracking angle 20° Internal impedance, DC resistance 750 Ohm Internal inductance 450 mH Weight 7.2g © Pro-Ject Audio Systems · Pro-Ject Debut Pro · Revision 2021.09.01...
-
Page 15: Warranty
This guide was produced by: Pro-Ject Audio Systems changes to the technical specification without prior Copyright 2021. All rights reserved. © notice as deemed necessary to uphold the ongoing process of technical development. © Pro-Ject Audio Systems · Pro-Ject Debut Pro · Revision 2021.09.01... - Page 16 © Pro-Ject Audio Systems · Pro-Ject Debut Pro · Revision 2021.09.01...
