Pro-Ject Audio Systems Debut Carbon EVO Setup Manual

Debut Carbon Evo

Setup Guide

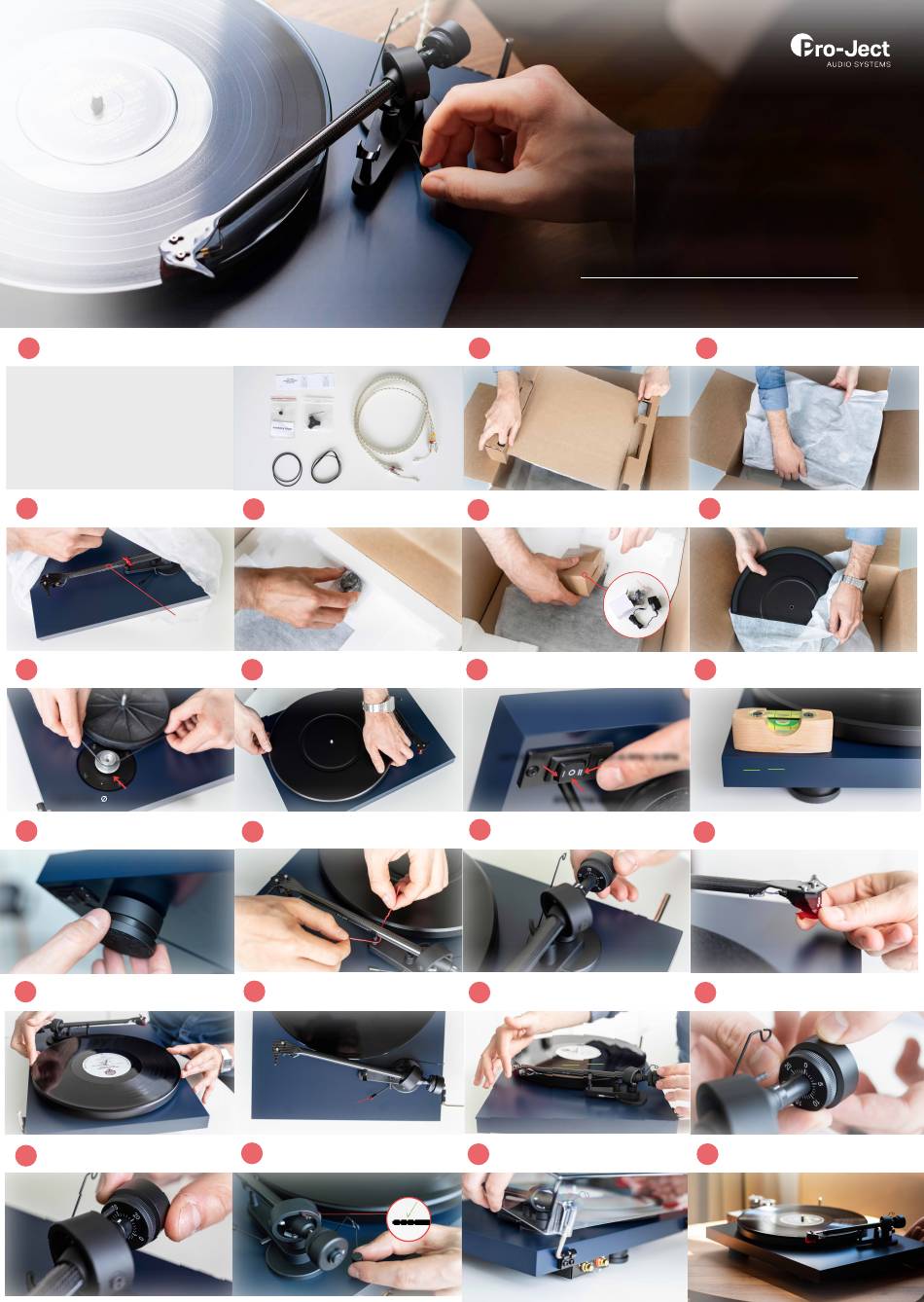

1

Unpack all items from accessory bag.

a) Anti Skating Weight
b) Adapter for 7" singles
c) Connect it E RCA cable
d) Round belt for 78 RPM
e) Standard flat belt for 33/45 RPM
4
Carefully remove the protection covering.
Tonearm is fragile!
8 Put the drive belt on the pulley
and sub-platter.
Large pulley for round belt (78 RPM)
12
If necessary, level the turntable by
adjusting the feet.
16
Put a record on the platter.
20 Turn the whole counterweight counter-
clockwise until the scale reads 18 - 20.
a) b) c)
d)
e)
5
Unpack the counterweight.
9
Put the platter on the turntable.
13
Remove tonearm twist tie.
17 Place the tonearm between platter
and armrest.
Lower the tonearm with the lift.
21
Put the loop of the Anti Skating Weight in
the second groove on the tonearm post.

Getting started:

• Make sure to have enough space to unpack your turntable.
• Always unpack and setup in a clean enviroment.
• Please Do NOT throw away the packaging! If you need a
service or want to return your product, please send them in
the original packaging including all inserts. In case of any
damage in another packaging your dealer cannot guaran-
tee a full refund.
• complete manual:
www.project-audio.com/en/product/debut-carbon-evo
2
Remove dust cover carton from the box.
6
Unpack the power supply.
10
Use the rocker switch to select the
playback speed.
LEFT: 33 RPM RIGHT: 45 RPM / 78 RPM
STOPS THE MOTOR
14
Put the counterweight in place.
Balance the tonearm so it stays level by
18
turning the counterweight forwards and
backwards on the rod.
Balance the tonearm so it stays level by
turning the counterweight forwards and
backwards on the rod.
0°
Unpack Dust Cover and put it on the
22
turntable.
3
Lift the wrapped turntable out of the box.
7
Unpack the platter.
11 The turntable should always be placed on
a flat surface. Check with a spirit level.
0°
15
Remove the needle protection cover.
Turn the front dial of the counterweight
19
(not the whole weight) so the '0' is in line
with marker at the back of the tonearm.
23 Connect to your hifi-system and enjoy
your music!
