Cleveland AWC1 Specifications

™
Cleveland
OPTIONS & ACCESSORIES
AUTOMATIC WATER COOLING

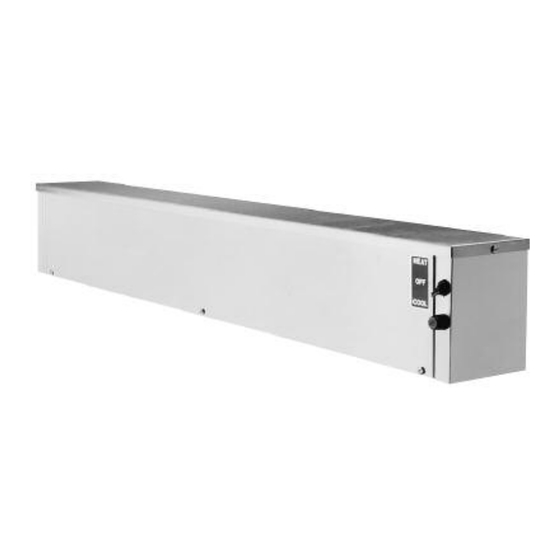

AWC1 CABINET & WALL MOUNTED
AWC2 CONSOLE MOUNTED
FOR ALL DIRECT STEAM FLOOR MODEL KETTLES & MIXER KETTLES
Cleveland Standard Features
I
Automatically injects cold water into the steam jacket,
slowing down the cooking process.
I
All exterior surfaces are type 304 Stainless Steel
I
115 Volt, 60 Cycle, 1 Phase standard. 220 Volt, 60 cycle,
1 Phase optional. Cord and Plug supplied by others.
I
3
All connections are a ⁄ ˝ NPT.
4
I
Standard with six 9 ⁄ ˝ holes for wall mounting.
3 2
I
Internal Components contain:
3
(1) ⁄ ˝ Steam Solenoid Valve,
4
3
(3) ⁄ ˝ Water Solenoid Valves,
4
(1) 3 ⁄ ˝ Check Valve,
4
(1) 220/115V Transformer (220 volt optional)
(1) On/Off Switch.
Options & Accessories
* For Console Mounted Models AWC2:
Ë Requires Console Mounting Option (CM)
Ë Available only on KDL floor model kettles and MKDL
mixer kettles.
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com
Wall or Stand Mounted Models:
MODEL AWC1
Console Mounted Models:*
MODEL AWC2
Short Form Specifications
Shall be CLEVELAND, Model AWC ____ Automatic Water
Cooling; 115 Volt, 60 Cycle, 1 Phase; All exterior surfaces are
type 304 Stainless Steel. Internal Components contain:
(1) 3⁄4˝ Steam Solenoid Valve, (3) 3⁄4˝ Water Solenoid Valves, (1)
3⁄4˝ Check Valve, (1) 220/115V Transformer (220 volt optional)
and (1) On/Off Switch.
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
XIII
SECT. PAGE
0707
3
