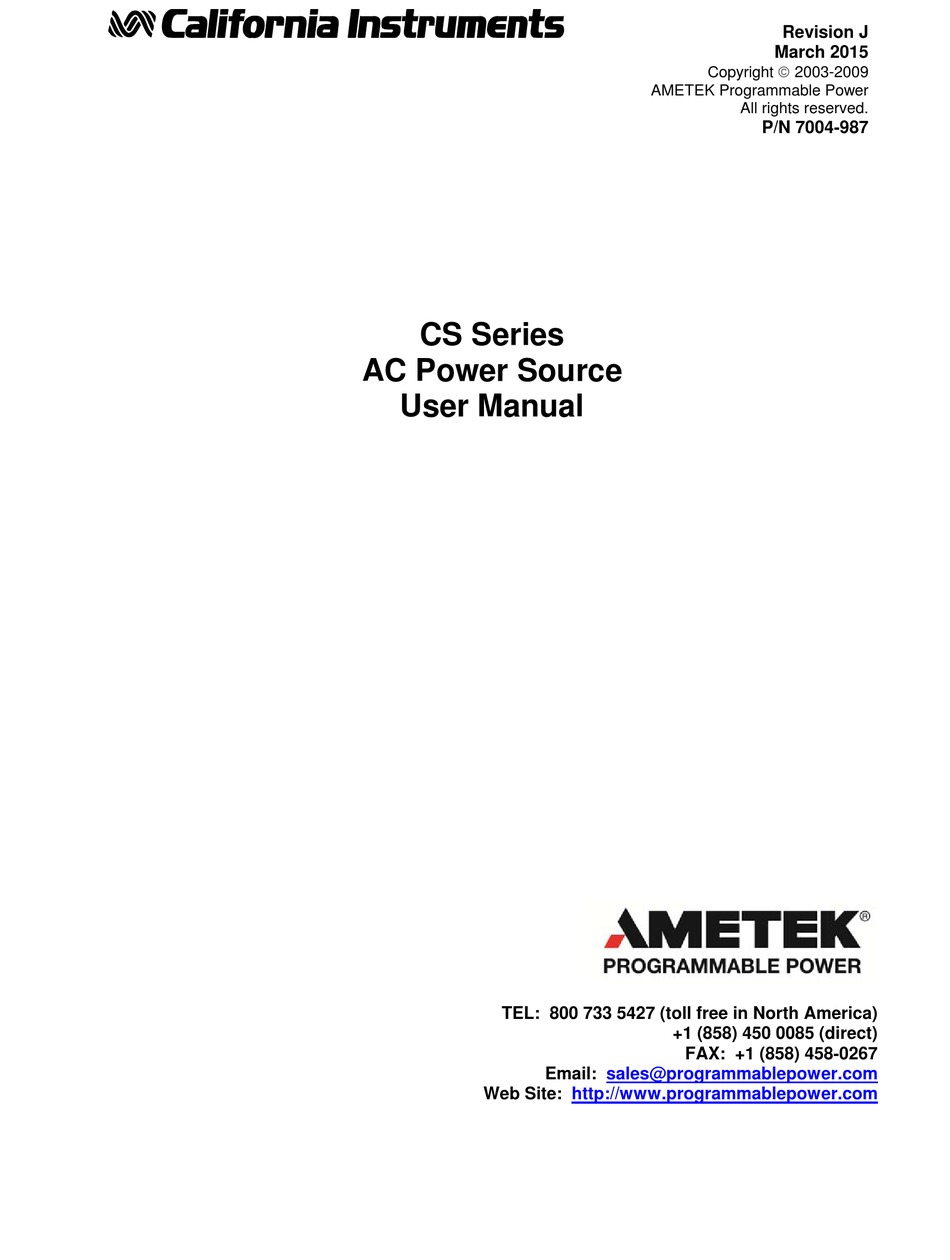

Page 1 Revision J March 2015 Copyright  2003-2009 AMETEK Programmable Power All rights reserved. P/N 7004-987 CS Series AC Power Source User Manual TEL: 800 733 5427 (toll free in North America) +1 (858) 450 0085 (direct) FAX: +1 (858) 458-0267 Email: sales@programmablepower.com...
Page 2 User Manual – Rev J CS Series Refers to: CS Series AC Power Sources Models: Single chassis: 3000CS, 4500CS Multiple chassis: 9000CS/2, 13500CS/3, 18000CS Manual revision: G. Copyright © 2005-2009 AMETEK Programmable Power division. California Instruments...
Page 3 CS Series About AMETEK AMETEK Programmable Power, Inc., a Division of AMETEK, Inc., is a global leader in the design and manufacture of precision, programmable power supplies for R&D, test and measurement, process control, power bus simulation and power conditioning applications across diverse industrial segments.
Page 4 Neither AMETEK Programmable Power Inc., San Diego, California, USA, nor any of the subsidiary sales organizations can accept any responsibility for personnel, material or inconsequential injury, loss or damage that results from improper use of the equipment and accessories.
Page 5 User Manual – Rev J CS Series SAFETY SYMBOLS California Instruments...
Page 6 AMETEK will, at its expense, deliver the repaired or replaced Product or parts to the Buyer. Any warranty of AMETEK will not apply if the Buyer is in default under the Purchase Order Agreement or where the Product or any part thereof: is damaged by misuse, accident, negligence or failure to maintain the same as •...
Page 7: Table Of Contents
Electrical ............................11 Mechanical ............................22 Environmental ..........................22 Front Panel Controls ........................23 Special Features ..........................24 Available Options – CS Series ......................24 3. Unpacking and Installation ......................29 Unpacking ............................29 Power Requirements ........................29 Mechanical Installation........................29 AC Input Wiring - INPUT ........................
Page 8 User Manual – Rev J CS Series Advanced Troubleshooting......................100 Factory Assistance ........................100 Fuses ............................100 Replaceable Parts ......................... 101 8. Error Messages .......................... 103 Index ..............................109 California Instruments...
Page 9 Figure 2-7: Load Impedance / Current Rating Chart in 3 phase mode, 270 Range..........18 Figure 2-8: Load Impedance / Current Rating Chart in 1 phase mode, 270 Range..........18 Figure 3-1: Rear Panel Connector Locations – CS Series ................... 30 Figure 3-2: 9000CS/2 Output Wiring ........................33 Figure 3-3: 9000CS/2 Wiring diagram - 3 Phase mode ..................
Page 10: Introduction
This CS Series User manual (P/N 7004-987) contains information on the installation, operation, calibration and maintenance of the CS Series AC current sources. The terms AC power source and AC current source may be used in this manual to refer to a CS Series unit. General Description...
Page 11: Specifications
User Manual – Rev J CS Series 2. Specifications Specifications shown are valid over an ambient temperature range of 25 ± 5° C and apply after a 30 minute warm-up time. Unless otherwise noted, all specifications are per phase for sine wave output into a resistive load.
Page 12 1 Phase mode: ± (0.1% + 0.15 A) from .5A to FS Distortion THD Standard: < 1.2 % [60 - 500 Hz] CVR = Compliance Voltage Range. The distortion specification for the CS Series applies at full-scale current, full resistive load conditions, using 30Khz LP Filter on distortion analyzer. California Instruments...
Page 13 DC Offset Current: 0.0 A Output Coupling Transformer coupled Output Impedance (Z) >100k Maximum Peak Current – CS Series, data shown for 135 compliance voltage range. Model 3000CS / 4500CS Single Phase Mode: 133 A Max. Peak Three Phase Mode: 44.4 A...
Page 14 202Vrms @ 7.4A Programming 0.1 Vrms resolution: Voltage Limit mode Programmable, CC or CV mode Power – CS Series (total power for all phases, either range, at full scale voltage) Model 3000CS 4500CS Single Phase Mode 3.0 KVA 4.5 KVA Three Phase Mode (per 1.0 KVA...
Page 15: Figure 2-1: Voltage / Current Rating Chart In 3 Phase Mode, 135 Range
User Manual – Rev J CS Series 2.1.3 Voltage versus Current Rating Charts - CS Series, 135 Range Figure 2-1: Voltage / Current Rating Chart in 3 phase mode, 135 Range. Figure 2-2: Voltage / Current Rating Chart in 1 phase mode, 135 Range.
Page 16: Figure 2-3: Voltage / Current Rating Chart In 3 Phase Mode, 270 Range
User Manual – Rev J CS Series 2.1.4 Voltage versus Current Rating Charts - CS Series, 270 Range Figure 2-3: Voltage / Current Rating Chart in 3 phase mode, 270 Range. Figure 2-4: Voltage / Current Rating Chart in 1 phase mode, 270 Range.
Page 17: Figure 2-5: Load Impedance / Current Rating Chart In 3 Phase Mode, 135 Range
CS Series 2.1.5 Load Impedance versus Current Rating Charts - CS Series, 135 Range Figure 2-5: Load Impedance / Current Rating Chart in 3 phase mode, 135 Range. Figure 2-6: Load Impedance / Current Rating Chart in 1 phase mode, 135 Range.
Page 18: Figure 2-7: Load Impedance / Current Rating Chart In 3 Phase Mode, 270 Range
CS Series 2.1.6 Load Impedance versus Current Rating Charts - CS Series, 135 Range Figure 2-7: Load Impedance / Current Rating Chart in 3 phase mode, 270 Range. Figure 2-8: Load Impedance / Current Rating Chart in 1 phase mode, 270 Range.
Page 19 User Manual – Rev J CS Series 2.1.7 AC Measurements Measurement specifications apply to single chassis CS Series AC source in single or three- phase mode. See notes for other models and configurations. Parameter Range Resolution Accuracy (±) 1 Phase Mode...
Page 20 User Manual – Rev J CS Series chassis configurations, current accuracy specifications are times the number of chassis. 2.1.9 System Specification Parameter Specification Trigger Input: External trigger source input. Requires TTL level input signal. Triggers on negative edge. Response time 80 - 100 μs.
Page 21 User Manual – Rev J CS Series Parameter Specification Output Over Voltage: Adjustable level constant voltage mode with programmable set point. Open Circuit: Automatic shutdown. Over temperature: Automatic shutdown. California Instruments...
Page 22: Mechanical
User Manual – Rev J CS Series Mechanical Parameter Specification Dimensions: Height: 10.5 inches (26.7 cm) 3000CS / 4500CS 21 inches (53.4 cm) 9000CS/2 31.5 inches (80.1 cm) 13500CS/3 42 inches (106.8 cm) 18000CS/4 Depth: 23 inches (58.4 cm) Width: 19 inches (48.3 cm)
Page 23: Front Panel Controls
User Manual – Rev J CS Series Parameter Specification Altitude: < 2000 meters < 6000 feet Relative Humidity: 0-95 % RAH, non-condensing maximum for temperatures up to 31°C decreasing linearly to 50% at 40°C. Indoor Use Only Vibration: Designed to meet NSTA project 1A transportation levels.
Page 24: Special Features
AC power source transient system. This requires the trigger source to be set to EXT. This can only be done over the bus. Available Options – CS Series Output Options Auxiliary outputs, 5 VAC and 26 VAC, 400 Hz. (Output D and E) Low frequency option.
Page 25 2.6.1 -AX Option CS Series - Supplemental Specifications Specifications for -AX auxiliary output voltage option on the CS units are listed below. This output is available on the Phase D and E terminal strip. There is no external sense connection for the –AX outputs.
Page 26 CS Series 2.6.2 -LKM and -LKS Options CS Series - Supplemental Specifications The Clock and Lock option enables two or more independent CS power systems to be phase synchronized to each other. One system (-LKM) acts as the master, the other(s) (-LKS) as auxiliaries. The –LKS units are synced to the –LKM unit.
Page 27 User Manual – Rev J CS Series 2.6.4 –HF Option CS Series – Supplemental Specifications Specifications for the CS units with the –HF frequency range option installed are the same as the standard CS unit except where noted below. Frequency Range...
Page 28 User Manual – Rev J CS Series 2.6.5 –LNS Option CS Series - Supplemental Specifications The –LNS(AC Line Sync) option allows the output frequency of the AC source to be synchronized to the AC line frequency used to feed the power source.
Page 29: Unpacking And Installation
Mechanical Installation The CS Series AC power sources can be used free standing on a solid surface or mounted in a 19” instrument cabinet. The units are fan cooled, drawing air in from the side and exhausting at the rear.
Page 30: Figure 3-1: Rear Panel Connector Locations - Cs Series
ØC ØA HI ØB HI TO AUXILIARY INTERFACE ØC HI NEUT NEUT J6 EXT SENSE SERIAL TAG INPUT CLOCK øA VOLTAGE INPUT øB RATING LOCK øC INPUT SAFETY COVER Figure 3-1: Rear Panel Connector Locations – CS Series California Instruments...
Page 31: Ac Input Wiring - Input
4500CS and Auxiliary 4500CS must be connected together. See Figure 3-2. On CS Series, the phase outputs are labeled øA, øB, øC and NEUT. The common (neutral) connection (if needed) can be made on the same terminal block labeled NEUT. If the power source is operated in single-phase mode, all power is available from the øA output connection.
Page 32: Table 3-1: Output Terminal Connections
User Manual – Rev J CS Series Note: The output of the power source is isolated from the input line and floating with respect to chassis ground. If needed, either side (HI or LO) may be grounded. The output power cables must be large enough to prevent a total voltage drop exceeding the programmed voltage limit or 135 Vrms across the terminals of the current source.
Page 33: Figure 3-2: 9000Cs/2 Output Wiring
User Manual – Rev J CS Series 3.5.3 Multi-chassis Output Wiring Diagram Figure 3-2 shows the required output connections for a 9000CS/2 two chassis system (rear-view perspective). Always turn off AC mains power to the 9000CS/2 by turning off the circuit breakers on both the Master and Auxiliary 4500CS power source before making or changing output connections.
Page 34: Figure 3-3: 9000Cs/2 Wiring Diagram - 3 Phase Mode
User Manual – Rev J CS Series Figure 3-3: 9000CS/2 Wiring diagram - 3 Phase mode California Instruments...
Page 35: Figure 3-4: 13500Cs/3 Wiring Diagram - 3 Phase Mode
User Manual – Rev J CS Series Figure 3-4: 13500CS/3 Wiring diagram - 3 Phase mode California Instruments...
Page 36: Figure 3-5: 18000Cs/4 Wiring Diagram - 3 Phase Mode
User Manual – Rev J CS Series Figure 3-5: 18000CS/4 Wiring diagram - 3 Phase mode California Instruments...
Page 37: Connectors - Rear Panel
User Manual – Rev J CS Series Connectors - Rear Panel A number of connectors are located along the top rear covers. These connectors are in a recessed area to protect them from shipment damage. A summary of available connectors is provided in the table below.
Page 38: Table 3-3: Ac Input Terminal Block Connection Description
RPV(N/A) Remote programming voltage. DC voltage input 0 to +10 VDC for 0 to full-scale output voltage programming.(RPV option) Table 3-4: SMA Connectors – CS Series 3.6.3 BNC Connectors (-LKM / -LKS options) BNC connectors. Functions are called out on rear panel decal. Table 3-5 shows connections for the optional -LKM and -LKS clock and lock mode.
Page 39: Table 3-5: Bnc Connectors
MUST be connected for correct operation unless internal sense mode is selected. Sense connections must be made at the MASTER 4500CS unit for a multi-box CS system. Description - CS Series Phase A sense Hi Phase B sense Hi...
Page 40: Figure 3-6: Usb Connector Pin Orientation
In this configuration, only the Master power source has a built-in controller and front panel. The System Interface cable provided in the CS Series ship kit (CI P/N 250778) MUST be used to connect both chassis as shown in Figure 3-2.
Page 41: Table 3-9: Rj45 Lan Connector Pin Out
For information on how to set up a network connection or a direct PC connection using the LAN interface, refer to the CS Series Programming Manual P/N 7004-988 distributed in Adobe PDF format on CD ROM CIC496.
Page 42: Basic Initial Functional Test
User Manual – Rev J CS Series Basic Initial Functional Test CAUTION: Work carefully when performing these tests; hazardous voltages are present on the input and output during this test. Note: Never program a current source with the output terminals open-circuit. A no load is a short circuit.
Page 43: Figure 3-7: Functional Test Setup
1.1 Ohms, 12 KW 13500CS/3 2.28 Ohms, 6 KW rating 0.76 Ohms, 18 KW rating 18000CS/4 1.71 Ohms, 8 KW rating 0.43 Ohms, 24 KW rating Table 3-10: Full Load Resistance – CS Series RS232C IEEE-488 TRIGGER FSTB IN1 AUX OUTPUT OUTPUT TB1 ØA...
Page 44: Multi-Box Configurations (-Mb Option)
User Manual – Rev J CS Series Multi-box Configurations (-MB Option) Multi-box configurations are identical to a two or three box system except each chassis (box) has its own controller. When connected as a multi-chassis system through the system interface, the controller in the auxiliary chassis is disabled and the entire system is controlled from the master unit.
Page 45: Clock And Lock Mode (-Lkm/-Lks Option)
Clock and lock mode operation of two or more CS AC power sources or a Lx/Ls Series AC voltage source with a CS Series Current source is available only if the –LKM and –LKS options have been installed at the factory. With these options installed, it is possible to lock an auxiliary unit (-LKS) to a master unit (-LKM).
Page 46: Figure 3-8: Clock And Lock Connections
User Manual – Rev J CS Series WARNING RS232C DO NOT CONNECT IEEE-488 OUTPUTS OF -LKM TRIGGER & -LKS UNITS FSTB IN1 TOGETHER AUX OUTPUT OUTPUT TB1 ØA MASTER 26VAC -LKM ØB TO MASTER INTERFACE SENSE ØC 5VAC ØA ØB TO AUXILIARY INTERFACE ØC...
Page 47: Remote Control Interfaces And Csgui Program
Connector pin out information is provided in sections 3.6.5, 3.6.7 and 3.6.8 of this manual. A Windows XP/2000 graphical user interface program (CSGui, P/N CIC913) is provided on CD ROM CIC496. The CSGui may be used to control the CS Series units from a PC Figure 3-9: CSGui Windows application software Note: Use of the USB port to control more than one power source from a single PC is not recommended, as communication may not be reliable.
Page 48 User Manual – Rev J CS Series amplifiers. Note that only one RPV input is available so in three phase modes, all three outputs will track the same RPV DC input signal. A 0 to +10 VDC signal will provide a 0 to full-scale voltage output on the selected voltage range.
Page 49: Front Panel Operation
Line input. As such, the circuit breaker acts as a power on/off switch for the CS Series unit. When the input current rating of the CS Series AC power source is exceeded or an input over voltage condition occurs, the circuit breaker will trip.
Page 50 Pressing the Phase button repeatedly will cycle through phase A, B, C and ALL PHASES. The ØA, ØB, ØC indicators correspond to outputs ØA, ØB and ØC on the CS Series rear panel. If all three phase selection LED's are lit, all three phases are selected and changes made to voltage and current limit settings will apply to all three phases.
Page 51: Figure 4-1: Shuttle Knob
MODE DESCRIPTION IMMEDIATE mode Any time the ENTER key is pressed, the CS Series returns to its normal mode of operation. In this mode, changes made with the shuttle knob will take immediate effect. The IMMEDIATE mode is useful for slewing output values such as current and frequency and observing the effect on the load.
Page 52: Figure 4-2: Menu Keys
4.1.5 Menu Keys The CS Series is operated through a series of menus. These menus can be reached by using a number of menu keys located along the bottom of the LCD display and the UP/DOWN cursors keys. Several menus have more than two entries. Since the LCD display only has two display lines, additional entries may not be visible and can be reached only by scrolling up or down using the UP/DOWN cursor keys.
Page 53 User Manual – Rev J CS Series 4.1.6 Cursor Keys The cursor keys can be used to scroll through a list of menu entries.: CURSOR UP (  ) The UP key moves the cursor position upwards one position to the previous available cursor position.
Page 54: Figure 4-3: Measurement Screen
4.1.9 LCD Display The LCD display of the CS Series power source provides information on instrument settings and also guides the user through the various menus. A sample of the measurement display screen is shown in Figure 4-3. Due to the two line (x 20 characters) display limitation of the LCD display, most menus are accessed by scrolling through two or more entries.
Page 55: Menu Structure
CS Series Menu Structure The next few pages show a map of the available menus in the CS Series. All menus can be reached by repeatedly pressing the Menu key. Frequently used menus have a short cut key that provides direct access. Examples of such menus are Program and Measurements. In any case, there are never more than two levels of menus although some menus may be spread across more than one screen.
Page 56 User Manual – Rev J CS Series The power source is now ready to be used. California Instruments...
Page 57 User Manual – Rev J CS Series 4.2.2 Top Level Menus The following top-level menu choices can be accessed using the Menu key: ENTRY DESCRIPTION PROGRAM The PROGRAM menu allows primary output parameters such as current, frequency, compliance voltage, and waveform shape to be changed.
Page 58 User Manual – Rev J CS Series 4.2.3 Menu Tree Menu Structure Lx/Ls Series LEVEL 1 LEVEL 2 LEVEL 1 LEVEL 2 PROGRAM CURR 0.0A REGISTERS SAVE REG # CONTROL FREQ 400.0HZ CONFIGURATION RECALL REG # VRANGE 135.0V ADDRESS PHASE 0.0°...
Page 59: Table 4-1: Menu Tree
User Manual – Rev J CS Series CURR LANGUAGE CSLEW #12 1e+06 ADVANCE MODE FREQ #12 400.0 CLOCK/LOC FSLEW #12 10.00 MIL704 FUNC #12 DO160 PAUSE#12 MS704 COMPV#12 20.0 PHASE#12 ETIME/TEMP ETIME 21:20:03 DWELL #12 10.00 LIMITS TEMP 25:33°C TTLT LIM LVOLT 135.0V...
Page 60: Figure 4-4: Program Menu
User Manual – Rev J CS Series 4.2.4 PROGRAM Menu Figure 4-4: PROGRAM Menu The PROGRAM menu is shown in Figure 4-4. It can be reached in one of two ways: 1. by selecting the Menu key, selecting the PROGRAM entry and pressing the Enter key.
Page 61: Figure 4-5: Control Menus
AC line sync. Requires –LNS option. CLOCK Selects internal or external clock source. The CS Series controller uses an open-air crystal time base with an accuracy of 50 ppm. The external clock mode is used to support the –LKS option. For use as an auxiliary unit in a clock and lock system, this field must be set to EXT.
Page 62 User Manual – Rev J CS Series ENTRY DESCRIPTION information. MODE Power on clock mode. The following two modes can be selected. STAND Power up in INT (internal) clock mode for stand- alone operation. This is the only mode for CS unit without the –LKS option.
Page 63 User Manual – Rev J CS Series ENTRY DESCRIPTION Note that even in SINGLE-phase mode, a voltage is present at øB and øC terminals. Connect only a single-phase load when operating in single-phase mode. ST PHASE Selects the start phase angle for output changes made to either current or frequency.
Page 64: Figure 4-6: Measurement Screen
Figure 4-6: MEASUREMENT Screen The three Measurement screens available on the CS Series are not menus in that no changes can be made anywhere. Instead, these three screens provide load parameter readouts. The...
Page 65 User Manual – Rev J CS Series ENTRY DESCRIPTION with the RMS voltage in the denominator. Note that some definitions of THD use the fundamental component (H1) of the voltage as the denominator. CS units can be programmed to use the fundamental component as the denominator.
Page 66 User Manual – Rev J CS Series 4.2.7 TRANSIENT Menu The transient menu is used to program and execute user-defined output sequences. These output sequences are defined as a sequential list of voltage and/or current settings that can be executed in a time controlled manner.
Page 67 User Manual – Rev J CS Series ENTRY DESCRIPTION Immediate mode. The transient is started from the front panel using the ENTER key. Bus mode. The transient system is started by a bus command or a group execute trigger (GET).
Page 68 User Manual – Rev J CS Series Transient List Points data entry method. Transient list points are numbered sequentially from 0 through 99 and executed in this order. Each list point or list entry has 6 parameters as shown in the table above. To enter list point data, the Keypad is used to increment or decrement the parameter value.
Page 69 User Manual – Rev J CS Series 4.2.8 REGISTERS Menu The registers menu provides access to the non-voltage setup storage of the power source. A total of 8 front panel setups can be stored in registers numbered from 0 through 7. Each register except register 0 can hold the complete front panel setup, including the programmed transient list.
Page 70 User Manual – Rev J CS Series 4.2.9 CONIGURATION Menu The configuration menu may be used to configure various aspects of the instrument such as the serial port, IEEE-488/GPIB address and the power-on settings of the supply. ENTRY DESCRIPTION ADDRESS...
Page 71 User Manual – Rev J CS Series ENTRY DESCRIPTION Alternatively, the auxiliary mode may be detected if the system interface cable at the rear panel is plugged in and connected to another CS unit. In AUX mode, the AC source is controlled by another unit (Master unit).
Page 72 User Manual – Rev J CS Series ENTRY DESCRIPTION shown as six hexadecimal numbers separated by a colon, e.g. 00:20:4A:9A:02:FD. Note that the leading ‘0’ is never visible due to the maximum number of LCD characters per line. Note: If the MAC Address displayed is...
Page 73 User Manual – Rev J CS Series California Instruments...
Page 74 User Manual – Rev J CS Series 4.2.10 CALIBRATION Menus The measurement calibration menu can be used to perform routine calibration of the internal measurement system. The recommended calibration interval is 12 months. To enter the calibration screens, the calibration password must be entered first.
Page 75 Standard SCPI command language. ADVANCE Standard on all CS Series models. MODE Standard on all CS Series models. Allows the output to be switched between single and three phase modes of operation. CLOCK/LOC Clock and lock is an option. If no –LKM option is installed, this field will show N/A.
Page 76 Displays low compliance voltage range value. Range HVOLT High Voltage Displays low compliance voltage range value. Range On CS Series with only one compliance voltage range, both Low and High Limit are set to same value. LIM LFREQ Low Frequency Displays minimum available output frequency.
Page 77: Output Programming
User Manual – Rev J CS Series ENTRY DESCRIPTION In three-phase mode, available current is three times limit shown. For multi-chassis configuration, limit field still shows current per chassis and phase. PHASE (C) Phase Setting Displays phase angle for phase C. Valid values are 120 for three-phase or mode configuration, 0 for single-phase only configuration.
Page 78 User Manual – Rev J CS Series To change the output frequency: Counter Clock Clock wise wise DECR INCR 1. Place the cursor on the FREQ entry 2. Rotate the shuttle knob clockwise to increase the value, counterclockwise to decrease the value or use the keypad to enter a value and press the Enter key.
Page 79: Waveform Management
For most AC applications, a sine wave shape is used. The sine wave is one of the standard waveforms provided on all CS Series models. This standard sine wave is always available and is the default waveform at power-on. Two more standard waveforms are available, square and clipped.
Page 80: Figure 4-8: Selecting Waveforms For Single Phase Or All Phases
The CS controller supports up to 50 user defined waveforms in addition to the 3 standard waveforms. Custom waveforms cannot be created from the front panel of the CS Series. Rather, they have to be downloaded through the IEEE-488, RS232C, LAN or USB interface.
Page 81 14.8 Arms as this still falls within the same peak voltage limitation of the AC source. If the CS Series is used over the bus, the “:CURR? MAX” query command can be used to determine the maximum allowable RMS voltage for the selected waveform. Using the returned value as part of a program will prevent range errors.
Page 82: Measurements
The measurement system on the CS Series uses a digital data acquisition system with a 96 Ks/sec sampling rate and 16 KHz bandwidth. This means that higher frequency components of the measured signal are filtered out.
Page 83: Harmonic Analysis
User Manual – Rev J CS Series above this cutoff frequency will not be reflected in the CS Series measurements. When using an external measurement reference, this may account for discrepancies in readings. Harmonic Analysis The CS Series controller offers advanced power analyzer measurement capabilities. These functions may be accessed from the Meas screen.
Page 84 User Manual – Rev J CS Series 4.7.4 Pulse Transients Pulse transients let you program the output to a specified value for a predetermined amount of time. At the end of the Pulse transient, the output current returns to its previous value.
Page 85: Figure 4-10: Switching Waveforms In A Transient List
User Manual – Rev J CS Series 4.7.7 Waveforms Function List The FUNCTION field available in each transient list event setup menu may be used to dynamically switch waveforms during transient execution. This allows different waveforms to be used during transient execution. Waveforms may be switched without the output of the source being turned off.
Page 86: Setting The Power-On Initialization Values
User Manual – Rev J CS Series 1. Press the Menu key repeatedly until the REGISTERS / CONFIGURATION menu is displayed. 2. Move the cursor to the REGISTERS entry and press the ENTER key. 3. The cursor will default to the SAVE REGISTER # position. Enter a number from 1 through 15 and press the ENTER key.
Page 87: Remote Inhibit Function
User Manual – Rev J CS Series Remote Inhibit Function The remote inhibit input on the rear panel can be used to disable the output of the AC source. This SMC input takes either a low level TTL signal or a contact closure. The mode of operation can be programmed over the remote control interface using the OUTP:RI:MODE command.
Page 88: Principle Of Operation
The keyboard/display assembly is assembly A9 and is mounted to the front panel. If the CS system is used over one of the remote control interfaces, the keyboard functions can be locked out by asserting the REMOTE state. See the CS Series Programming Manual (P/N 7004-988) for details.
Page 89 User Manual – Rev J CS Series CAUTION VOLTAGES UP TO 480 VAC AND 500 VDC ARE PRESENT IN CERTAIN SECTIONS OF THIS POWER SOURCE. THIS EQUIPMENT GENERATES POTENTIALLY LETHAL VOLTAGES. DEATH ON CONTACT MAY RESULT IF PERSONNEL FAIL TO OBSERVE SAFETY PRECAUTIONS.
Page 90: Calibration
The Routine Calibration should be performed every 12 months. Non-routine Calibration is only required if a related assembly is replaced or if the periodic calibration is unsuccessful. Calibration of the CS Series can be performed from the front panel or over the bus. This section covers calibration from the front panel.
Page 91: Voltage Measurement Calibration
Otherwise, enter the same password as indicated above. Voltage Measurement Calibration The CS Series controller measures voltage and current by digitizing both voltage and current waveforms on each available output phase. This data is subsequently processed and used to calculate all measurement parameters such as VRMS, IRMS, Power, VA, Frequency etc.
Page 92: Current Measurement Calibration
100 mV represents 1 Amp. Note that multi-chassis CS series will require the use of a 10 mOhm shunt, especially in single- phase mode. Check the max power rating of the current shunt used to avoid damage to the shunt used.
Page 93: Phase Offset Calibration
The phase offsets for phase B and C can be calibrated using the OUTPUT CALIBRATION screen. The same calibration can be done over the IEEE-488, RS232C or USB bus if needed. Refer to the CS Series programming manual (P/N 7004-988) for command syntax on bus calibration.
Page 94: Non-Routine Output Gain Calibration
User Manual – Rev J CS Series 4. Adjust the calibration value so the output phase angle is calibrated. Press the ENTER key to save the calibration. Repeat step 1) through 4) for the Phase C output. Non-Routine Output Gain Calibration...
Page 95: Non-Routine Distortion Adjustment
User Manual – Rev J CS Series 3. Select this function by pressing the cursor until the arrow on the right side of the display point to OUTP CAL. Press the ENTER key. 4. A Calibration Password (CAL PWORD) will be required. The password will be the value of the high voltage range.
Page 96 User Manual – Rev J CS Series MODEL LOAD PROGRAM MODEL LOAD PROGRAM 20 Ω 3000Cs 1.0 A 12 Ω 6.0 Ω 4500Cs 10 A 1.0 A 9000Cs/2 20 A 1.0 A 4.0 Ω 3.0 Ω 13500Cs/3 1.0 A 18000Cs/4 40 A 1.0 A...
Page 97: Service
User Manual – Rev J CS Series 7. Service Cleaning The exterior of the power source may be cleaned with a cloth dampened with a mild detergent and wrung out. Disconnect mains power to the source before cleaning. Do not spray water or other cleaning agents directly on the power source.
Page 98 User Manual – Rev J CS Series 7.3.3 Overload Light is On CAUSE SOLUTION Unit is overloaded Remove overload or check CL setting 7.3.4 Distorted Output CAUSE SOLUTION Power source is grossly overloaded. Reduce load The crest factor of the load exceeds 3:1.
Page 99: Isolating Amplifier Failures In Multi-Box Systems
User Manual – Rev J CS Series Isolating amplifier failures in multi-box systems A self-test can be performed over the bus by sending the *TST? query command. The self-test will run until the first error is encountered and terminate. The response to the query will either be the first error encountered or 0 is no error was found.
Page 100: Advanced Troubleshooting
User Manual – Rev J CS Series Advanced Troubleshooting. WARNING: Do not connect 400-480V into the 208-240V unit, the result could be a severely damaged unit. CAUTION: VOLTAGES UP TO 400 VAC AND 450 VDC ARE PRESENT IN CERTAIN SECTIONS OF THIS POWER SOURCE.
Page 101: Replaceable Parts
User Manual – Rev J CS Series Replaceable Parts In order to ensure prompt, accurate service, please provide the following information, when applicable for each replacement part ordered. a. Model number and serial number of the instrument. b. Argantix part number for the sub-assembly where the component is located. (California Instruments PART #) c.
Page 102: Table 7-2: Replaceable Parts And Assemblies
User Manual – Rev J CS Series REF # PART # DESCRIPTION MNF, P/N 241183 Fan, 6" 24 VDC Rotron, JQ24B4 NMB, 5920PL-05W- B50-D00 EBM, 6424 208 V Input Models (-208) 7004-706-1 DC Power Supply 270193 Fuse, 7A / 250V SB...
Page 103: Error Messages
User Manual – Rev J CS Series 8. Error Messages Any errors that occur during operation from either the front panel or the remote control interface will result in error messages. Error messages are displayed on the LCD display. They are also stored in the error message queue from which they can be queried using the SYST:ERR? Query.
Page 104 User Manual – Rev J CS Series Number Message String Cause Remedy -168 "Block data not allowed" Block data was sent. Check programming manual for correct command syntax -200 "Execution error" Command could not Command may be inconsistent with be executed mode of operation.
Page 105 User Manual – Rev J CS Series Number Message String Cause Remedy -300 "Device specific error" Hardware related Check hardware for proper operation. error -311 "Memory error" Waveform memory May be the result of incomplete user- checksum error. defined waveform download. Check interface and try downloading waveform again.
Page 106 User Manual – Rev J CS Series Number Message String Cause Remedy "Voltage self test error, No. 3/C amplifier in Contact CI service department at output 3 Master source has no support@programmablepower.com output during Self- test "Current self test error, No.
Page 107 User Manual – Rev J CS Series Number Message String Cause Remedy "Measurement Measurement data overrange" out of range. "Output buffer overrun" Too much data in Check receive mode on application output buffer. program. Program is not reading data sent by AC source.
Page 108: Table 8-1: Error Messages
User Manual – Rev J CS Series Number Message String Cause Remedy "Clock and sync must be Operation not Switch to internal sync. (Default) internal" possible with external clock "Input buffer full" Too much data Break up data in smaller blocks.
Page 109: Index
User Manual – Rev J CS Series Index ........... 22 factory Acoustic Noise address default power on setting ......82 GPIB ............68 Finish ............. 22 paint IEEE ............. 68 ..........13 Frequency Range front panel ............48 state ............. 60 lock ............
Page 110 User Manual – Rev J CS Series Setup ............46 ............20 RS232C MAC Address ..........40 maintenance ............ 93 Material self-test ............54 ............22 chassis sense .............. 93 -MB Option ............43 wiring ............30 Meas key ............51 Set key ............
Page 111 User Manual – Rev J CS Series voltage rating ........... 28 Wiring AC input ............30 .............. 22 Weight CS Series...
