Printed Matter No. 9834 4398 01
Publication Date 2020-03-25
Valid from Serial No. A2410001

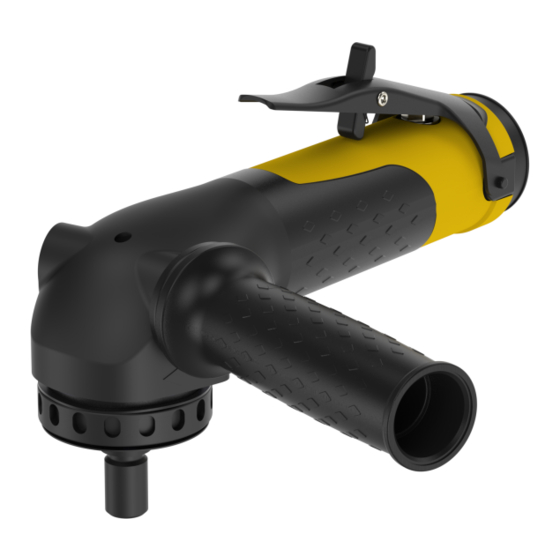

LSV39 S066-M14
(6600 r/min)
(6600 rpm)
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
LSV39 S066-M14
8423013306
WARNING
Product Instructions
Sander
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlas Copco LSV39 S066-M14
Summary of Contents for Atlas Copco LSV39 S066-M14
- Page 1 LSV39 S066-M14 Printed Matter No. 9834 4398 01 Sander Publication Date 2020-03-25 Valid from Serial No. A2410001 Product Instructions LSV39 S066-M14 8423013306 (6600 r/min) (6600 rpm) WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
- Page 2 LSV39 S066-M14 8 Nm (5.9 ftlb) L = 900 mm (35") (Turbo 13) Ø13 mm (1/2") 6.3 bar (90 psig) 6600 r/m 15 Nm (11.1 ftlb) 5 Nm (3.7 ftlb) © Atlas Copco Industrial Technique AB - 9834 4398 01...
-
Page 3: Table Of Contents
Free Speed Check................ 14 Operating the Tool................ 15 Service ........................ 16 Maintenance Instructions................ 16 General Service and Maintenance Safety ........... 16 Service Recommendations.............. 16 Overhaul .................... 16 Replacement of Vanes ................ 16 Lubrication Instructions................... 17 Rust Protection and Cleaning.............. 17 © Atlas Copco Industrial Technique AB - 9834 4398 01... - Page 4 Lubrication Guide ................ 17 Troubleshooting.................... 18 Troubleshooting .................... 18 Recycling ....................... 20 Environmental Regulations................ 20 Recycling Information .................. 20 © Atlas Copco Industrial Technique AB - 9834 4398 01...
-
Page 5: Product Information
■ Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the warranty. ■ To avoid damage or destruction of tool parts, service the tool according to the recommended mainte- nance schedules and follow the correct instructions. -
Page 6: Servaid
For further Technical Information, please contact your local Atlas Copco representative. Safety Data Sheets MSDS/SDS The Safety Data Sheets describe the chemical products sold by Atlas Copco. Please consult the Atlas Copco website for more information www.atlascopco.com/sds. Country of Origin For the Country of Origin, please refer to the information on the product label. -
Page 7: Technical Product Data
Spindle locking button Locking the spindle to facilitate fastening of the wheel. Spindle For fastening of the wheel. Technical Product Data Technical Product Data can be found on either ServAid, or the Atlas Copco website. Please visit: https://servaid.atlascopco.com or www.atlascopco.com. Service Overview Overhaul The tool should be examined regularly at six-month intervals. -
Page 8: Service Recommendations
If the product is not working properly, take it out of service and inspect it. If no detailed information about preventive maintenance is included, follow these general guide- lines: ■ Clean appropriate parts accurately ■ Replace any defective or worn parts © Atlas Copco Industrial Technique AB - 9834 4398 01... -
Page 9: Installation
Air Quality ■ For optimum performance and maximum product life we recommend the use of compressed air with a maximum dew point of +10°C (50°F). We also recommend to install an Atlas Copco refrigeration type air dryer. ■ Use a separate air filter which removes solid particles larger than 30 microns and more than 90% of liquid water. -
Page 10: Visual Inspection - Air Installation
Look for any damage that can compromise the safety of the tool. Installation Overview Legend to page 2 Recommended torque Hose length Hose diameter Max working air pressure Max free speed Recommended torque Recommended torque Spindle thread © Atlas Copco Industrial Technique AB - 9834 4398 01... -
Page 11: Operation
Always wear protective gloves when changing accessories or when making repairs. ► The table below shows the configuration option for a pad with applicable attachment parts. © Atlas Copco Industrial Technique AB - 9834 4398 01... -
Page 12: Lever Assembly Options
Tighten the adapter using a 21 mm socket and torque wrench. Tighten the trigger pin bushing using a 10 mm socket and a torque wrench. Attach the lever in the opposite position. © Atlas Copco Industrial Technique AB - 9834 4398 01... - Page 13 LSV39 S066-M14 Operation © Atlas Copco Industrial Technique AB - 9834 4398 01...
-
Page 14: Fitting Of Support Handle
Do a daily free speed check with a tachometer. Always do a free speed check of the tool after ser- vice. This check should be done with the sanding equipment detached. The free speed must not be more than the rated speed marked on the tool. © Atlas Copco Industrial Technique AB - 9834 4398 01... -
Page 15: Operating The Tool
WARNING Risk of Damage and Injury Rotating parts may cause damage and injury Make sure that the tool is switched off and has stopped rotating before putting it down. ► © Atlas Copco Industrial Technique AB - 9834 4398 01... -
Page 16: Service
Replace the vanes in the motor when a power drop of the tool is experienced. If the vanes are not re- placed in time other motor parts may be damaged. For increased life length of the vanes use an oil lubri- cator to dose oil into the air inlet. © Atlas Copco Industrial Technique AB - 9834 4398 01... -
Page 17: Lubrication Instructions
OBEEn UF 1 Esso Beacon EP2 Rembrandt EP2 Mobil Mobilegrease XHP 222 NLG2 Klüber Lub. Klübersynth UH 1 14-151 Texaco Multifak EP2 Molykote BR2 Plus Grease for angle gears Rhenus LKR03 © Atlas Copco Industrial Technique AB - 9834 4398 01... -
Page 18: Troubleshooting
Too little grease in angle gear Refill correct amount of grease reg- ularly. Loose oil plug and spindle lock Tighten oil plug or spindle lock Worn or damaged seals Damaged o-rings © Atlas Copco Industrial Technique AB - 9834 4398 01... - Page 19 Too little grease in gear housing Damaged gear Damaged spindle Bad noise from gears Worn bearings * This service must only be done by authorized workshop or qualified service technician. © Atlas Copco Industrial Technique AB - 9834 4398 01...
-
Page 20: Recycling
Part Recycle as Housing Metal, Aluminium Insulation sleeve Plastics, Other, TPU Vane motor Metal, Steel* Spindle complete Metal, Steel Wheel guard Metal, Steel End cover Metal, Steel Screws Metal, Steel © Atlas Copco Industrial Technique AB - 9834 4398 01... - Page 21 Metal, Brass Inlet Metal, Steel Lever complete Metal, Steel Adapter Metal, Steel *The vanes in the product contains PTFE, the normal health and safety recommendations concerning PTFE must be observed. © Atlas Copco Industrial Technique AB - 9834 4398 01...
- Page 24 Original instructions © Copyright 2020, Atlas Copco Industrial Technique AB. All rights reserved. Any unauthorized use or copying of the contents or part thereof is prohibited. Atlas Copco Industrial This applies in particular to trademarks, model denominations, part numbers Technique AB and drawings.
