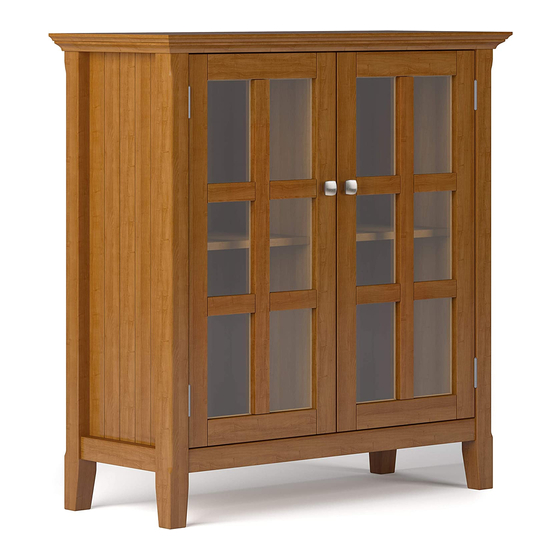

- Page 1 SIMP HOME L I F E B Y D E S I G N ACADIAN / NORMANDY / BRUNSWICK MEDIUM STORAGE CABINET MODEL # AXREG007-HB 1/16...
- Page 2 SIMP HOME L I F E B Y D E S I G N Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 4: Care And Maintenance
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXREG007-HB PARTS DESCRIPTION LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 CABINET SHELF BOTTOM SHELF CENTRE SUPPORT QTY 4 QTY 1 QTY 1 Warning Label LEFT BACK PANEL RIGHT BACK PANEL LEFT DOOR RIGHT DOOR QTY 1 QTY 1 QTY 1... -
Page 6: Hardware Description
PRE-ASSEMBLY INFORMATION MODEL # AXREG007-HB HARDWARE DESCRIPTION CAM LOCK PIN ALLEN KEY SCREW CAM LOCK ALLEN KEY M6 X 30 mm QTY 9 QTY 1 QTY 9 PHILLIPS SCREW PHILLIPS SCREW ROUND HEAD PHILLIPS SCREW M4 X 15 mm M3 X 12 mm M3 X 15 mm QTY 20 QTY 8... - Page 7 COMPONENTS – KEY DIAGRAM MODEL # AXREG007-HB 7/16...
- Page 8 ASSEMBLY MODEL # AXREG007-HB STEP 1 NOTE: The screwdriver is not included in the hardware pack. 1. Insert 4 Dowels 10 into guide holes on Bottom Shelf D . 2. Use rubber mallet to tap Dowels 10 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 9 ASSEMBLY MODEL # AXREG007-HB STEP 2 1. Attach Centre Support E to Bottom Shelf D using Allen Key Screws 1 through guide holes. 2. Use Allen Key 3 to tighten. Do not over-tighten. 9/16...
- Page 10 ASSEMBLY MODEL # AXREG007-HB STEP 3 1. Attach 3 Cam Lock Pins 2 into pre-drilled at the bottom of Top A ( at center ). 2. Align Cam Lock Pins with guide holes on Center Support E and attach Center Support E . 3.
- Page 11 ASSEMBLY MODEL # AXREG007-HB Triangle ruler STEP 4 NOTE: The triangle ruler is not included in the hardware pack. Adjust the cabinet frame before assembling the back panels. STEP 5 Note: The back of the cabinet frame does not have pre-drilled holes to attach the back panels. Warning Label 1.
- Page 12 ASSEMBLY MODEL # AXREG007-HB Last Step ( after adjust the door ) First Step STEP 6 1. Attach hinges on Doors FL , FR to Sides BL , BR using Phillips Screws 4 into pre-drill holes: - Using Phillips screwdriver to attach Screws 4 at middle hole of hinges for both top & bottom hinges.
- Page 13 ASSEMBLY MODEL # AXREG007-HB STEP 7 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use 4 Shelf Supports 9 for each Shelf C in desired location. 2. 2 Shelf Supports 9 may be used on back top of each Shelf C as a tipping restraint. 13/16...
- Page 14 FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. STEP NOTE: The screwdriver is not included in the hardware pack.
- Page 15 FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
-
Page 16: Warranty
L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase.
