Simpli Home AXWELL3-005-60 Instruction Booklet

Acadian / normandy / brunswick 60 inch tv media stand
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

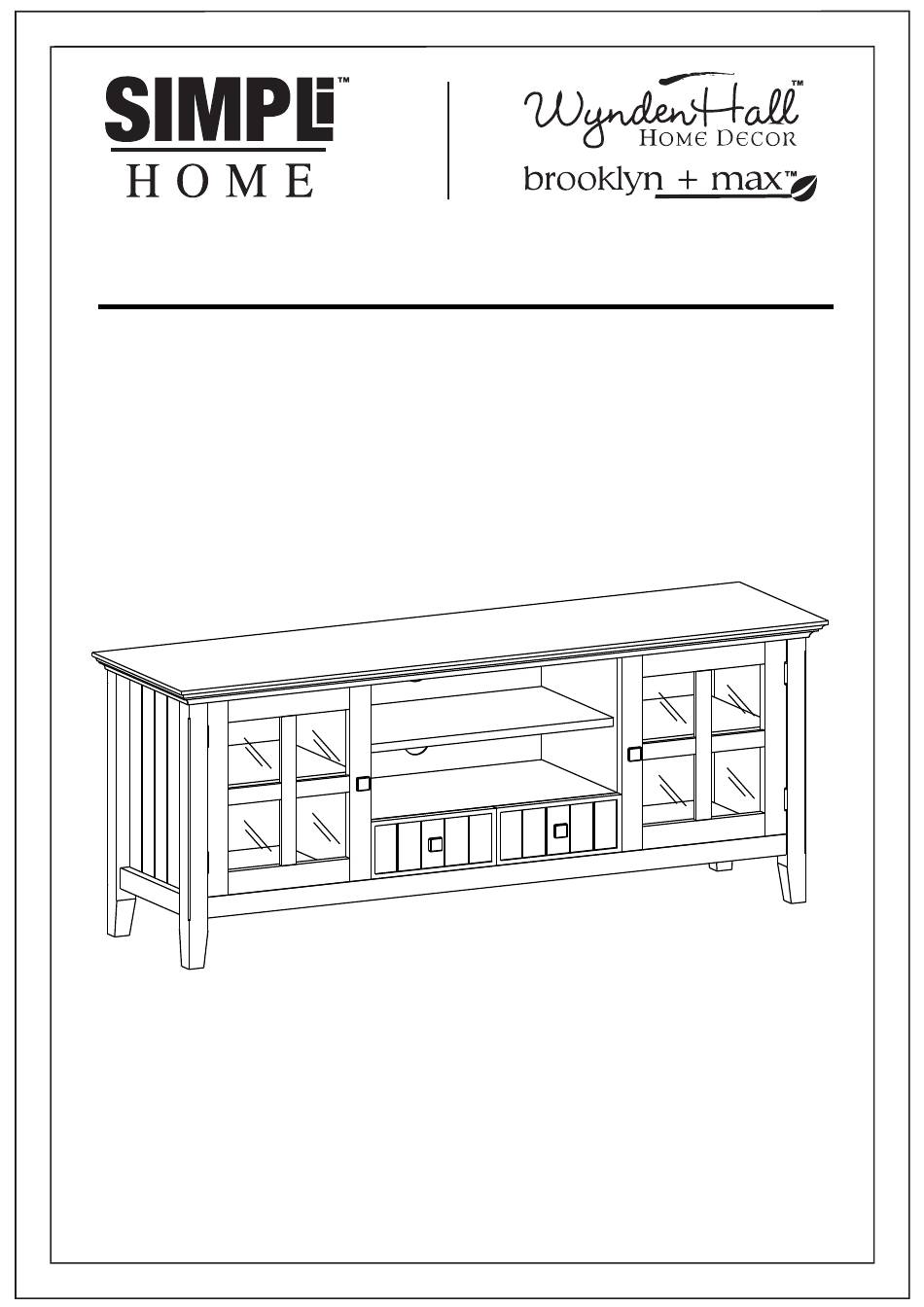

ACADIAN / NORMANDY / BRUNSWICK
60 INCH TV MEDIA STAND
MODEL AXWELL3-005-60
#
1/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXWELL3-005-60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simpli Home AXWELL3-005-60

Summary of Contents for Simpli Home AXWELL3-005-60

  • Page 1 ACADIAN / NORMANDY / BRUNSWICK 60 INCH TV MEDIA STAND MODEL AXWELL3-005-60 1/20...
  • Page 2 DO NOT RETURN FOR REPLACEMENT PARTS OR OTHER INQUIRIES PLEASE CONTACT US AT: simpli-home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET 2/20...

  • Page 3: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.

  • Page 4: Pre-Assembly Information

    PRE-ASSEMBLY INFORMATION MODEL # AXWELL3-005-60 PARTS DESCRIPTION SIDES DIVIDER QTY 1 QTY 1 PAIR QTY 1 PAIR SMALL DIVIDER BOTTOM SHELF CENTRE SHELF QTY 1 QTY 1 QTY 1 SMALL SHELF DOORS LARGE SHELF QTY 1 QTY 2 QTY 1 PAIR...

  • Page 5: Hardware Description

    PRE-ASSEMBLY INFORMATION MODEL # AXWELL3-005-60 HARDWARE DESCRIPTION CAM LOCK PIN WOOD DOWEL ALLEN KEY SCREW M6 X 30 mm CAM LOCK 8 X 30 mm ALLEN KEY QTY 23 QTY 14 QTY 1 QTY 29 PHILLIPS SHORT PHILLIPS SCREW PHILLIPS...
  • Page 6 COMPONENTS – KEY DIAGRAM MODEL # AXWELL3-005-60 6/20...
  • Page 7 ASSEMBLY MODEL # AXWELL3-005-60 STEP 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front L . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides M. 3. Insert 2 Cam Locks 2 into pre-drilled holes on each Drawer Side M.
  • Page 8 ASSEMBLY MODEL # AXWELL3-005-60 STEP 3 1. Align Drawer Back N with Drawer Bottom O and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through pre-drilled holes on each Side M . 3. Use Allen Key 4 to tighten screws. Do not over-tighten.
  • Page 9 ASSEMBLY MODEL # AXWELL3-005-60 STEP 5 1. Attach 3 Cam Lock Pins 2 to each Divider C into guide holes. 2. Align and insert Cam Lock Pins on Dividers C into pre-drilled holes on Centre Shelf F . 3. Place 6 Cam Locks 2 into pre-drilled holes on Centre Shelf F .
  • Page 10 ASSEMBLY MODEL # AXWELL3-005-60 STEP 7 1. Insert 2 Dowels 3 into pre-drilled holes on each Divider C and Small Divider D . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of Dowels should be exposed.
  • Page 11 ASSEMBLY MODEL # AXWELL3-005-60 STEP 8 1. Insert 2 Dowels 3 into pre-drilled holes on each Side B . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of Dowels should be exposed. 3. Attach 3 Cam Lock Pins 2 to each Side B into guide holes.
  • Page 12 ASSEMBLY MODEL # AXWELL3-005-60 STEP 9 1. Insert 2 Dowels 3 into top corners of each Side B . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of Dowels should be exposed. 3. Align pre-drilled holes bottom corners of Top A with Dowels 3 on Side B .
  • Page 13 ASSEMBLY MODEL # AXWELL3-005-60 STEP 10 1. Attach Bottom Support Leg K to Bottom Shelf E using 4 Phillips Screws 9 . 2. Use Phillips screwdriver to tighten screws. Do not over-tighten. 13/20...
  • Page 14 ASSEMBLY MODEL # AXWELL3-005-60 STEP 11 1. Attach Back Panels J to Back of cabinet using Phillips Screws Round Head 5 into pre-drilled guide holes. 2. Use Phillips screwdriver to tighten screws. Do not over-tighten. 14/20...
  • Page 15 ASSEMBLY MODEL # AXWELL3-005-60 STEP 12 1. Attach Hinges on Doors I to Sides B using Phillips Screws 7 into pre-drilled guide holes. 2. Attach Magnet Plates 11 to bottom corner of Doors I using Phillips Screws 8 . into guide holes on Doors I .
  • Page 16 ASSEMBLY MODEL # AXWELL3-005-60 STEP 13 1. Use 4 Shelf Supports 6 for each Shelf G & H in desired location. 2. 2 Shelf Supports 6 may be used on back top of each Shelf G & H as a tipping restraint.
  • Page 17 ASSEMBLY MODEL # AXWELL3-005-60 STEP 14 STEP 15 STEPS 14 & 15 1. To attach Tipping Restraint 12 , follow instructions on Tipping Restraint package. 17/20...

  • Page 18: Warranty

    WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
  • Page 19 Question, problems, missing parts? Before returning please email Customer Support at simpli-home.com/customer-support or call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 5 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings 19/20...
  • Page 20 Upload an image of our furniture in your home with a short review to our facebook page and have a chance to Win your choice of any one of Simpli Home furniture pieces Free!!! www.facebook.com/simplihomefurnishings (draws monthly – shipping included)
