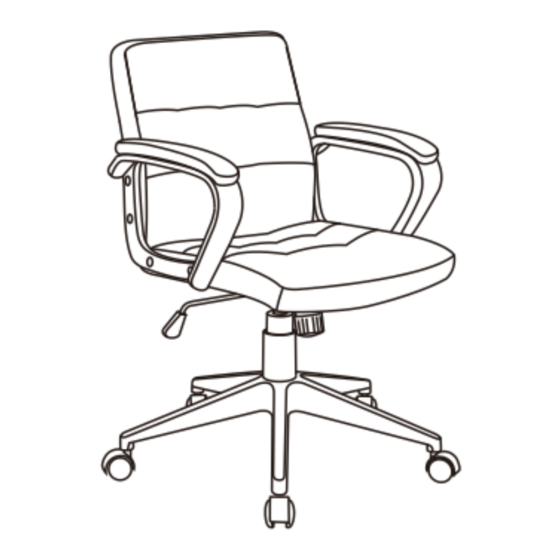

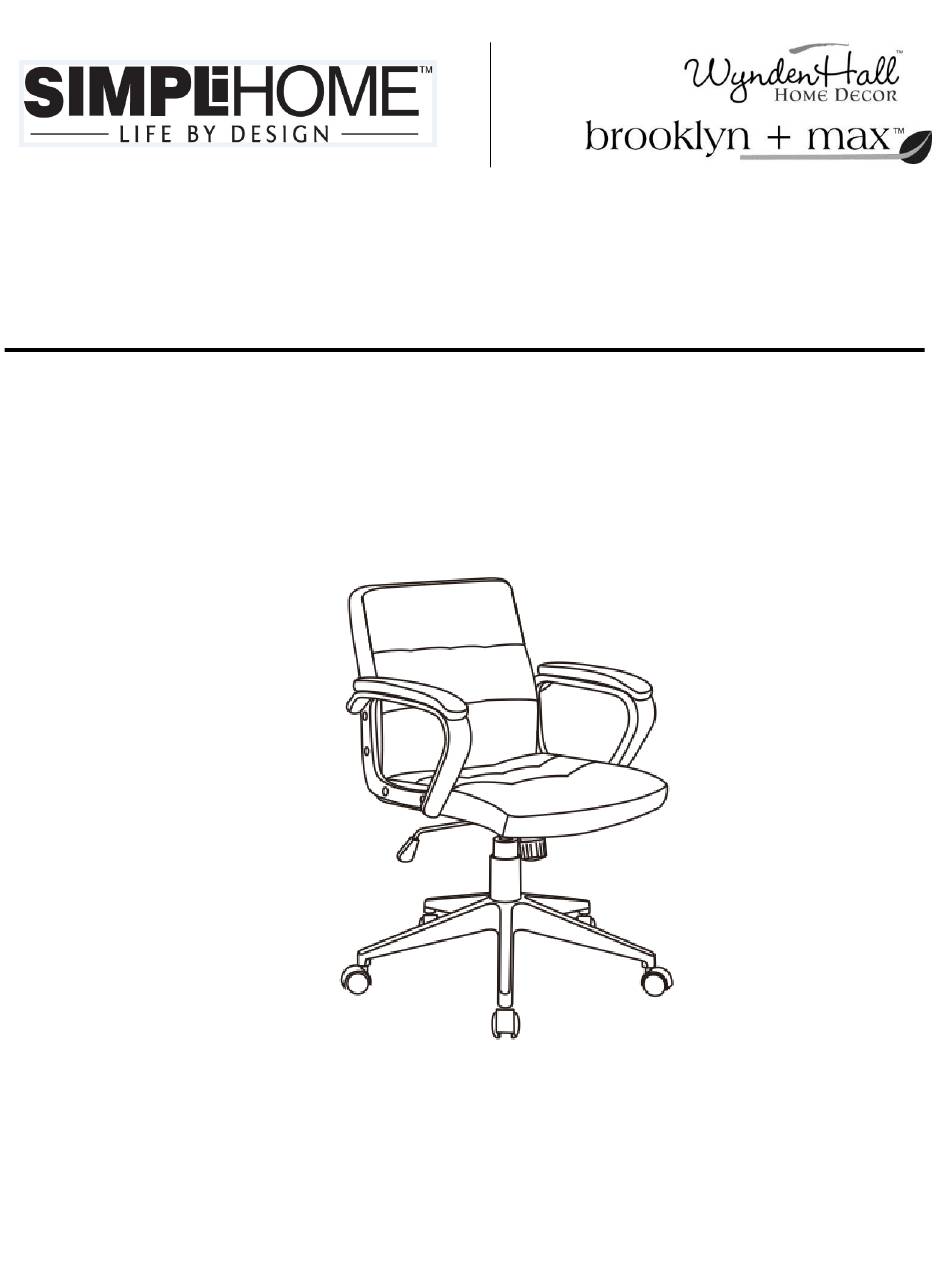

- Page 1 BREWER / DOUGLAS / HAGAN SWIVEL OFFICE CHAIR MODEL # AXCOCHR-15-DBL...
- Page 2 Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 4 pm EST or go to www.simpli-home.com/parts request...
-
Page 3: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION BACK LEFT ARM SEAT QTY 1 QTY 1 QTY 1 RIGHT ARM MECHANISM GAS LIFT QTY 1 QTY 1 QTY 1 BASE CASTER GAS LIFT CAP QTY 1 QTY 5 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. -
Page 5: Hardware Description
PRE-ASSEMBLY INFORMATION HARDWARE DESCRIPTION WASHER BOLT M6 X 18mm M6 X 20mm QTY 4 QTY 12 ALLEN KEY QTY 1 QTY 8 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. 262 (9 am to 4 pm EST) - Page 6 ASSEMBLY STEP 1 Place the Base (G) upside down on a flat smooth surface. Attach the Casters (H) to the Base (G). Attach Gas Lift (F) and Gas Lift Cap (I) to the Base (G).
- Page 7 ASSEMBLY STEP 2 Place the Seat (B) on its back on a flat smooth surface. Attach the Mechanism (E) to the bottom of the Seat (B) with four Bolts (1) and four Washers (2). Use Allen Key (4) to tighten.
- Page 8 ASSEMBLY STEP 3 Place the Seat (B) right side up on the Gas Lift (F). Attach the Left Arm (C) and Right Arm (D) to the Seat (B) using two Bolts (1) on the bottom two holes of each Arm (C) and (D). Use Allen Key (4) to tighten.
- Page 9 ASSEMBLY STEP 4 Attach the Left Arm (C) and Right Arm (D) to the Back (A) using one Bolt (1) on the second hole from the top of each Arm (C) and (D). Use Allen Key (4) to tighten.
- Page 10 ASSEMBLY STEP 5 Straighten the Back (A) to an upright position. Complete attaching the Left Arm (C) and Right Arm (D) to the Back (A) using one Bolt (1) on the first hole of top of each Arm (C) and (D). Use Allen Key (4) to tighten.
- Page 11 ASSEMBLY STEP 6 Place four Bolt Caps (3) on each Arm (C) and (D).
- Page 12 ASSEMBLY STEP 7 The tension knob is located under the seat cushion. Turn the knob clockwise to tighten the tilt mechanism. Turn the knob counter-clockwise to loosen the tilt mechanism.
- Page 13 ASSEMBLY STEP 8 To raise the seat, lift your weight off the seat and reach underneath the right side of the Chair to lift the handle up slowly with a clockwise twisting motion to allow the Chair to rise to desired height. To lower seat, lift the handle slowly with a clockwise twisting motion while seated.
- Page 14 ASSEMBLY STEP 9 To tilt the Chair while seated: Pull the handle outward to unlock. Push the handle inward to lock into position.
-
Page 15: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
