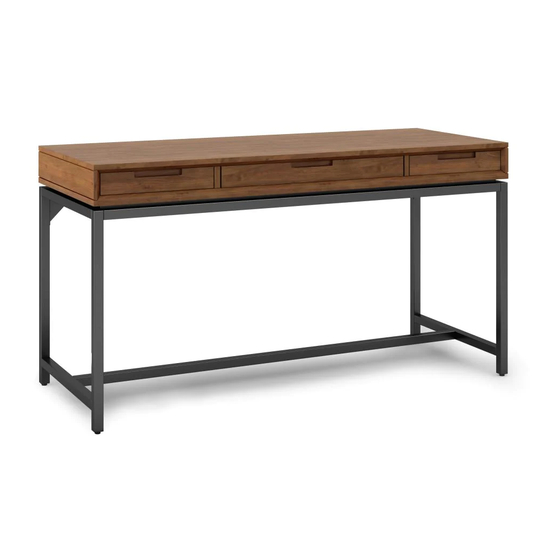

Mid century desk
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TM
S IMP HOME
®
TM
BANTING / DEVLIN / ARGYLE
MID CENTURY DESK
MODEL # AXCBAN-09-MSB
1
/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BANTING AXCBAN-09-MSB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simpli Home BANTING AXCBAN-09-MSB

Summary of Contents for Simpli Home BANTING AXCBAN-09-MSB

  • Page 1 S IMP HOME ® BANTING / DEVLIN / ARGYLE MID CENTURY DESK MODEL # AXCBAN-09-MSB...
  • Page 2 S IMP HOME ® Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –4 pm EST or go to www.simpli-home.com/parts request In order to assist you in a timely manner, please have the following...

  • Page 3: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.

  • Page 4: Care And Maintenance

    IMPORTANT : Keep this manual for future reference. CARE and MAINTENANCE This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness.

  • Page 5: Pre-Assembly Information

    PRE-ASSEMBLY INFORMATION MODEL # AXCBAN-09-MSB PART DESCRIPTION QTY 1 LEG BACK CONNECTOR LEFT LEG RIGHT LEG QTY 1 QTY 1 QTY 1 LEG FRONT CONNECTOR LEG LOWER CONNECTOR LEG SUPPORTER QTY 1 QTY 1 QTY 2 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.

  • Page 6: Hardware Description

    PRE-ASSEMBLY INFORMATION MODEL # AXCBAN-09-MSB HARDWARE DESCRIPTION ALLEN KEY BOLT LOCK WASHER M6 x 15 mm Ø10 / Ø6.5 x 1.5 mm QTY 20 QTY 20 WASHER PHILLIPS SCREW ROUND HEAD M4 X 15mm Ø16 / Ø6.5 x 1.5 mm QTY 4 QTY 24 Required -...
  • Page 7 COMPONENTS-KEY DIAGRAM MODEL # AXCBAN-09-MSB...
  • Page 8 ASSEMBLY MODEL # AXCBAN-09-MSB STEP-1 1. Align Parts C , D and E to Right Leg B R . 2. Use one Bolt 1 , one Lock Washer 2 and one Washer 3 to secure each part C , D , E with BR . 3.
  • Page 9 ASSEMBLY MODEL # AXCBAN-09-MSB STEP-2 1. Repeat Step-1 for Left Leg BL .
  • Page 10 ASSEMBLY MODEL # AXCBAN-09-MSB STEP-3 1. Use Allen Key 5 to tighten Bolts. STEP-4 1. Align Leg Supporters F to Legs BL , B R . 2. Use four Bolts 1 , four Lock Washers 2 and four Washers 3 to secure each part F with BL , BR .
  • Page 11 ASSEMBLY MODEL # AXCBAN-09-MSB STEP-5 1. Attach the assembled metal frame to Top A . 2. Use six Bolts 1 , six Lock Washers 2 and six Washers 3 to secure metal frame and Top A . 3. Use Allen Key 5 to tighten Bolts.
  • Page 12 ASSEMBLY MODEL # AXCBAN-09-MSB STEP-6 Note: Levelers on bottom of legs can be adjusted if floor is uneven.

  • Page 13: Warranty

    S IMP HOME ® WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
