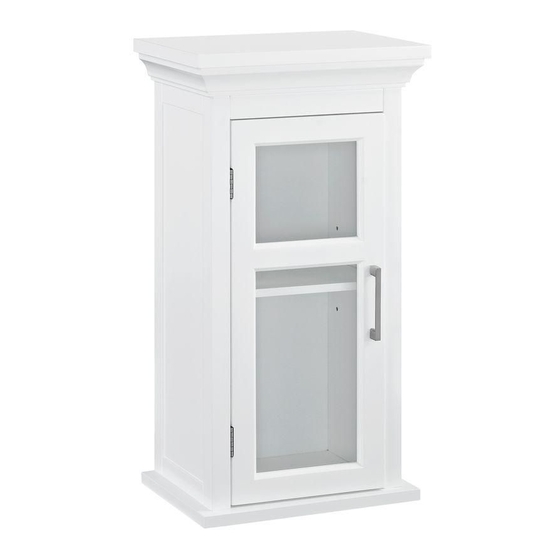

- Page 1 AVINGTON / MIA / HAYES SINGLE DOOR WALL CABINET MODEL # AXCBC‐005‐WH ...
- Page 2 DO NOT RETURN FOR REPLACEMENT PARTS OR OTHER INQUIRIES PLEASE CONTACT US AT: simpli‐home.com/customer‐support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET ...
-
Page 3: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. WARNING: This item contains small parts which can be swallowed by children and pets. Keep children and pets away during assembly. To avoid danger of suffocation, always keep plastic bags away from children and pets. We recommend that you assemble this unit on a carpeted floor to avoid scratches. We do not recommend the use of power tools for assembly as this could damage the unit. Only use manual tools. Requires 2 people for ease of assembly. CARE and MAINTENANCE To clean, use a soft or slightly damp cloth, then wipe with a clean, dry cloth. Dust with a soft dry cloth. Do not use ammonia‐based cleaning products, as they will damage the finish. Do not leave liquids or damp cloths on this furniture. To avoid dulling of the finish, do not place this furniture in direct sunlight. Please inspect and tighten all screws or bolts on a regular basis to ensure proper performance and safety of your item. ... -
Page 4: Pre-Assembly
PRE‐ASSEMBLY TOOLS REQUIRED Phillips Hammer Level screwdriver HARDWARE DESCRIPTION Part Description Quantity Wood Dowel Cam Bolt Cam Lock Screw Screw Magnet Screw Handle Screw Plastic Anchor Screw Metal Hinge Magnet Plate Screw Shelf Support NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1‐866‐518‐0120 ext. 262 (9 am to 5 pm EST) - Page 5 PRE‐ASSEMBLY PACKAGE CONTENTS Part Description Quantity Cabinet Top Left Side Panel Right Side Panel Back Cross Bar Front Cross Bar Middle Shelf Bottom Shelf Door Wood Block Back Board NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1‐866‐518‐0120 ext. 262 (9 am to 5 pm EST)
- Page 6 ASSEMBLY Assembling the Cabinet Top □ Lay down the cabinet top (A) and screw four cam bolts (BB) into the pre-drilled holes using a Phillips screwdriver. □ Attach the wood block (I) to the front cross bar (E) by inserting two screws (NN) through holes on the wood block (I) and tighten to front cross bar (E) using a Phillips screwdriver.
- Page 7 ASSEMBLY Assembling the Back Cross Bar and Front Cross Bar □ Attach the back cross bar (D) and front cross bar (E) to the right side panel (C) by inserting the wood dowels (AA) into the dowel holes on the right side panel (C). Assembling the Back Cross Bar and Front Cross Bar □...
- Page 8 ASSEMBLY Assembling the Bottom Shelf □ Attach the bottom shelf (G) to both pre-assembled side panels (B) and (C) by inserting four wood dowels (AA) into the dowel holes on both side panels (B) and (C). □ Insert four screws (NN) through the holes on the bottom shelf (G) and tighten to both side panels (B and (C) using a Phillips screwdriver.
- Page 9 ASSEMBLY Assembling the Back Board □ Attach the back board (J) to the left side panel (B), right side panel (C), back cross bar (D) and bottom shelf (G) by inserting twelve screws (DD) through the holes on the back board (J). Then tighten to the cabinet. Assembling the Door □...
- Page 10 ASSEMBLY Assembling to the Wall (requires 2 people) □ Place cabinet in a desired location against a wall. □ Using a level, mark two holes on the wall through the holes of the inside of the cabinet. □ Drill two holes in the wall where marked. □...
-
Page 11: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high‐quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. In case of any malfunction of your product (failure, missing parts, etc.) please contact us at our toll free service line at 1‐866‐518‐0120 ext. 262 from 9 am to 5 pm, Monday to Friday, Eastern Standard Time or by email at simpli‐home.com/customer‐support. We reserve the right to repair or replace the defective product, at its discretion. This product is guaranteed for 12 months if used for normal purposes. Any warranty is invalid if the product has been overloaded or subject to neglect, improper use or an attempted repair by other than an authorized agent. Heavy‐duty or daily professional/commercial usage are not guaranteed. Due to continuous product improvement, we reserve the right to change the product specifications without prior notice. ... - Page 12 Question, problems, missing parts? Before returning please email Customer Support at simpli‐home.com/customer‐support or call Customer Service at 1‐866‐0518‐0120 ext. 262 Monday to Friday between 9 am – 5 pm EST For more information visit us on our website www.simpli‐home.com Like us on facebook www.facebook.com/simplihomefurnishings ...
- Page 13 ENTER TO WIN Upload an image of our furniture in your home with a short review to our facebook page and have a chance to Win your choice of any one of Simpli Home furniture pieces Free!!! www.facebook.com/simplihomefurnishings (draws monthly – shipping included) (vanities not included) ...
