Summary of Contents for Simpli Home WyndenHall brooklin+max AXCBSAVN03-WH

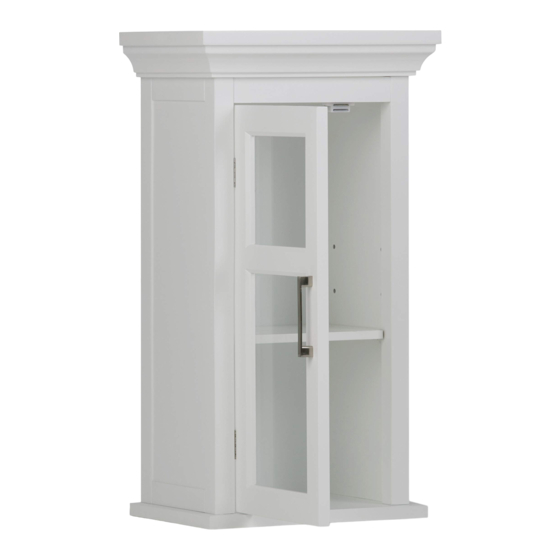

- Page 1 S IMP HOME ® AVINGTON / MIA / HAYES SINGLE DOOR WALL CABINET MODEL # AXCBSAVN03-WH...
- Page 2 S IMP HOME ® Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –4 pm EST or go to www.simpli-home.com/parts request In order to assist you in a timely manner, please have the following...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Care And Maintenance
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCBSAVN03-WH PART DESCRIPTION LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF BACK PANEL DOOR QTY 1 QTY 1 QTY 1 SHELF FRONT BAR BACK BAR QTY 1 QTY 1 QTY 1 WALL MOUNT BAR QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. - Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXCBSAVN03-WH HARDWARE DESCRIPTION CAM LOCK PIN WOOD DOWEL CAM LOCK HINGE Ø8 X 30mm QTY 4 SETS QTY 2 QTY 14 PHILLIPS SCREW PHILLIPS SCREW MAGNET AND PLATE M4 X 50mm M3 X 15mm QTY 1 SET QTY 7 QTY 12 HANDLE...
- Page 7 COMPONENTS-KEY DIAGRAM MODEL # AXCBSAVN03-WH...
- Page 8 ASSEMBLY MODEL # AXCBSAVN03-WH STEP-1 1. Insert four Dowels 2 into guide holes on each part G , H . 2. Use rubber mallet to tap Dowels 2 into bottom of holes securely. 1/2 length of Dowels should be exposed. STEP-2 1.
- Page 9 ASSEMBLY MODEL # AXCBSAVN03-WH STEP-3 1. Repeat Step-2 for the Right Side BR . STEP-4 1. Insert two Dowels 2 into guide holes on each Side BL , BR . 2. Use rubber mallet to tap Dowels 2 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 10 ASSEMBLY MODEL # AXCBSAVN03-WH STEP-5 1. Align Wood Dowels with guide holes and attach Side BL , BR to Bottom Shelf C . 2. Use four Phillips Screws 5 to attach Bottom Shelf C through guide holes from Bottom Shelf C to pre-drilled holes of Sides BL , BR . 3.
- Page 11 ASSEMBLY MODEL # AXCBSAVN03-WH STEP-6 Warning Label...
- Page 12 ASSEMBLY MODEL # AXCBSAVN03-WH STEP-7 1. Attach four Cam Lock Pins 1 into pre-drilled holes on Top A . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. STEP-8 1. Insert two Dowels 2 into guide holes on each Side BL , BR . 2.
- Page 13 ASSEMBLY MODEL # AXCBSAVN03-WH STEP-9 1. Align Cam Lock Pin and Wood Dowels with guide holes on Sides BL , BR and Top A and attach Top A to Sides BL , BR . 2. Insert two Cam Locks 1 into guide holes on each Side BL , BR . 3.
- Page 14 ASSEMBLY MODEL # AXCBSAVN03-WH STEP-10...
- Page 15 ASSEMBLY MODEL # AXCBSAVN03-WH STEP-11 STEP-12...
- Page 16 ASSEMBLY MODEL # AXCBSAVN03-WH STEP-13 - Positioning 1. Determine the location for the unit on the wall. The Top A should be approximately 1 ¼” above the top of the Wall Mount Bar I when mounted. 2. Place the Wall Mount Bar I at the predetermined height. Use a level to ensure that it is straight.
- Page 17 ASSEMBLY MODEL # AXCBSAVN03-WH STEP-15 1. Align the top of the Wall Mount Bar I with the bottom of the angled bracket on the back of the Cabinet. 2. Gently slide the Cabinet down on to the Wall Mount Bar I .
-
Page 18: Warranty
S IMP HOME ® WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
