Zolix Instruments Omni-L Series Operation Manual page 8

INTRODUCTION

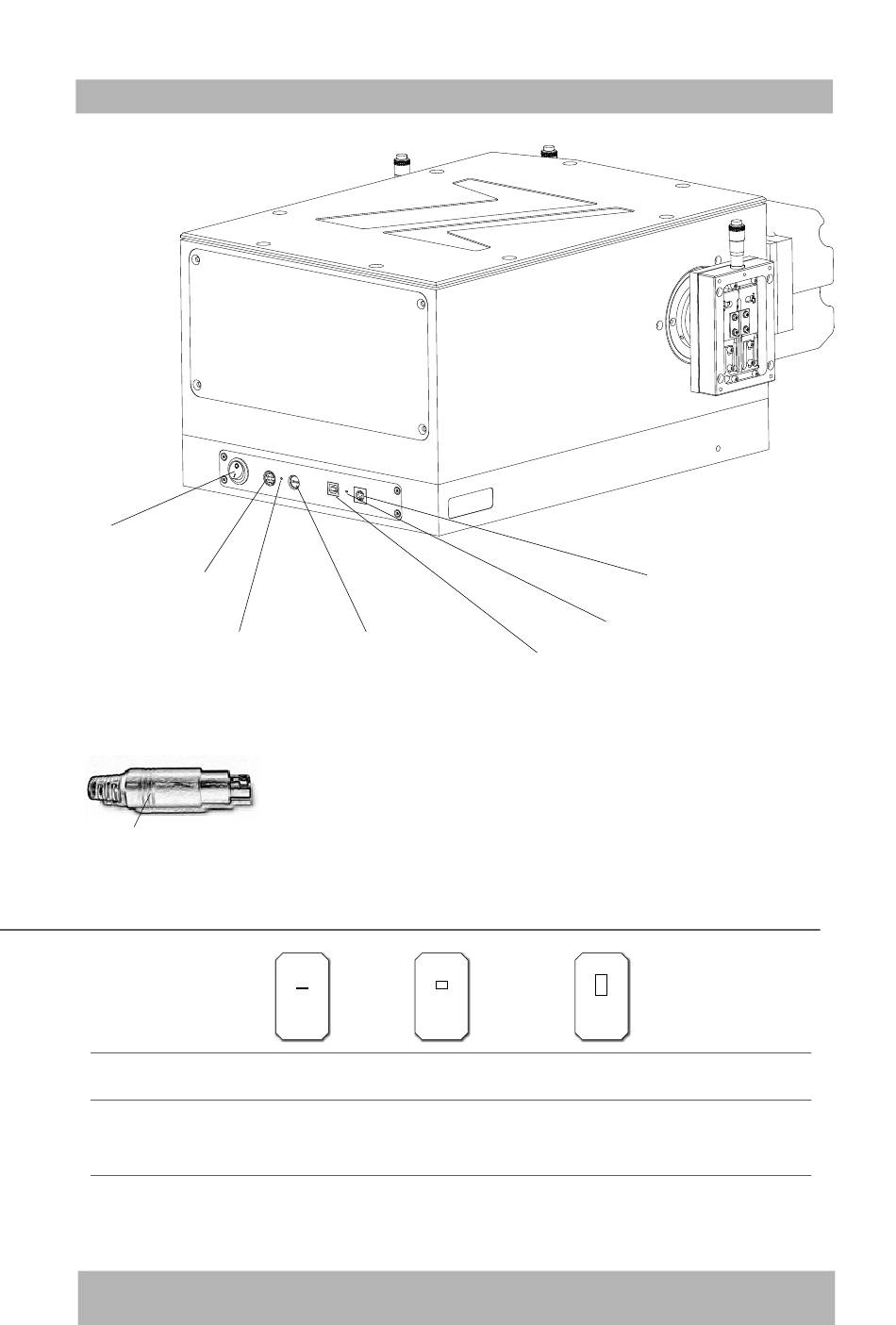

9） Power
10）* DC24V input
11） Power indicator red LED
16）NDIN-9TZ nine-pin DIN connector, one port for I/O port,
another port for customer definition.
* 8） slit aperture
* 10）DC24V power input, connect to power adapter Y-CAD120241
* 14） Signal indicator green LED. Continuous flashing means connecting the PC,
keeping green LED means normal work.
* 15）RS232 port, need the cable DSP502-D10.0 to connect to PC.
6
12） Fuse 5A
2mm 4mm
15）* RS232 port
14）* Signal indicator green LED
13） USB port
14mm
