INTRODUCTION

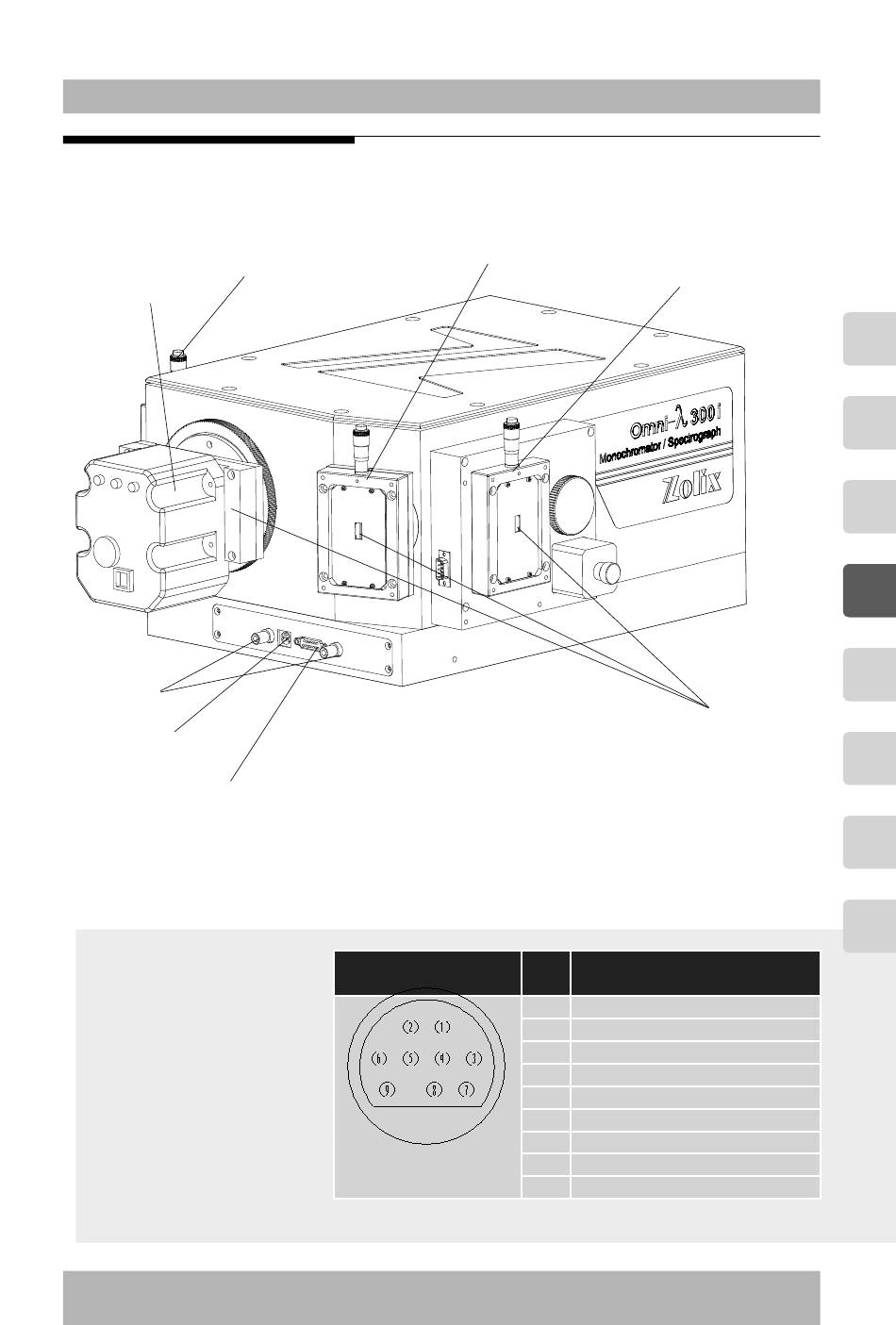

System configuration for Omni- λ 3028i
1） Front output CCD
5） shutter port
6）* I/O port
7） Filter wheel port
*6） I/O port: the PC can
control and inquire each
port by the I/O port. I/O
port definition as below
table
2） Side output slit
3） Front input slit
Base
Definition
Pin
1 IN1- : input port 1 for negative
2 IN1+ : input port 1 for positive
3 OUT1+ :output port 1 for positive
4 OUT- : negative for all output port
5 IN2- :input port 2 for negative
6 IN2+ :input port 2 for positive
7 OUT4+ :output port 4 for positive
8 OUT3+ :output port 3 for positive
9 OUT2+ :output port 2 for positive
4） Side input slit
8） * slit aperture
