INSTALLATION & OPERATION

MICROMETER FOR MANUAL SLIT

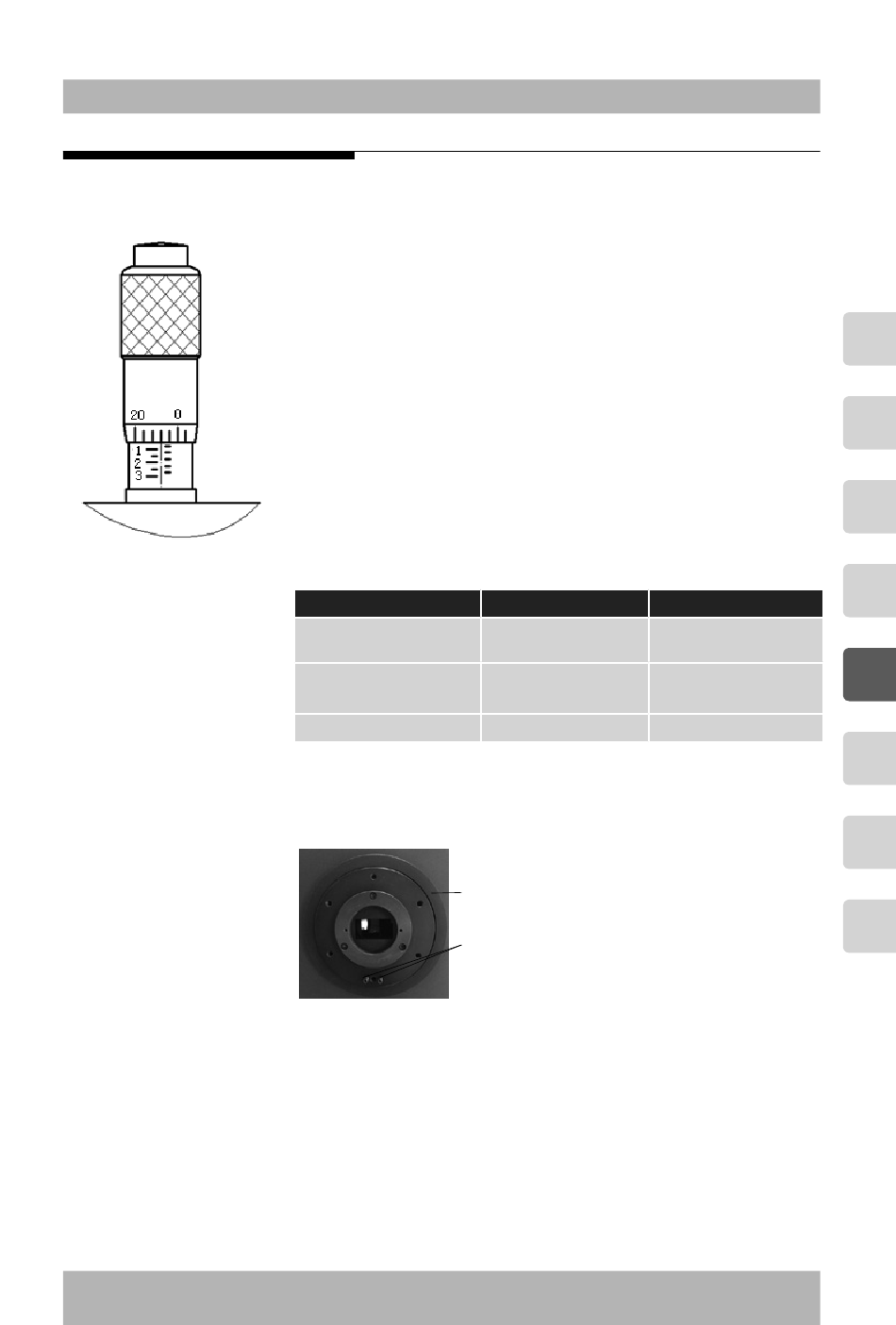

The micrometer knob is graduated in 0.010-millimeter (10µm)
increments. Each clockwise revolution of the micrometer knob
increases the slit width 0.25 millimeters (250µm). Refer to the
side drawing. The micrometer knob should not be rotated below
a reading of 0.00 or above 3.00. A micrometer setting of less
than 0.010 millimeters (10µm) should not be used, because a
stop is provided to prevent the slit jaws from contacting each
other.
And now we supply different adapters for ANDOR CCD detector
as below:
Spectrograph
Omni-λ300i
Omni-λ300, Omni-λ500,
Omni-λ750
Omni-λ500i,Omni-λ750i
How to use the focusing wheel
Adapter
OMF-ANDOR-A13i,
OMF-ANDOR-A13iA
OMF-ANDOR-A10
OMF-ANDOR-A10i
When alignment the CCD
focus, loosen the focusing
Focusing wheel
wheel clamp screw as
Clamp screw
shown, then slowly rotate
the focusing wheel until
the sharpest image is
achieved. Then re-tighten
the clamping screws, the
focus plane will be fixed.
CCD
For ANDOR iDus CCD
For ANDOR iDus CCD
For ANDOR iDus CCD
