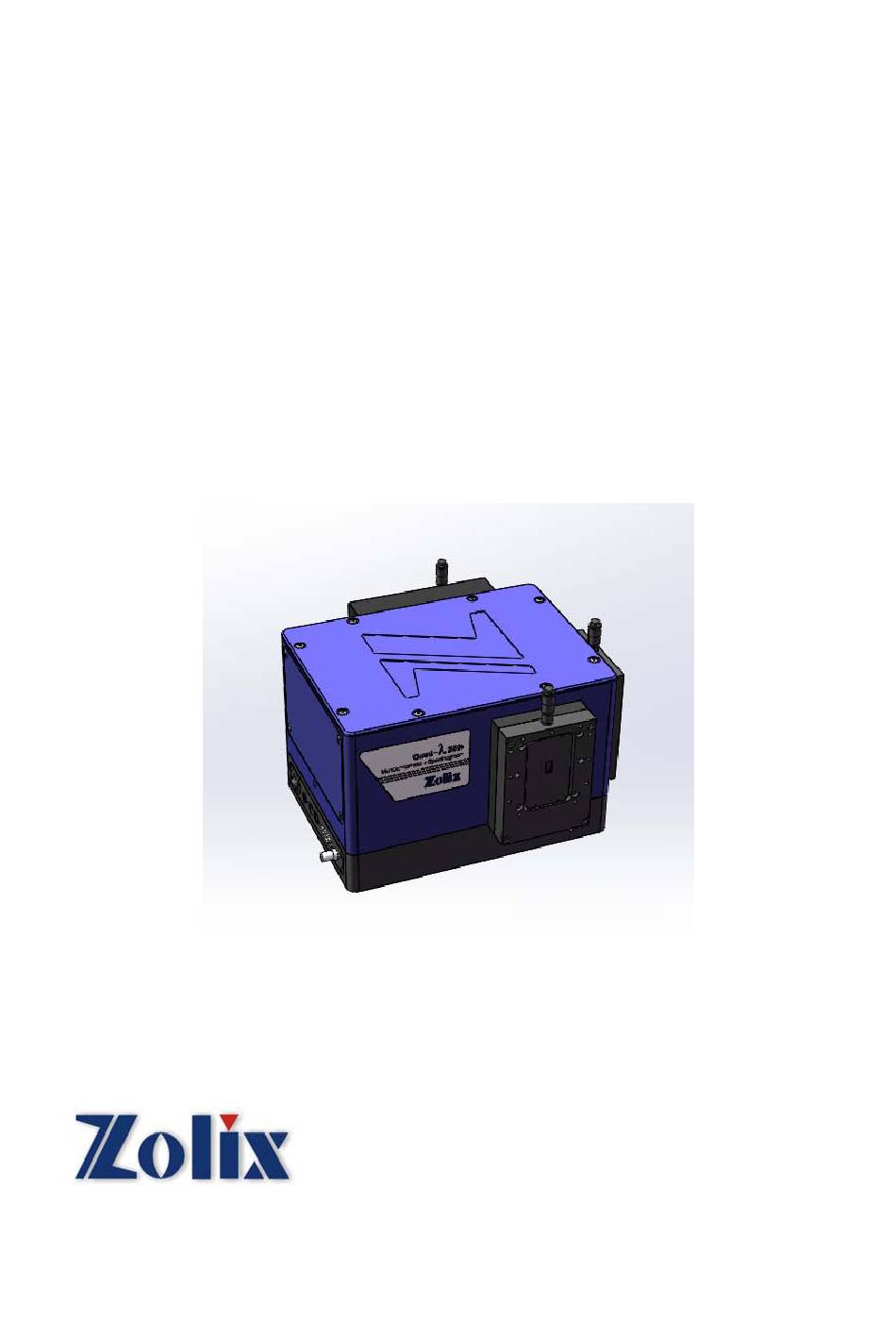

- Page 1 Omni-λ200i series Grating Monochromator and imaging spectrograph （Version 1.0 2017.8） Operation Manual Zolix Instruments Co., Ltd. Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn...
- Page 2 Security Considerations! The Monochromator contains delicate optics.Do not open the monochromator lid if not needed! Do not tough or breathe over gratings! Never try to clean mirrors or gratings！ Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn...
-
Page 3: Table Of Contents
7. Gratings Table ..........................15 8. Dimensions ........................... 17 9. Other Product Maching to Omni-λ ....................18 10. Unpacking Procedures ........................ 20 11. CE Declaration of Conformity ...................... 21 12 Packing List ..........................22 Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn... -
Page 4: Omni-Λ Introduction
• Dual detector outputs,extract best optical resolution while allowing use of single point detectors InGaAs, PbS, InSb & MCT, and also for CCD. • A range of accessories including optical fibres and inputs, motorised filter wheel, additional grating turrets, shutter. Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn... -
Page 5: Omni-Λ200I Optical System Introduction
Optical System 2. Omni-λ200i Optical System Introduction Side Exit Slit /CCD Front Exit Slit /CCD Exit Mirror Focusing Mirror Grating Collimating Mirror Entrance Mirror Side Entrance Slit Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn... -
Page 6: Main Technical Specifications
Optical axis height (mm) Width ： 0.01-3mm (can adjusted continually) Slit （Automatic slit can be selected）Height ：2,4,14mm optional Grating size (mm) 50×50 Gratings Double grating structure Outline (mm) 300×216×213 Weight (Kg) Communication Interface USB2.0 Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn... -
Page 7: Configurations
(5) Power Indicator Light（A flashing indicates that the system is online and the green light indicates normal operation） (6) Fuse (current is 5A) (7) USB Interface (8) Filter wheel control interface (9) Shutter interface Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn... - Page 8 Configurations (10). Slit aperture 14mm Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn...
-
Page 9: Installation And Operation
6. In the Browse Folder dialog box, find the USB driver in the CD and install it. IF your PC is 64-bit, please select USB Driver-64 bit. Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn... -
Page 10: Connecting The Spectrograph
The micrometer knob should not be rotated below a reading of 0.00 or above 3.00. A micrometer setting of less than 0.010 millimeters (10µm) should not be used, because a stop is provided to prevent the slit jaws from contacting each other. Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn... -
Page 11: Slit
3,000µm) by a micrometer located on the top of the slit housing. For maximum reproducibility, the slit width should be set in a clockwise direction (increasing slit widths) each time it is changed. Note: Damage may be done if slit jaws are opened wider than 3.0mm. Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn... -
Page 12: Ccd
5.2.3 Shutter Operation（Options） 1. The shutter in the spectrograph can be set by ZolixScan software, click on the Monochrometer A Digital Port. Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn... - Page 13 A dialog box similar to the following should appear: Type 15 in the Decimal, click on Set Output, shutter will be open. Type 0 in the Decimal, click on Set Output, shutter will be closed. Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn...
- Page 14 Installation and Operation Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn...
- Page 15 Then a dialog box similar to the following should appear, click on Shutter. And then the shutter control graphic will appear as below. Please select By IO Port, click on OPEN button, then the shutter will be open. Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn...
- Page 16 Installation and Operation Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn...
-
Page 17: Spectral Bandwidth Calculation Formula
For Omni-λ300 monochromator with 600g/mm gratings Real Reciprocal Dispersion =3.6×1200/600=7.2nm/mm When the slitwidth is 2mm, the spectral width =7.2×2=14.4nm Also, according to above formula to calculate the slit width of fixed spectral width Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn... -
Page 18: Gratings Table
50×50 9-030-760-NP 450-1500 50×50 9-030-1000-NP 600-2000 1000 50×50 9-030-1200-NP 800-2200 1200 50×50 9-030-2000-NP 1400-4000 2000 50×50 9-030-3000-NP 2000-6000 3000 50×50 9-015-300-NP 200-600 50×50 9-015-500-NP 330-1100 50×50 9-015-800-NP 400-1600 50×50 9-015-1000-NP 600-2000 1090 50×50 Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn... - Page 19 Gratings 9-015-1250-NP 800-2500 1250 50×50 9-015-2000-NP 1100-4000 2000 50×50 9-015-3000-NP 2200-4000 3000 50×50 9-015-4000-NP 2500-8000 4000 50×50 9-0075-8000-NP 6000-16000 8000 50×50 9-0075-10000-NP 6000-18000 10000 50×50 9-0070-12000-NP 9000-20000 12000 50×50 9-0050-12000-NP 8000-22000 12000 50×50 Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn...
-
Page 20: Dimensions
Dimensions 8. Dimensions Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn... - Page 21 Other P Products M Matching to Omni-λ 9. Other P Products M Matching to Omni-λ PMTH-S1 1-X Photom multiplier det ector, X =C CR316-02, R R1527,R152 27P,CR131,C CR131A,R9 928,R2949 and so on bS2900/320 0 Pbs Ser ries IR Detec ctors DInG aAs 1700/26 600 InGaAs...
-
Page 22: Other Product Maching To Omni-Λ
Other Products Matching to Omni-λ LHM254 Mercury Light Source Tunable light source GLORIA-X150A/GLORIA-X500A Xenon light source GLORIA-T150A Tungsten-Halogen Light Source Series Tunable light TLS2-X300P light source：LSH–T150/T250/X150/X500/LSH-X300P/LSH-X300PU Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn... -
Page 23: Unpacking Procedures
Based on contract and packing list, check specification, mode, and quantity. Have above-mentioned situation please report immediately to Zolix or representatives Please keep all packing material at least six months for extra transportation. Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn... -
Page 24: Ce Declaration Of Conformity
CE Declaration of Conformity 11. CE Declaration of Conformity Zolix Instruments Corporation(Zolix) Ensure that the product is not defective in any material and manufacturing defects during the warranty period. If the product during the warranty period does have material or manufacturing flaws, the company will repair or replace the same type of product. -
Page 25: Packing List
4 mm Slit Cover Plate Apertures 14 mm Slit Cover Plate Apertures Documents Amount Omni-λ 200iGrating Monochromator and imaging spectrograph Operation Manual CD (Including Parameters file) Conformity certificate Checker Name and Checking Date: Zolix Instruments Co., Ltd. http://www.zolix.com.cn E-mail: info@zolix.com.cn...
