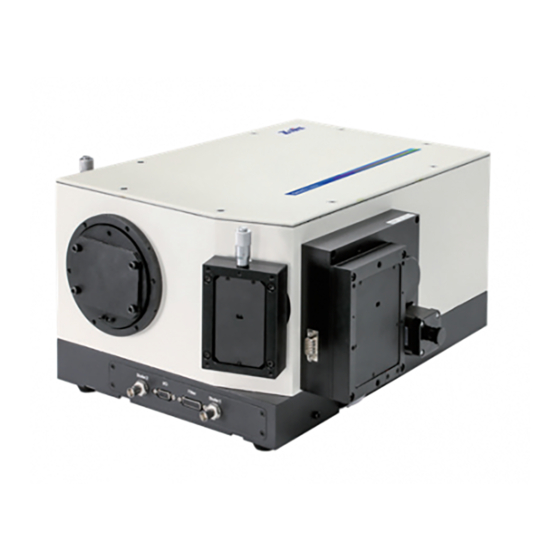

- Page 1 Omni- λ series Grating Monochromator and imaging spectrograph Operation Manual 【VERSION 1.1 JAN 2016】...
- Page 2 TRADEMARKS AND PATENT INFORMATION • ZOLIX, the ZOLIX logo, Omni-λ series are trademarks of Zolix Instruments Co., Ltd. • All other marks are property of their owners. • Changes are periodically made to the product and these will be incorporated into new additions of the manual.
-
Page 3: Table Of Contents
CONTENTS 1 SECURITY CONSIDERATIONS 2 UNPACKING & PACKING LIST 2.1 UNPACKING THE Omni-λ SPECTROGRAPH…………8 2.2 PACKING LIST…………………………………………10 3 INTRODUCTION 3.1 SYSTEM CONFIGURATION……………………………8 3.2 SPECIFICATION & INTERFACE………………………10 4 INSTALLATION & OPERATION 4.1 USB SOFTWARE INSTALLATION………………………8 4.2 CONNECTING THE SPECTROGRAPH………………10 4.3 MICROMETER FOR MANUAL SLIT …………………11 4.4 SHUTTER OPERATION(OPTIONS)……………………12 5 DIMENTIONS 6 SPECTRAL BANDWIDTH CALCULATION FORMULA &... -
Page 4: Unpacking The Omni-Λ Spectrograph
SECURITY CONSIDERATIONS! The Monochromator contains delicate optics.Do not open the monochromator lid if not needed! Do not tough or breathe over gratings! Never try to clean mirrors or gratings! UNPACKING & PACKING LIST UNPACKING THE Omni- λ SPECTROGRAPH BEFORE unpacking the Omni-λ units, allow the shipping box to fully acclimatise to room temperature. -
Page 5: System Configuration
INTRODUCTION The Omni-λ Spectrograph comes with a range of features including: • Motorized, individually factory-calibrated systems, out-of-the-box operation and seamless integration to experimental set-ups, Pre-aligned and pre-calibrated spectrograph.Functionality including wavelength control and calibration, grating selection, shutter control slit control and filter selection. -
Page 6: Specification & Interface
INTRODUCTION SPECIFICATION & INTERFACE Omni- λ monochromator Omni- λ 150 Omni- λ 300 Omni- λ 500 Omni- λ 750 Focal Length (mm) Aperture f/4.2 f/3.9 f/6.5 f/9.7 Wavelength Resolution(nm) 0.05 0.03 （10µm×2mm） Reciprocal Dispersion (nm/mm) Wavelength Accuracy (nm) ±0.25 ±0.2 ±0.11 Wavelength Reproducibility(nm) ±0.1... - Page 7 INTRODUCTION System configuration for Omni- λ 3028i 3） Front input slit 2） Side output slit 4） Side input slit 1） Front output CCD 5） shutter port 8） * slit aperture 6）* I/O port 7） Filter wheel port *6） I/O port: the PC can Base Definition control and inquire each...
- Page 8 INTRODUCTION 9） Power 15）* RS232 port 10）* DC24V input 14）* Signal indicator green LED 11） Power indicator red LED 12） Fuse 5A 13） USB port 16）NDIN-9TZ nine-pin DIN connector, one port for I/O port, another port for customer definition. * 8） slit aperture 14mm * 10）DC24V power input, connect to power adapter Y-CAD120241 * 14）...
-
Page 9: Usb Software Installation
INSTALLATION & OPERATION USB SOFTWARE INSTALLATION XP and Win7 system 1. Firstly ensure the Power switch on the 5. Select the Install from a list or specific rear of the spectrograph is set to 0. location (Advanced) option then click 2. -
Page 10: Connecting The Spectrograph
INSTALLATION & OPERATION CONNECTING THE SPECTROGRAPH 1. Firstly ensure the Power switch on the rear of the spectrograph is set to 0. 2. Connect the Power & USB cables.Connect the other end of the USB cable to the PC and plug in the power supply to the mains, switch the power on and install the USB driver as USB SOFTWARE INSTALLATION. -
Page 11: Micrometer For Manual Slit
INSTALLATION & OPERATION MICROMETER FOR MANUAL SLIT The micrometer knob is graduated in 0.010-millimeter (10µm) increments. Each clockwise revolution of the micrometer knob increases the slit width 0.25 millimeters (250µm). Refer to the side drawing. The micrometer knob should not be rotated below a reading of 0.00 or above 3.00. -
Page 12: Shutter Operation(Options)
INSTALLATION & OPERATION SHUTTER OPERATION(OPTIONS) a. The shutter in the spectrograph can be set by ZolixScan software, click on the Monochrometer A Digital Port. A dialog box similar to the following should appear: Type 15 in the Decimal, click on Set Output, shutter will be open. - Page 13 INSTALLATION & OPERATION b. The shutter in the spectrograph can be set by EmenTool software also. First, click on the button as below: Then a dialog box similar to the following should appear, click on Shutter. then the shutter control graphic will appear as below.
- Page 14 INSTALLATION & OPERATION DIMENTIONS Omni- λ 150 Omni- λ 300 Omni- λ 300i Omni- λ 500 Omni- λ 500i Omni- λ 750 Omni- λ 750i...
-
Page 15: Spectral Bandwidth Calculation Formula
SPECTRAL BANDWIDTH CALCULATION FORMULA & GRATINGS LIST SPECTRAL BANDWIDTH CALCULATION FORMULA Spectral bandwidth = slit width X Reciprocal Dispersion NOTE1, This formula only for slit width ＞100µm. NOTE2, The real measurement bandwidth value slightly more calculation value. NOTE3, The Reciprocal Dispersion of different spectrograph are shown in the SPECIFICATION table,and the Reciprocal Dispersion value only for 1200g/mm gratings. -
Page 16: Gratings Table
SPECTRAL BANDWIDTH CALCULATION FORMULA & GRATINGS LIST GRATINGS TABLE Gratings for Omni- λ 150: Wavelength Line density (g/ Zolix Part number Blazing (nm) Size (mm) range(nm) 1-240-H Holographic 68×68 1-240-V Holographic 68×68 可见 1-180-H Holographic 68×68 1-180-500 300-800 1800 68×68 200--600 1200 68×68... - Page 17 SPECTRAL BANDWIDTH CALCULATION FORMULA & GRATINGS LIST Gratings for Omni- λ 300(i)/500(i)/750(i) Wavelength Line density Zolix Part number Blazing (nm) Size (mm) Stock range(nm) (g/mm) 1-360-180-500-NP 180-400 3600 300（holographic） 68 x 68 1-240-250-800-NP 250-600 2400 300（holographic） 68 x 68 √ 1-240-190-800-NP 190-600 2400...
- Page 18 OTHER PRODUCTS FOR Omni- λ ● ● ● PMTH-S1-X Photomultiplier DPbS2900/3200 Pbs DInGaAs 1700/2600 detector, X =1P28, R1527,R Series IR Detectors InGaAs Series Detectors 1527P,CR131,CR131A,R92 8,R2949 and so on. ● ● ● DSi200/Dsi300 Detectors 30W Deuterium Light LHM254 Mercury Source System Light Source ●...
- Page 19 CE DECLARATION of CONFORMITY Safety requirements for electrical equipment for measurement, control EN 61010-1:2001 and laboratory use – Part 1: General requirements [Class B] Electrical equipment for measurement, control and laboratory use – EN 61326-1:1997 + EMC requirements – Part 1: General requirements [Class B]( radiate A1:1998 emission、conduct emission、En61000-4-2、...
- Page 20 This warranty is expressly in lieu of all other obligations or liabilities on the part of Zolix, and Zolix neither assumes, nor authorizes any other person to assume for then other obligations or liability in connection with the sale of equipment manufactured by Zolix Instruments Corporation.
- Page 21 China Zolix Instruments Co., Ltd. LianDongUValley 68B | No.16 Huanke Middle Rd | Tongzhou District | Beijing, 101102 China Tel. +86-10-5637-0168 Fax. +86-10-5637-0118 e-mail: info@zolix.com.cn...
