Manual

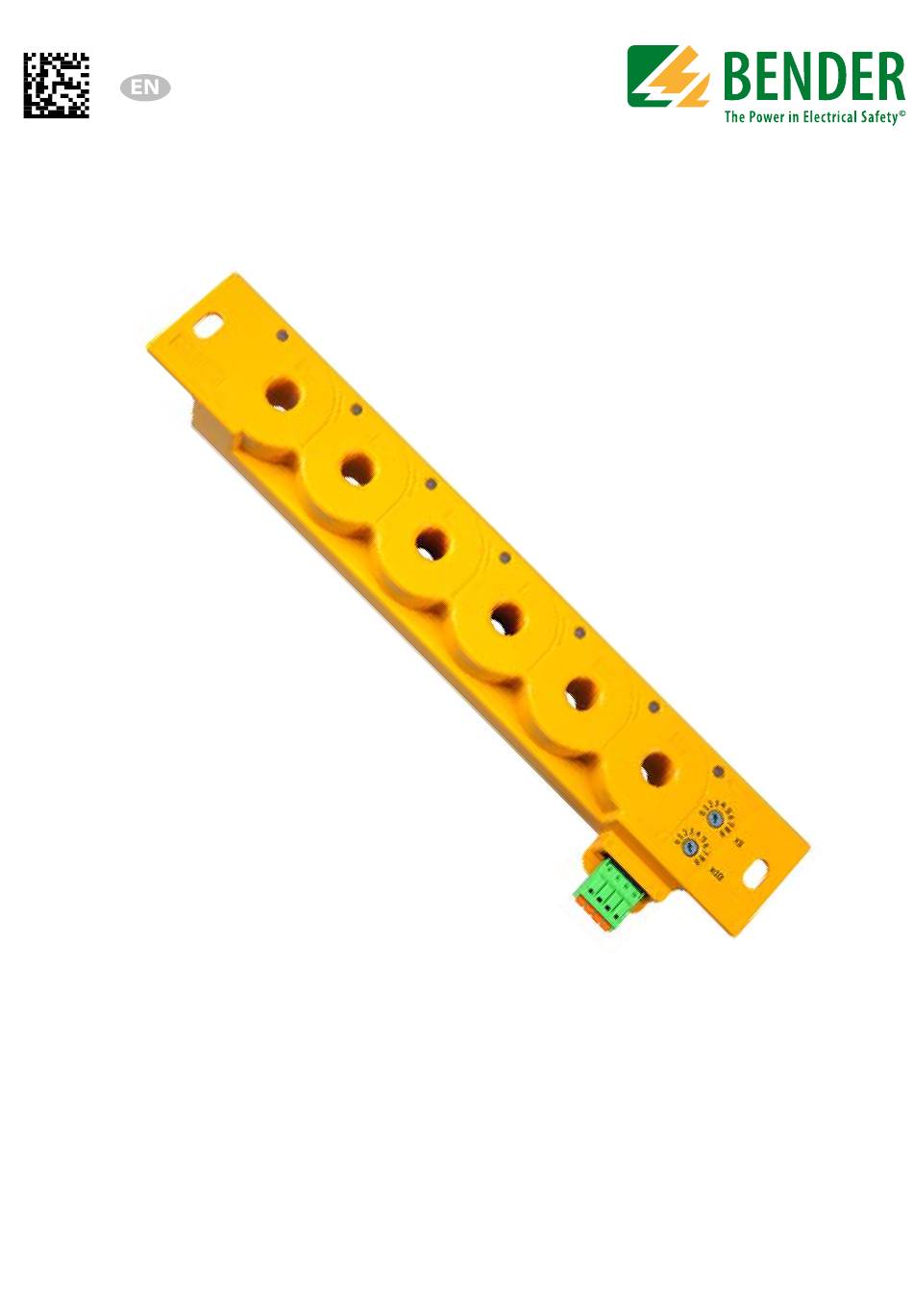

LINETRAXX® RCMS150
Residual current monitor type B
with integrated measuring current transformers
for earthed AC/DC systems (TN and TT systems)
for COMTRAXX 2.1, Option C
RCMS150_D00259_00_M_XXEN/08.2016

Advertisement

Table of Contents
loading

Related Manuals for Bender LINETRAXX RCMS150

Summary of Contents for Bender LINETRAXX RCMS150

  • Page 1 Manual LINETRAXX® RCMS150 Residual current monitor type B with integrated measuring current transformers for earthed AC/DC systems (TN and TT systems) for COMTRAXX 2.1, Option C RCMS150_D00259_00_M_XXEN/08.2016...
  • Page 2 Bender GmbH & Co. KG P.O. Box 1161 • 35301 Gruenberg • Germany Londorfer Strasse 65 • 35305 Gruenberg • Germany Tel.: +49 6401 807-0 • Fax: +49 6401 807-259 E-Mail: info@bender.de • www.bender.de © Bender GmbH & Co. KG All rights reserved.

  • Page 3: Table Of Contents

    Table of Contents 1. Important information ..................5 How to use this manual ................. 5 Technical support: service and support ........... 6 1.2.1 First level support ..................... 6 1.2.2 Repair service ..................... 6 1.2.3 Field service ......................7 Training courses ....................7 Delivery conditions ..................
  • Page 4 Table of Contents Wiring diagram ....................18 Commissioning ....................19 5. Indication via web server ................21 Example of a system design ..............21 Starting the web browser ................21 User interface web browser ............... 21 Web application: Menu overview RCMS150 ........22 6.

  • Page 5: Important Information

    This manual has been compiled with great care. It might nevertheless contain errors and mistakes. Bender cannot accept any liability for injury to persons or damage to property resulting from errors or mistakes in this manual.

  • Page 6: Technical Support: Service And Support

    Important information 1.2 Technical support: service and support For commissioning and troubleshooting Bender offers you: 1.2.1 First level support Technical support by phone or e-mail for all Bender products Questions concerning specific customer applications   Commissioning   Troubleshooting ...

  • Page 7: Field Service

    **Mo-Thu 7.00 a.m. - 8.00 p.m., Fr 7.00 a.m. - 13.00 p.m. 1.3 Training courses Bender is happy to provide training regarding the use of test equipment. The dates of training courses and workshops can be found on the Internet at www.bender-de.com ->...

  • Page 8: Inspection, Transport And Storage

    Important information Sale and delivery conditions can be obtained from Bender in printed or elec- tronic format. 1.5 Inspection, transport and storage Inspect the dispatch and equipment packaging for damage, and compare the contents of the package with the delivery documents. In the event of damage in transit, please contact Bender immediately.

  • Page 9: Disposal

    13 August 2005 must be taken back by the manufacturer and disposed of properly. For more information on the disposal of Bender devices, refer to our homepage at www.bender-de.com -> Service & support.
  • Page 10 Important information RCMS150_D00259_00_M_XXEN/08.2016...

  • Page 11: Safety Instructions

    2. Safety instructions 2.1 General safety instructions Part of the device documentation in addition to this manual is the enclosed "Safety instructions for Bender products". 2.2 Work activities on electrical installations Only qualified personnel are permitted to carry out the work necessary to install, commission and run a device or system.
  • Page 12 Safety instructions In order to meet the requirements of applicable standards, customised pa- rameter settings must be made on the equipment in order to adapt it to local equipment and operating conditions. Please heed the limits of the range of application indicated in the technical data.

  • Page 13: Product Description

    Fully shielded measuring current transformers to avoid external influ-   ences due to magnetic fields that may cause disturbances Compatible with Bender gateways of type COM465IP, CP700   Up to 534 measuring channels in the monitored system that can be ...

  • Page 14: Approvals And Certifications

    Product description If one of the four set response values I is exceeded, the assigned response ΔN… delay t starts. If the response value continues to be exceeded, the corre- on… sponding message (prewarning or alarm) is displayed on the gateway after the response delay t has elapsed.

  • Page 15: Installation, Connection And Commissioning

    4. Installation, connection and commissioning Only qualified personnel are permitted to carry out the work necessary to install, commission and run a device or system. Risk of electrocution due to electric shock! Touching live parts of the system carries the risk of: An electric shock ...

  • Page 16: Type Of Mounting

    Installation, connection and commissioning The general safety conditions as well as the prevailing national acci-   dent prevention regulations are to be adhered to. Electrical installation is to be carried out according to all applicable local laws (e.g. wire cross section, protection, PE connection).

  • Page 17: Display And Operating Elements

    Installation, connection and commissioning 4.2.1 Display and operating elements ON/COM Fig. 4.2: Display and operating elements Display and operating elements legend Slot for screw mounting Alarm LEDs for the channels K1…6 Line feed-through of the measuring current transformers for the chan- nels K1…6 ON LED: Power on LED Potentiometer with detents: Determination of ones' position of the BMS...

  • Page 18: Wiring Diagram

    Installation, connection and commissioning 4.3 Wiring diagram ON/COM Fig. 4.3: Wiring diagram RCMS150 Detail: terminal Supply voltage U DC 24 V RS-485 interface (BMS bus) (Modbus RTU on request) Terminating resistor 120 Ω (required at the beginning and at the end of the bus) +24V GND Fig.

  • Page 19: Commissioning

    Installation, connection and commissioning Risk of short circuit! Only insulated conductors with an insulation that is suitable for at least the monitored voltage may be routed through the measuring current transformer. CAUTION The rated voltage of the RCMS150 must not be exceeded. 4.4 Commissioning 1.
  • Page 20 Installation, connection and commissioning 3. Route outgoing circuits to be monitored through the current trans- formers. Risk of short circuit! Only insulated conductors with an insulation that is suitable for at least the monitored voltage may be routed through the measuring current transformer.

  • Page 21: Indication Via Web Server

    5. Indication via web server The measured values (measuring channels) of the individual measuring cur- rent transformers of the RCMS can be displayed in the web browser. 5.1 Example of a system design RCMS150 COM465IP 120 Ω 120 Ω (DIP-Schalter COM465IP) 5.2 Starting the web browser After commissioning the RCMS150, start the web browser.

  • Page 22: Web Application: Menu Overview Rcms150

    Indication via web server 5.4 Web application: Menu overview RCMS150 Overview Current measured values and alarm states of the 12 measuring channels (1...6: RMS; 7...12: DC) Configure e-mail Generating e-mails to report device failures Determining addressees for each channel via the gateway Details: refer to CP700/COM465IP manual Report Generating a report of all active devices...

  • Page 23: Glossary

    6. Glossary Terms Explanation In the overview: measuring channel number 1…12 1…6: RMS of channels K1…6; 7…12: DC of channels K1…6 Alarm In the event of an alarm, a message is sent via the bus and the respective LED lights up on the RCMS.
  • Page 24 Glossary Terms Explanation Hysteresis If the measured value were to oscillate around the response value, the RCMS150 would con- stantly change from alarm to normal status and back again. If a hysteresis of 20 % is set, the alarm state will not be exited until the measured value is 20 % below the response value.
  • Page 25 Glossary Terms Explanation Menu > Settings > Channel Response value alarm, t on2 DC > DC Response value, prewarning, t on1 DC Report The report includes: - The current measured values for each chan- - Values of the general settings hysteresis, t start-up - Response values and t for prewarnings...
  • Page 26 Glossary Terms Explanation T(start-up) Start-up delay t start-up Time delay after the RCMS150 has been switched on. No alarm message is generated during this time period. This time delay is required if the RCMS150 and the system to be monitored are switched on simultaneously. Currents caused by switching operations are ignored.
  • Page 27 Glossary Terms Explanation Overview The current state and the measured value are indicated for all 12 measuring channels (#) No residual current measured Prewarning Alarm Prewarning Preliminary stage to alarm, the less severe response value has been reached (e.g. 50 % of the alarm response value) Factory settings All settings are reset...
  • Page 28 Glossary RCMS150_D00259_00_M_XXEN/08.2016...

  • Page 29: Technical Data

    7. Technical data ( )* = factory settings 7.1 Tabular data Insulation coordination according to IEC 60664-1 The data are valid for the monitored primary circuit to the output circuit Output circuit ..............................(+, -, A, B) Rated insulation voltage............................300 V Overvoltage category..............................III Rated impulse withstand voltage monitored circuit/output circuit ................4 kV Range of use............................≤...
  • Page 30 Technical data DC, 10…500 Hz ............................-20…0 % 500 Hz…2 kHz ............................. -20…+100 % Hysteresis ............................10…25 % (15 %)* Time response Start-up delay t ........................0.5…600 s (0.5 s)* start-up Response delay ............................0…600 s (1 s)* on1 RMS/DC ............................0…600 s (0 s)* on2 RMS/DC Delay on release ................................
  • Page 31 Technical data Classification of mechanical conditions acc. to IEC 60721: Stationary use (IEC 60721-3-3) ..........................3M4 Transport (IEC 60721-3-2)............................2M2 Long-term storage (IEC 60721-3-1) ........................1M3 Connection Connection type......................pluggable push-wire terminal Connection properties: rigid, flexible/conductor sizes 0.2…1.5 mm²/AWG 24…16 Multi-conductor connection (2 conductors with the same cross section): rigid .................................0.2…1.5 mm²...

  • Page 32: Standards, Approvals, Certifications

    Technical data 7.2 Standards, approvals, certifications UL508 in preparation CSA in preparation 7.3 Ordering information Supply voltage Type Art. No. RCMS150 DC 24 V B 9405 3025 Mounting clip for DIN rail mounting B 9108 0110 Accessories Description Type Art. No. Condition Monitor with integrated gateway COM465IP B 9506 1065...

  • Page 33: Index

    INDEX Menu structure of the web user interface Approvals and certifications 14 Mounting the device 15 approvals and certifications 32 On-site service 7 Commissioning 15 Operating elements 17 Ordering information 32 Device features 13 Dimension diagram 16 Periodic verification 13 Display elements 17 Product description 13 Disposal 9...
  • Page 34 Technical data 29 Technical support 6 Terminal details 18 Test 25 Training courses 7 Web user interface 29 Wiring diagram 18 Work activities on electrical installations 11 Workshops 7 RCMS150_D00259_00_M_XXEN/08.2016...
  • Page 36 Bender GmbH & Co. KG P.O. Box 1161 • 35301 Gruenberg • Germany Londorfer Strasse 65 • 35305 Gruenberg • Germany Tel.: +49 6401 807-0 • Fax: +49 6401 807-259 E-Mail: info@bender.de • www.bender.de Photos: Bender archives...
