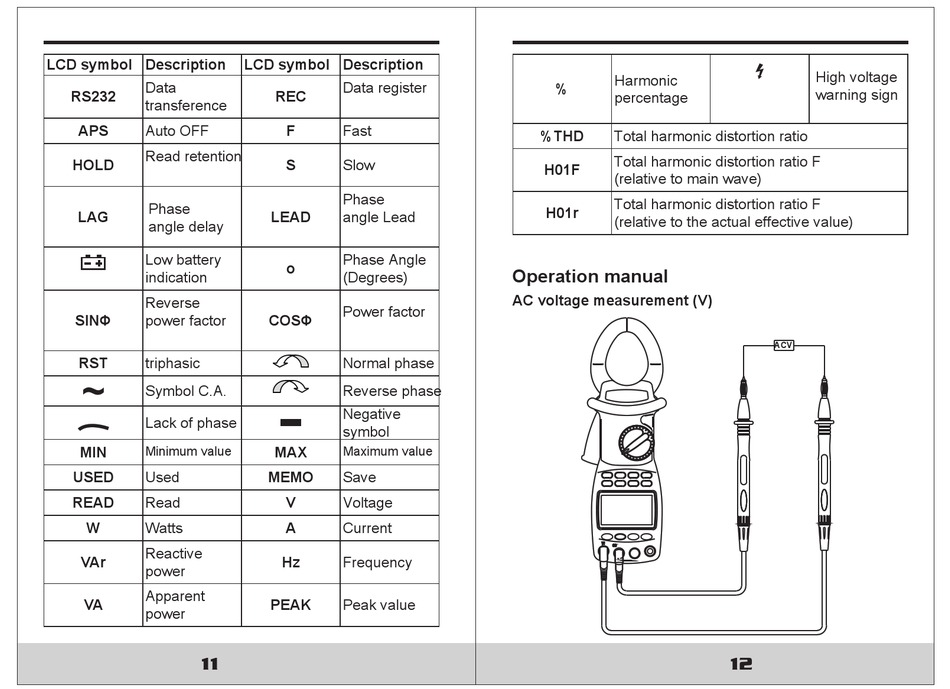

LCD symbol Description
Data
RS232
transference
Auto OFF
APS
Read retention
HOLD
Phase
LAG
angle delay
Low battery
indication
Reverse
SINΦ power factor
RST triphasic
Symbol C.A.
Lack of phase
MIN Minimum value
USED Used
READ Read
W Watts
Reactive
VAr
power
Apparent
VA
power
11
LCD symbol Description
Data register
REC
Fast
F
Slow
S
Phase
angle Lead
LEAD
Phase Angle
o
(Degrees)
Power factor
COSΦ
Normal phase
Reverse phase
Negative
symbol
MAX Maximum value
MEMO Save
V Voltage
A
Current
Hz Frequency
PEAK Peak value
Harmonic
%
percentage
Total harmonic distortion ratio
%THD
Total harmonic distortion ratio F
H01F
(relative to main wave)
Total harmonic distortion ratio F
H01r
(relative to the actual effective value)

Operation manual

AC voltage measurement (V)
High voltage
warning sign
ACV
