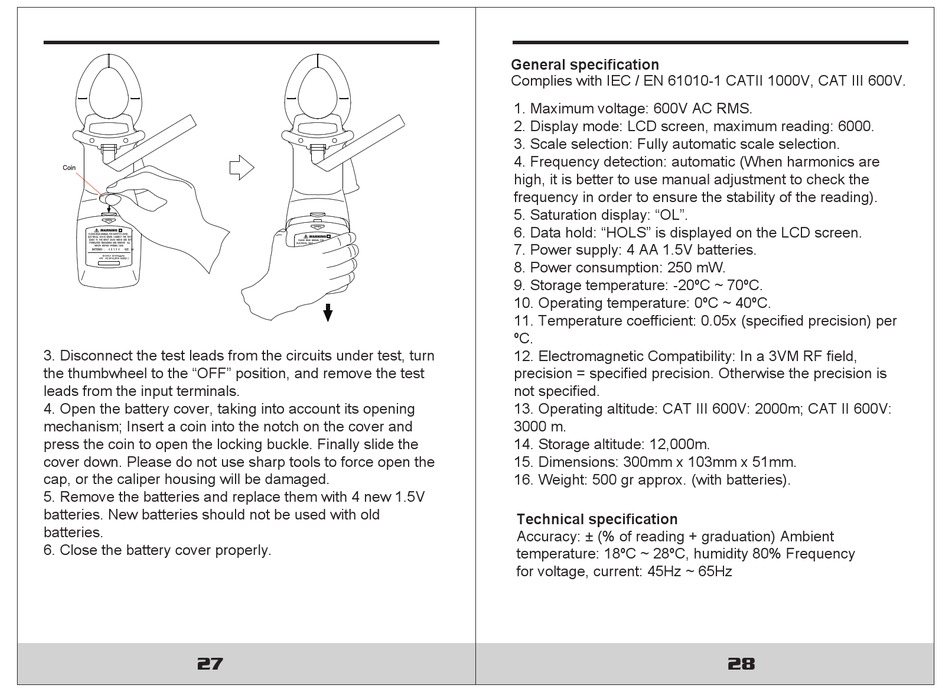

3. Disconnect the test leads from the circuits under test, turn
the thumbwheel to the "OFF" position, and remove the test
leads from the input terminals.
4. Open the battery cover, taking into account its opening
mechanism; Insert a coin into the notch on the cover and
press the coin to open the locking buckle. Finally slide the
cover down. Please do not use sharp tools to force open the
cap, or the caliper housing will be damaged.
5. Remove the batteries and replace them with 4 new 1.5V
batteries. New batteries should not be used with old
batteries.
6. Close the battery cover properly.
27

General specification

Complies with IEC / EN 61010-1 CATII 1000V, CAT III 600V.
1. Maximum voltage: 600V AC RMS.
2. Display mode: LCD screen, maximum reading: 6000.
3. Scale selection: Fully automatic scale selection.
4. Frequency detection: automatic (When harmonics are
high, it is better to use manual adjustment to check the
frequency in order to ensure the stability of the reading).
5. Saturation display: "OL".
6. Data hold: "HOLS" is displayed on the LCD screen.
7. Power supply: 4 AA 1.5V batteries.
8. Power consumption: 250 mW.
9. Storage temperature: -20ºC ~ 70ºC.
10. Operating temperature: 0ºC ~ 40ºC.
11. Temperature coefficient: 0.05x (specified precision) per
ºC.
12. Electromagnetic Compatibility: In a 3VM RF field,
precision = specified precision. Otherwise the precision is
not specified.
13. Operating altitude: CAT III 600V: 2000m; CAT II 600V:
3000 m.
14. Storage altitude: 12,000m.
15. Dimensions: 300mm x 103mm x 51mm.
16. Weight: 500 gr approx. (with batteries).

Technical specification

Accuracy: ± (% of reading + graduation) Ambient
temperature: 18ºC ~ 28ºC, humidity 80% Frequency
for voltage, current: 45Hz ~ 65Hz
