Lcd Screen - C-LOGIC 8900 User Manual

CLEAR key
In data reading mode, you can press the CLEAR key and
then the SET key to clear the test data stored in the clamp at
a specified position.
Key
You can press the key to turn the backlight on or off.
After being on for 20 seconds, it will turn off automatically.
Key
In the tension scale setting mode, you can press the key
to change the tension scale. During the harmonic check, you
can change the order of the harmonics.
When reading the stored data, you can press the key
advance through memory locations and display them on the
LCD screen. With each press of the key, the search cursor
will advance one position on the previous data.
Key
In the current scale setting mode, you can press the key
to change the voltage scale. During the harmonic check, you
can change the order of the harmonics.
When reading the stored data, you can press the key
go back through the memory locations and display them on
the LCD screen. With each press of the key, the search
cursor will go back one position on the previous data.
REC / SAVE key
In measurement mode, you can press the REC /
09
SAVE to display voltage, current, max / min power. which is
actually measured; In reading hold mode, press this key to
display the storage position; press the SET key again to
save the frozen data on the screen in memory. Up to 100
groups of data can be stored in the gripper.
HOLD key
After measurement, press this key to freeze the data on the
LCD screen; After shutdown, the data will be displayed.

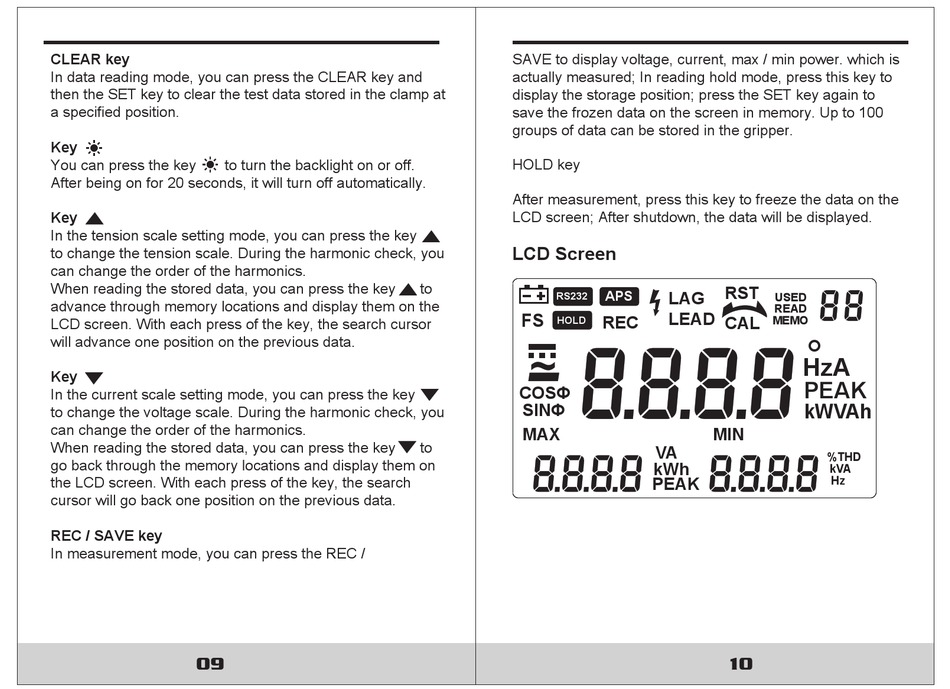

LCD Screen
