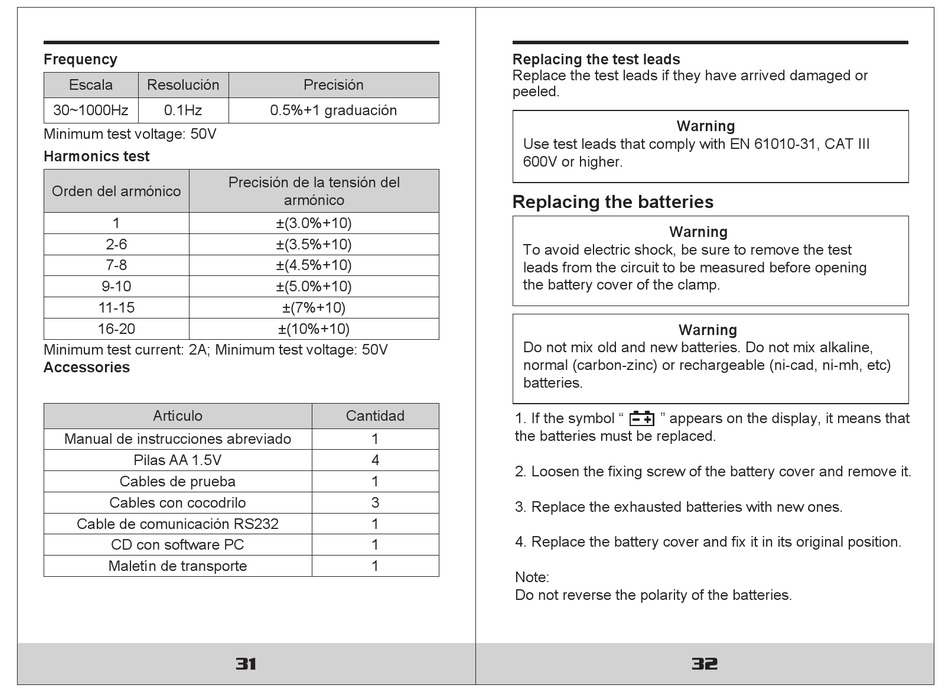

Frequency
Escala Resolución
30~1000Hz 0.1Hz
Minimum test voltage: 50V
Harmonics test
Orden del armónico
1
2-6
7-8
9-10
11-15
16-20
Minimum test current: 2A; Minimum test voltage: 50V

Accessories

Artículo
Manual de instrucciones abreviado
Pilas AA 1.5V
Cables de prueba
Cables con cocodrilo
Cable de comunicación RS232
CD con software PC
Maletín de transporte
Precisión
0.5%+1 graduación
Precisión de la tensión del
armónico
±(3.0%+10)
±(3.5%+10)
±(4.5%+10)
±(5.0%+10)
±(7%+10)
±(10%+10)
Cantidad
1
4
1
3
1
1
1
31

Replacing the test leads

Replace the test leads if they have arrived damaged or
peeled.
Warning
Use test leads that comply with EN 61010-31, CAT III
600V or higher.

Replacing the batteries

Warning
To avoid electric shock, be sure to remove the test
leads from the circuit to be measured before opening
the battery cover of the clamp.
Warning
Do not mix old and new batteries. Do not mix alkaline,
normal (carbon-zinc) or rechargeable (ni-cad, ni-mh, etc)
batteries.
1. If the symbol " " appears on the display, it means that
the batteries must be replaced.
2. Loosen the fixing screw of the battery cover and remove it.
3. Replace the exhausted batteries with new ones.
4. Replace the battery cover and fix it in its original position.
Note:
Do not reverse the polarity of the batteries.
