examination of on-site power equipment and power supply
circuits; With a small and lightweight portable clamp
structure, it can be easily carried by the user, making
measurements quick and easy. For single-phase / three-
phase power measurements, this instrument is the ideal
choice.
Characteristics
1. The clamp can be used to measure power, voltage,
current, peak value, phase, frequency, power factor,
phase angle, reactive factor, etc. single-phase / three-
phase circuits; automatic checking of the phase
sequence is possible for three-phase measurements.
2. True RMS Measurement - Accurate measurement is
possible even with strong distortion in the current
waveform.
3. A high speed and low consumption single chip
microprocessor is used and a sophisticated algorithm is
used, resulting in great speed and precision in obtaining
results and the possibility of measuring the distortion value
and up to the 20th harmonic.
4. It is equipped with a large memory
to record up to 100 groups of test parameters.
5. A recording interface is equipped and
RS232C communication and specialized graphics software
for WINDOWS.
6. Clip-type format, portable, lightweight and suitable for
transporte.
03

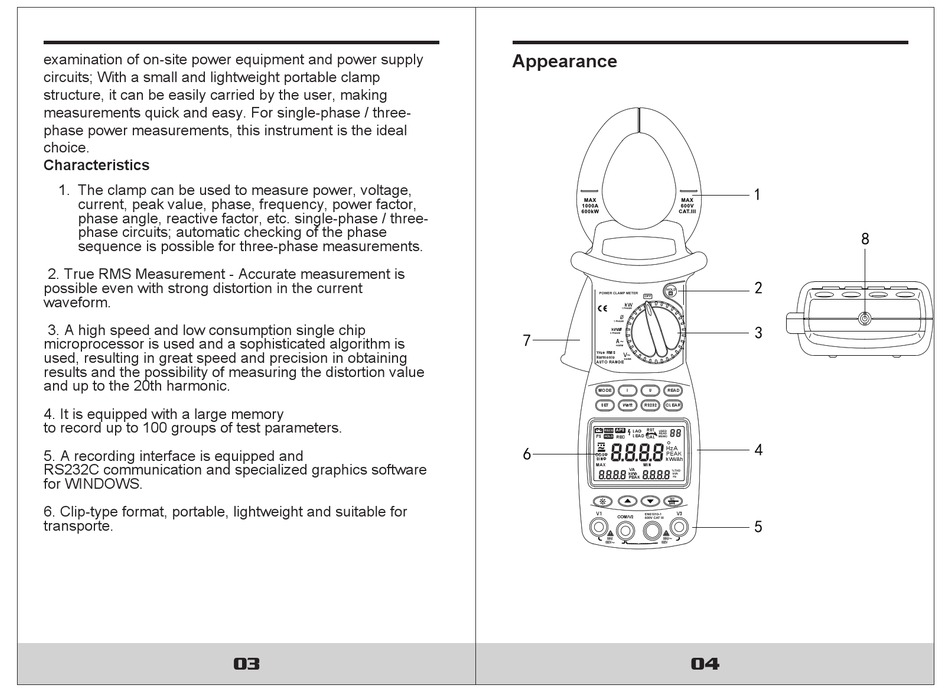

Appearance
HOLD
POWER CLAMP METER
OFF
kW
1 PHASE
Ø
1 PHASE
kW/Ø
7 3 PHASE
A~
HARM
Yrue RMS
V~
Harmonic
HARM
AUTO RANGE
MODE I U READ
SET Watt RS232 CLEAR
RST
APS
RS232 LAG USED
READ
FS LEAD
HOLD REC CAL MEMO
°
HzA
6
PEAK
COSΦ
SINΦ kWVAh
MAX MIN
VA
%THD
kWh
kVA
PEAK Hz
V1 V3
EN61010-1
COM/V2
600V CAT III
~
~
04
1
8
2
3
4
5
