Service Manual
Appendix

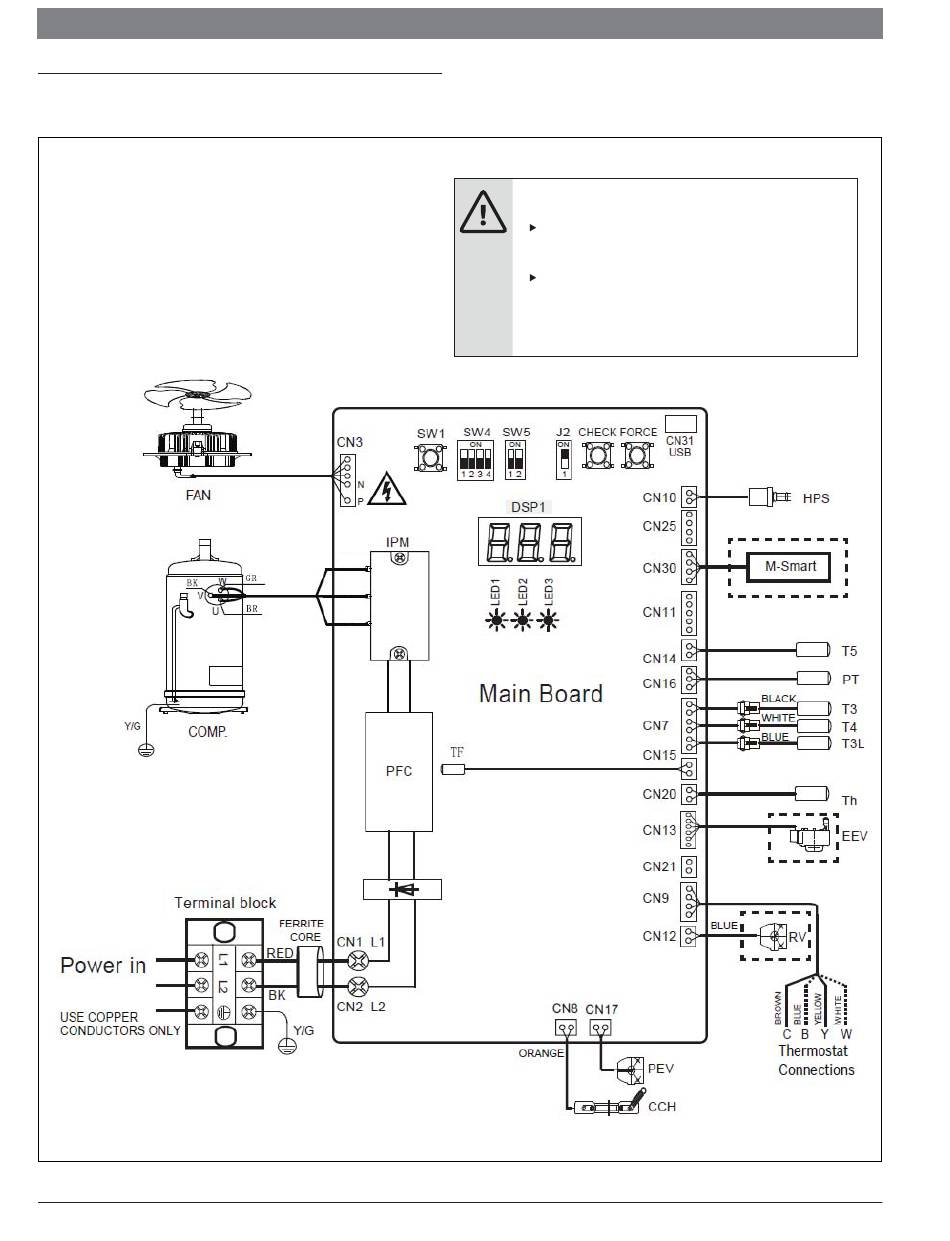

Appendix 1 Outdoor Unit Control Board
Figure 49
Bosch Thermotechnology Corp. | 07.2021
GR/W
BR/V
BK/U
WARNING: ELECTRICAL HAZARD 380 VOLTS DC
Failure to follow this warning could result in property
damage, severe personal injury, or death.
WAIT THREE (3) MINUTES after disconnecting power
prior to touching electrical components as they may hold a
dangerous charge of 380 VDC,then verify DC Voltage is less
than 42VDC at inverter TEST POINTS P-N.
BLUE
Bosch IDS 2.0 | 75
Data subject to change
