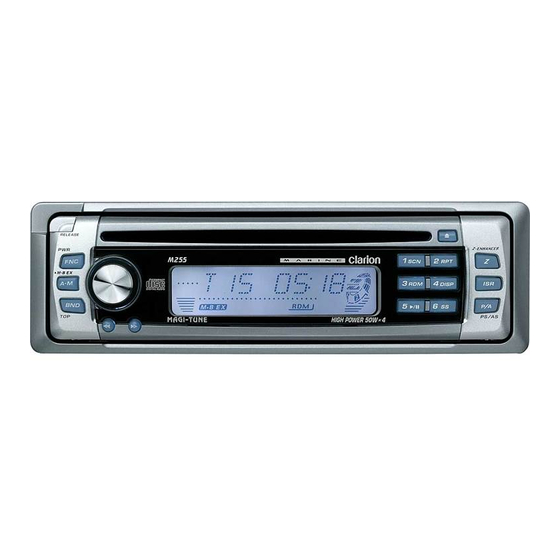

Clarion M255 Product Manual

Marine cd receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

4. PRECAUTIONS
1. When it is very cold in the boat and the unit is
used soon after switching on the heater, the
disc and the optical components may become
fogged and not operate properly. Wipe fogged
discs with a soft cloth. Fogged optical compo-
nents will naturally return to normal when the
unit is left for about one hour after which it will
operate normally.
This equipment has been tested and found to com-
ply with the limits for a Class B digital device, pur-
suant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a resi-
dential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio communica-
tions. However, there is no guarantee that inter-
ference will not occur in a particular installation.
If this equipment does cause harmful interference
to radio or television reception, which can be de-
termined by turning the equipment off and on, the
user is encouraged to consult the dealer or an
experienced radio/TV technician for help.
2. When the boat is underway in rough water the
sound may skip as a result of intense vibra-
tions and shock.
3. This unit uses a precision mechanism.
Even in the event that trouble arises, never
open the case, disassemble the unit, or
lubricate the rotating parts.
CAUTION
!
USE OF CONTROLS, ADJUSTMENTS, OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN, MAY
RESULT IN HAZARDOUS RADIATION EX-
POSURE.
THE COMPACT DISC PLAYER SHOULD
NOT BE ADJUSTED OR REPAIRED BY
ANYONE EXCEPT PROPERLY QUALIFIED
SERVICE PERSONNEL.
INFORMATION FOR
USERS:.
CHANGES OR MODIFICATIONS TO THIS
PRODUCT NOT APPROVED BY THE MANU-
FACTURER WILL VOID THE WARRANTY
AND WILL VIOLATE FCC APPROVAL.
5
M255

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M255 and is the answer not in the manual?

Questions and answers

Jennifer O'CONNELL
August 3, 2025

Player is showing ER-6 Disc is not in upside down.

0

Related Manuals for Clarion M255

Summary of Contents for Clarion M255

  • Page 1 THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL. INFORMATION FOR USERS:. CHANGES OR MODIFICATIONS TO THIS PRODUCT NOT APPROVED BY THE MANU- FACTURER WILL VOID THE WARRANTY AND WILL VIOLATE FCC APPROVAL. M255...

  • Page 2: Handling Compact Discs

    Note: • Do not use commercially available CD protection sheets or discs equipped with stabilizers, etc. These may get caught in the internal mechanism and damage the disc. M255 Note on compact discs mark. Never stick labels on the surface of the compact disc or mark the surface with a pencil or pen.

  • Page 3: Storing The Dcp In The Dcp Case

    DCP is an extremely important part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc. Note: • If the DCP is dirty, wipe off the dirt with a soft, dry cloth only. M255...

  • Page 4: Basic Operations

    ∗ The volume level is from 0 (minimum) to 33 (maxi- mum). M255 Note:Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 3. Setting the Z-Enhancer The unit provides 3 types of sound tone effects, stored in memory.

  • Page 5: Adjusting The Fader

    • If you select another operation mode while you are setting the clock, the clock setting operation will be canceled. • If you remove the vehicle's battery for a check or repair, the clock will reset, so you must set it again. M255...

  • Page 6: Radio Mode Operations

    Preset Memory Function can store up to 24 stations: six stations for each of FM1, FM2, FM3 and AM. M255 Manual memory function 1. Press the [ BND ] button, to select a band you want to store in the memory.
  • Page 7 • Note that mini CD's will not reload, so make sure to remove them. Top function Press the [ BND ] button, then the CD will start play- ing from the first song ( track number 1 ) . mark cannot be played M255...

  • Page 8: Fast-Forward And Fast-Backward

    At Audio CD operation, press the [ RDM ] button, the “RDM” is lit, then the entire tracks on the disc will be played at random. Press the [ RDM ] button again to disengage the unit from random play. M255 ] button for...

  • Page 9: Troubleshooting

    Turn off the power, then press the [ RELEASE ] button and remove the DCP. Press the reset button for about 2 seconds with a thin rod. Wipe the dirt off with a soft cloth moistened with cleaning alcohol. M255...

  • Page 10: Wire Connections

    To protect the system, this unit has been equipped with self diagnostic functions. If a fault arises, a warning is issued by various error displays. Follow the corrective measures and remove the fault. Error Display ER 2 ER 3 ER 6 M255 Function +12VDC Constant Power Source/Memory +12VDC Switch Lead/Accessory Ground Power Antenna Turn-on Dimmer...

  • Page 11: Specifications

    178 mm Width X 50 mm Height X 152 mm Depth Notes: • Specifications comply with JEITA Standards. • Specifications and design are subject to change without notice for further improvement. • If this is not done, severe damage to the source unit may happen. M255...
