Clarion CM1635 Brochure & Specs

MARINE SPEAKERS
CMSW10.1
10" Water-Resistant CEA-2031 Speaker Rating
Maximum RMS Power: 35 watts
Marine Subwoofer
Impedance: 4 ohms
FEATURES &
SPECIFICATIONS
Maximum Music Power ( Watts)
160 130 100 160 350
Mica-Injection Polypropylene
7 6-1/2 6-1/2 7 10
Woofer Cone (inch)
Sanoprene Rubber Surround
● ● ● ● ●
Titanium Coated Dome Tweeter
1-1/4 1 3/4 1-1/4 —
Meets Salt/Fog and UV Exposure
● ● ● ● ●
Standards (ASTM B117/D4329)
High Impact Centrex 814 Grille / Frame ● ● ● ● ●
Liquid Drainage System ● ● ● ● ●
Rubber Insulated Tinsel Leads ● ● ● ● ●
Gold Plated Speaker Terminals ● ● ● ● ●
Stainless Steel Mounting Hardware ● ● ● ● ●
Rubber Mounting Gasket
● ● ● ● ●
MARINE AMPLIFIERS
FEATURES &
SPECIFICATIONS
Maximum Music Power (Watts) 720 360
4 Ohms
90W x 4 90W x 2
2 Ohms 165W x 4 150W x 2
APX490M
Variable Bass Extender; 0 - 15dB @ 45Hz ● ●
Adjustable -12db/Oct. High/Low Pass
Marine 720W 4/3/2 Channel
Crossover, 55Hz - 550Hz
● ●
(Rear 55 - 550Hz, 550Hz - 5.5kHz) Power Amplifier
Mixed Mode Operation
● ●
Conformal Coated Double Sided PCB
● ●
Non-Corrosive Aluminum Heat Sink ● ●
15-1/4 10-1/2 CEA 2006 Power Ratings
Dimensions (W x L x H)(inch) 110W x 4 RMS [4Ω @14.4V ≤1% THD+N]
× 9-1/8 × 9-1/8
S/N 97dB (Ref: 1W into 4Ω)
× 2-1/4 × 2-1/4
MARINE CD CHANGER MARINE POWERED SUBWOOFER
SRV314
Slim Design 6-3/4" Powered Subwoofer
• Dual-Voice coil • 120 W high power amplifier with Low Pass
Filter • MaxxBass circuit for virtual bass enhancer • 6-3/4"
counter drive woofer with dual-neodymium magnet • Air
compression structure with aluminum die-cast enclosure
• Remote control for gain control /Low-Pass Filter (selectable
DCZ625 50/75/100/120 Hz)/phase select • Blue LED power indicator
• RCA line level input/Speaker level input
6-disc CD CeNET Changer
*"Maxx Bass" is a patent of KS-Waves."MaxxBass" is a registered trademark
• CeNET Controlled • Digital Optical Output • CD
of KS-Waves.
Text • CD-R/RW Ready • -15°to 105°Mounting Angle
• 8x Over Sampling Digital Filter • Zero Bit Detector
Mute Circuit • Spring Loaded Slicon Oil Dampened
Suspension • Dual 1-bit D/A Converters • 3-Beam
CEA 2006 Power Ratings
Laser System • Eject Capability While Ignition Off
28W × 2RMS [2Ω@14.4Vst%THD+N]
S/N 65dB (Ref.1Winto4Ω)
• Dimensions: 9" (W) × 2-1/2" (H) × 6-5/8" (D)
36
www.clarion.com

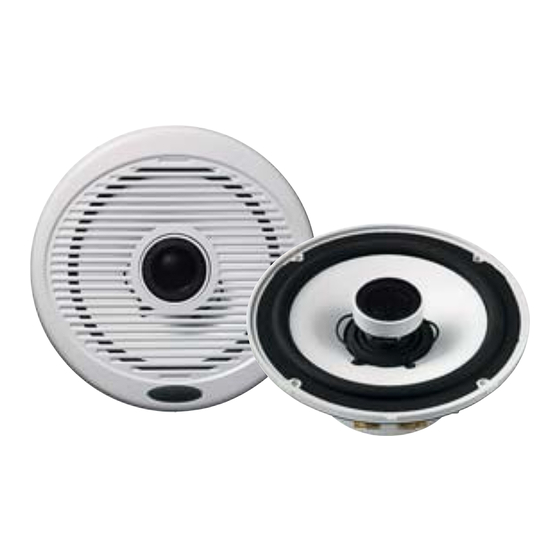

CMCS7.1 CM1635
7" 2-way Water-Resistant 6 1/2" 2-way Water-Resistant
Component Speaker System Component Speaker System
CEA-2031 Speaker Rating CEA-2031 Speaker Rating
Maximum RMS Power: 35 watts Maximum RMS Power: 35 watts
Impedance: 4 ohms Impedance: 4 ohms
CM1625 CMCX7.1
6 1/2" Coaxial 2-way 7" Coaxial 2-way
Water Resistant Speaker
Water Resistant Speaker
CEA-2031 Speaker Rating CEA-2031 Speaker Rating
Maximum RMS Power: 35 watts Maximum RMS Power: 35 watts
Impedance: 4 ohms Impedance: 4 ohms
APX290M
Marine 360W 2/1 Channel
Power Amplifier
CEA 2006 Power Ratings
100W x 2 RMS [4Ω @14.4V ≤1% THD+N]
S/N 95dB (Ref: 1W into 4Ω)
Stick wired
remote control
<Specification>
• Speaker type: 6-3/4" counter drive powered
subwoofer • Unit used: 6-3/4" MIPP cone woofer
(Dual Voice coil) • Rated output: 60W (30W+30W)
• Max power output:120W (60W+60W) • Playback
frequency range: 30 to 200Hz • Cut-off frequency:
50Hz/75Hz/100Hz/120Hz • Input sensitivity: RCA
input 20mV to 2V, Speaker input 0.2V to 20V • Power
source voltage: DC14.4V • Ground: Negative • Current
consumption: 7.0A • External dimensions: [Main unit]
12-1/4" (W) x 2-5/8" (H) x 8-1/4" (D) [Remote control
unit] 3-15/16" (W) x 1-1/8" (H) x 1" (D) • Weight: [Body]
2.0Kg [Remote control] 220g
The Sophisticated Side of Raw Power
Advanced design techniques and high quality materials have been
combined for the sole purpose of bringing earth-shaking bass performance
into your car. Feel the bass, boost your drive.
AMPLIFER SERIES
DPX Series
Class GH amplifiers deliver the
efficiency of a Class D amplifier with
sound quality of an AB design.
APX
Illumination Series
High-powered performance Class AB
amplifiers that appeal to your ears
and eyes with dynamic illumination.
APX Series
Mono and multi-channel amplifiers
that make it easy to equip any system
with thundering Sound.
SUBWOOFER SERIES
PXW Series
High-performance materials
and advanced design deliver extreme
bass and exquisite looks.
SRW Series
Step-up series providing an easy
solution for those who want to ramp-up
their bass performance.
SW Series
Developed especially to deliver big
bass performance in your car
with a relatively small investment.
37
