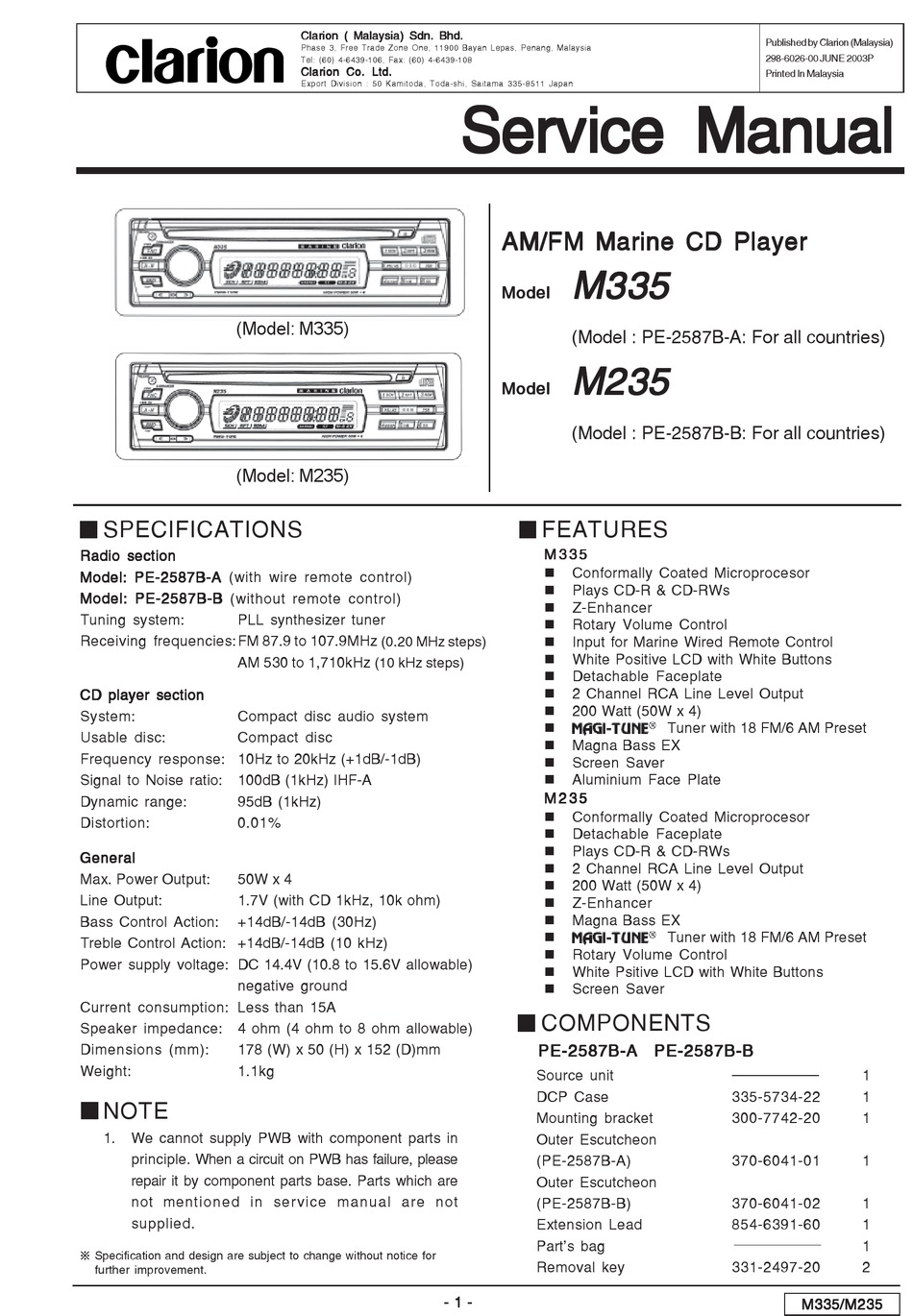

Clarion M335 Service Manual

(Model: M335)
(Model: M235)
SPECIFICATIONS
Radio section Radio section Radio section Radio section Radio section
Model: PE-2587B-A Model: PE-2587B-A Model: PE-2587B-A (with wire remote control) Model: PE-2587B-A Model: PE-2587B-A
Model: PE-2587B-B (without remote control) Model: PE-2587B-B Model: PE-2587B-B Model: PE-2587B-B Model: PE-2587B-B
Tuning system: PLL synthesizer tuner
Receiving frequencies:FM 87.9 to 107.9MHz
AM 530 to 1,710kHz
CD player section CD player section CD player section CD player section CD player section
System: Compact disc audio system
Usable disc: Compact disc
Frequency response: 10Hz to 20kHz (+1dB/-1dB)
Signal to Noise ratio: 100dB (1kHz) IHF-A
Dynamic range: 95dB (1kHz)
Distortion: 0.01%
General General
General General General
Max. Power Output: 50W x 4
Line Output: 1.7V (with CD 1kHz, 10k ohm)
Bass Control Action: +14dB/-14dB (30Hz)
Treble Control Action: +14dB/-14dB (10 kHz)
Power supply voltage: DC 14.4V (10.8 to 15.6V allowable)
negative ground
Current consumption: Less than 15A
Speaker impedance: 4 ohm (4 ohm to 8 ohm allowable)
Dimensions (mm): 178 (W) x 50 (H) x 152 (D)mm
Weight: 1.1kg
NOTE
1. We cannot supply PWB with component parts in
principle. When a circuit on PWB has failure, please
repair it by component parts base. Parts which are
not mentioned in service manual are not
supplied.
Specification and design are subject to change without notice for
further improvement.
Clarion ( Malaysia) Sdn. Bhd. Clarion ( Malaysia) Sdn. Bhd. Clarion ( Malaysia) Sdn. Bhd.
Clarion ( Malaysia) Sdn. Bhd. Clarion ( Malaysia) Sdn. Bhd.
Phase 3, Free Trade Zone One, 11900 Bayan Lepas, Penang, Malaysia
Tel: (60) 4-6439-106, Fax: (60) 4-6439-108
Clarion Co. Ltd. Clarion Co. Ltd. Clarion Co. Ltd. Clarion Co. Ltd. Clarion Co. Ltd.
Export Division : 50 Kamitoda, Toda-shi, Saitama 335-8511 Japan
Se Se rv rv rv rv rv ice Manual Se
Se Se
(0.20 MHz steps)
(10 kHz steps)
- 1 - - 1 - - 1 - - 1 - - 1 -
ice Manual ice Manual
ice Manual ice Manual
AM/FM Marine CD Player AM/FM Marine CD Player AM/FM Marine CD Player
AM/FM Marine CD Player AM/FM Marine CD Player
M335 M335
M335 M335 M335
Model Model Model
Model Model
(Model : PE-2587B-A: For all countries)
M235 M235
M235
M235 M235
Model Model
Model Model Model
(Model : PE-2587B-B: For all countries)
FEATURES
M 3 3 5 M 3 3 5 M 3 3 5
M 3 3 5 M 3 3 5
Conformally Coated Microprocesor
Plays CD-R & CD-RWs
Z-Enhancer
Rotary Volume Control
Input for Marine Wired Remote Control
White Positive LCD with White Buttons
Detachable Faceplate
2 Channel RCA Line Level Output
200 Watt (50W x 4)
Tuner with 18 FM/6 AM Preset
Magna Bass EX
Screen Saver
Aluminium Face Plate
M 2 3 5 M 2 3 5 M 2 3 5 M 2 3 5 M 2 3 5
Conformally Coated Microprocesor
Detachable Faceplate
Plays CD-R & CD-RWs
2 Channel RCA Line Level Output
200 Watt (50W x 4)
Z-Enhancer
Magna Bass EX
Tuner with 18 FM/6 AM Preset
Rotary Volume Control
White Psitive LCD with White Buttons
Screen Saver
COMPONENTS
PE-2587B-A PE-2587B-B PE-2587B-A PE-2587B-B PE-2587B-A PE-2587B-B PE-2587B-A PE-2587B-B PE-2587B-A PE-2587B-B
Source unit
DCP Case
Mounting bracket
Outer Escutcheon
(PE-2587B-A)
Outer Escutcheon
(PE-2587B-B)
Extension Lead
Part's bag
Removal key
Published by Clarion (Malaysia)
298-6026-00 JUNE 2003P
Printed In Malaysia
1
335-5734-22 1
300-7742-20 1
370-6041-01 1
370-6041-02 1
854-6391-60 1
1
331-2497-20 2
M335/M235 M335/M235 M335/M235 M335/M235 M335/M235
