Issue Date: 22.01.2020
»
PRODUCT TESTING AND CERTIFICATION
Declaration of conformity
The declaration of conformity of the products can be found on our website https://www.thermokon.de/.
»

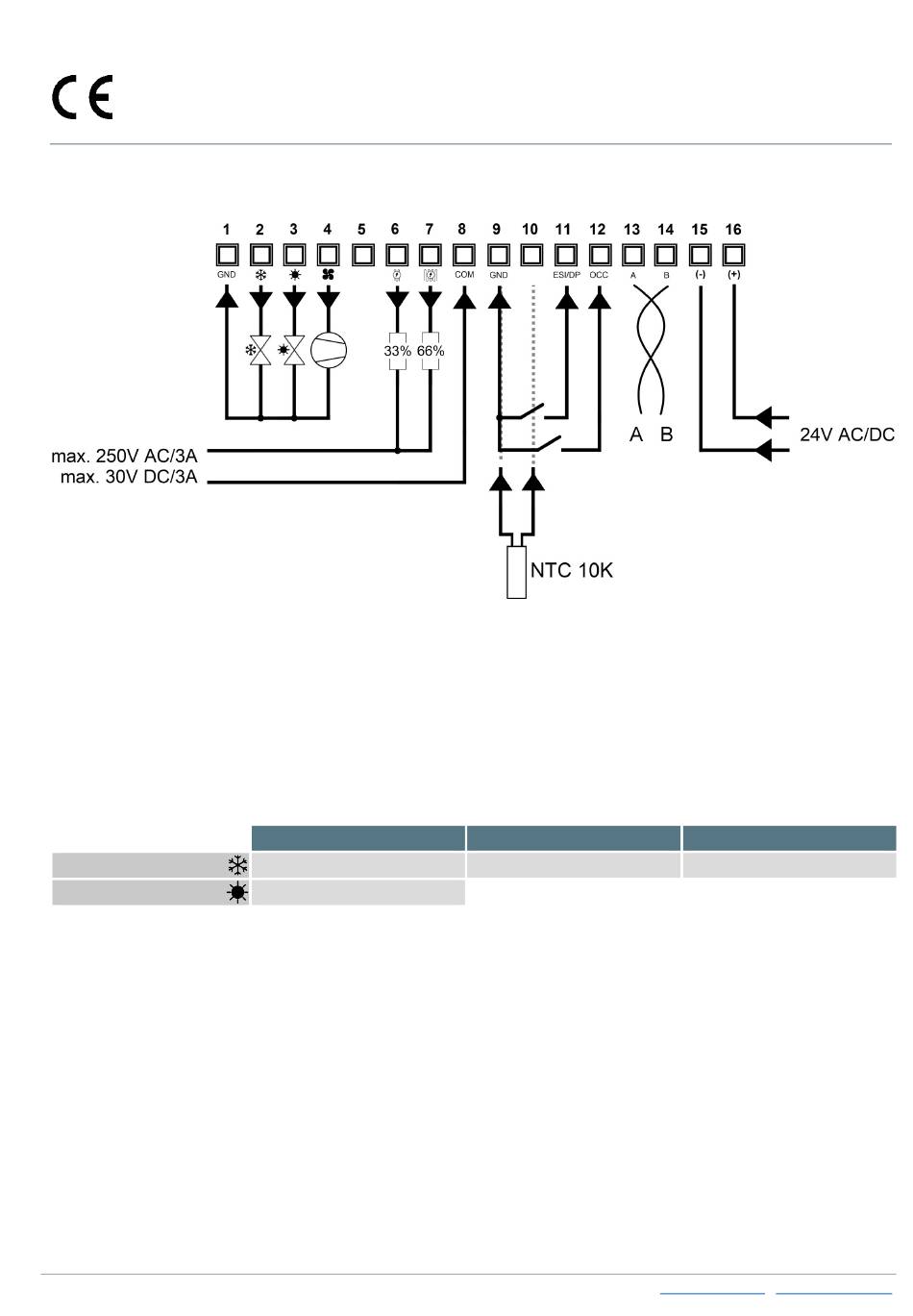

CONNECTION PLAN

Power supply
When several BUS devices are supplied by one 24 V AC voltage supply, it is to be ensured that all "positive" operating voltage input terminals (+)
of the field devices are connected with each other and all "negative" operating voltage input terminals (-) (=reference potential) are connected
together (in-phase connection of field devices).
In case of reversed polarity at one field device, a supply voltage short-circuit would be caused by that device. The consequential short-circuit
current flowing through this field my cause damage to it.
Therefore, pay attention to correct wiring.
Controller output signal
Terminal 2
Terminal 3
Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Deutschland · tel: 02778/6960-0 · fax: -400 ·
4-pipe (default)
Cooling
Heating
LCF02-Touch_3AO2DO_Datasheet_en.docx © 2020
2-pipe
Heating & Cooling
www.thermokon.de
Page 3 / 15
6WV – 6-way valve
Heating & Cooling
