MOUNTING ADVICES

The housing of the module is designed for installation on standard DIN rails according to DIN EN 50022. For operation, a separate external 868
MHz receiving antenna is necessary.
The antenna has a magnetic flux and must be mounted in the middle of a metal plate with the minimum dimensions 180 mm x 180 mm (material:
galvanized sheet steel, please see "accessories"). The ideal mounting place in rooms is found approx. 1 m under the ceiling (optimum radio
transmission range). The antenna should be adjusted vertically downwards and should have a minimum distance of approx. 90 mm to the wall.
The distance to other senders (e.g. GSM/DECT/Wireless LAN/ EnOcean senders) should be 2 m at least. To match the colour of the room, the
antenna can be painted, accordingly (do not use any metallic lacquers).
Cable Laying Notice
Cable laying should be made in an electric conduit.
•
A cable crushing should be avoided.
•
• The minimum bending radius of the extension cable amounts to 50mm
• Do not use an active pull-up device for the cable laying, in order to avoid any damages of the sheathing respectively of the connectors.
»

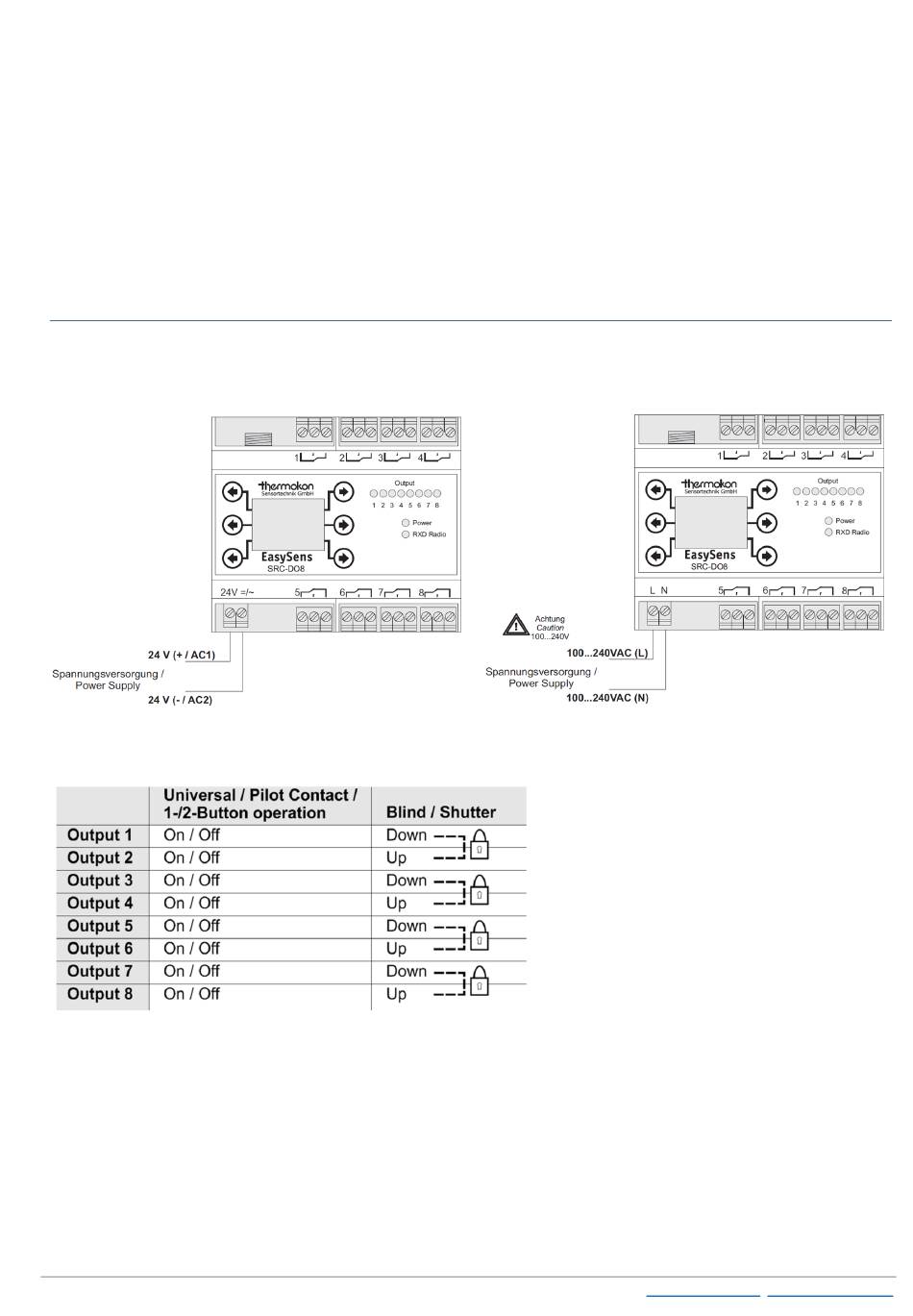

CONNECTION PLAN

STC-DO8 24 V
Assignment of the outputs
The functions of the individual outputs in dependence on the device settings are shown in the following table:
Notice:
A combination of low voltage and mains voltage at the individual outputs is not safe. All relay outputs must use a common phase - various phases
are prohibited.
Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany tel: +49 2778 6960-0 fax: -400
STC-DO8_Typ3_EasySens_Datasheet_en.docx © 2021
Stand: 12.01.2021
STC-DO8 230 V
