Thermokon Sensortechnik GmbH - Thyristor controller TS1 3Ph, TS1 SP 3Ph
L1 L2 L3
Content
1.
Important safety instructions................................................................................2
2.
General instructions.............................................................................................2
3.
Technical explanations of thyristor controllers.................................................... 3
3.1 Explanation phase angle control Ph....................................................................4
3.2 Explanation multicycle control SP (burst-firing-control)....................................... 5
4.
Installation of the thyristor controller TS1 3Ph, TS1 SP 3Ph............................... 6
5.
EMC-equitable assembly.....................................................................................6
6.
Operation.............................................................................................................8
7
Meaning of the clamp connections and LEDs..................................................... 9
8.
Basic circuit........................................................................................................10
9.
Survey of the individual types.............................................................................11
10. Technical data....................................................................................................12
Version: 2018/06/25
Start-up instructions
Thyristor controller
Type: TS1 3Ph, TS1 SP 3Ph
Three phase controller W3C
TS1 3Ph...
TS1 SP 3Ph...
Page
1
Advertisement
Table of Contents
Related Manuals for Thermokon TS1 3Ph Series
Summary of Contents for Thermokon TS1 3Ph Series
-
Page 1: Table Of Contents

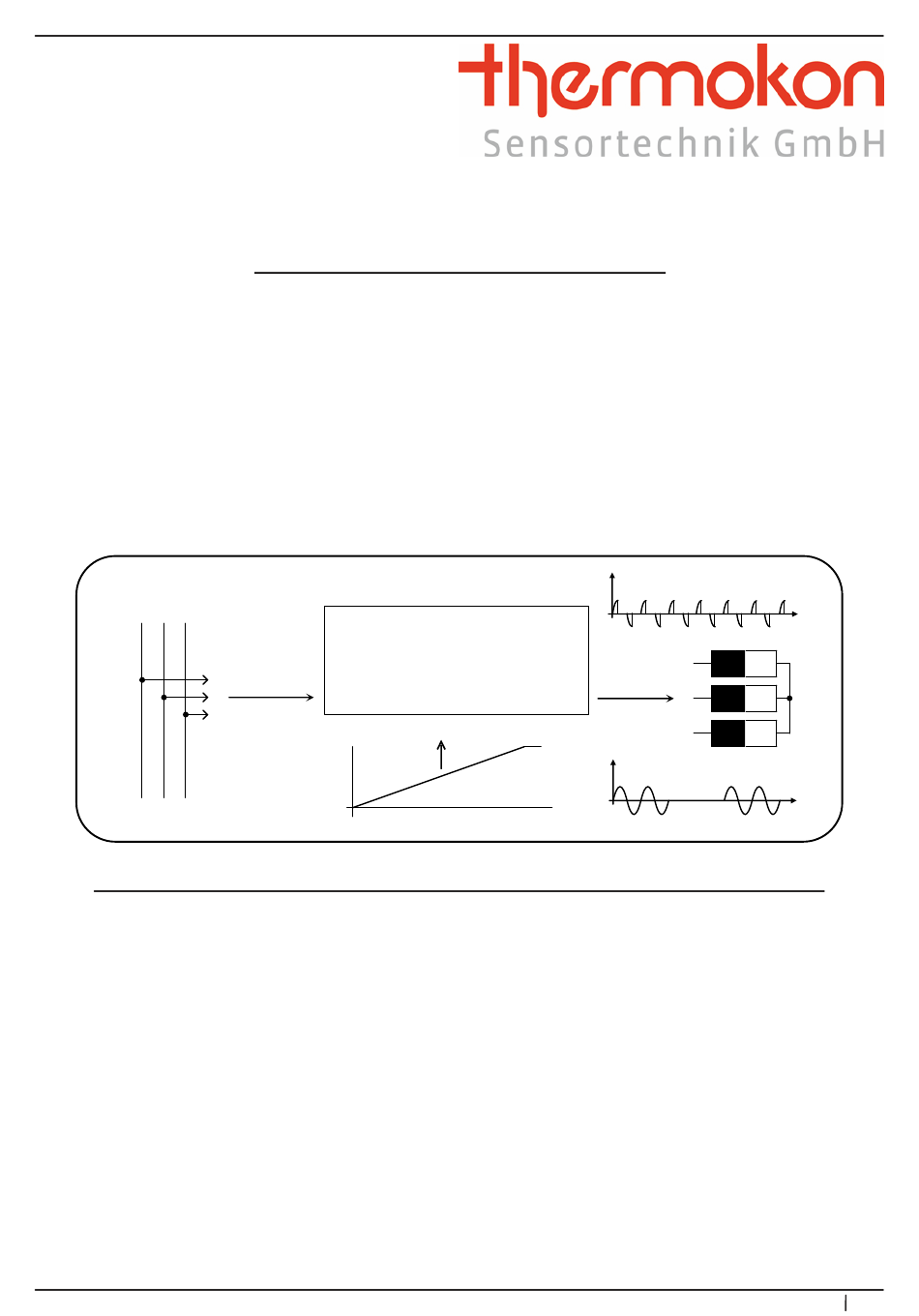

Thermokon Sensortechnik GmbH - Thyristor controller TS1 3Ph, TS1 SP 3Ph Start-up instructions Thyristor controller Type: TS1 3Ph, TS1 SP 3Ph Three phase controller W3C L1 L2 L3 TS1 3Ph... TS1 SP 3Ph... Content Page Important safety instructions................2 General instructions.....................2 Technical explanations of thyristor controllers............ -
Page 2: Important Safety Instructions
Thermokon Sensortechnik GmbH - Thyristor controller TS1 3Ph, TS1 SP 3Ph Important safety instructions This manual contains instructions, which have to be observed for your personal safety and for the pre- vention of material damage. The instructions about your personal safety are highlighted with a warning triangle labelled with three exclamation marks, hints about material damages are listed with a warning triangle and one exclamation mark. -
Page 3: Technical Explanations Of Thyristor Controllers
Thermokon Sensortechnik GmbH - Thyristor controller TS1 3Ph, TS1 SP 3Ph Technical explanations on thyristor controllers The thyristor controller is more and more used in sectors in which bigger loads of ohm and inductive loads have to be regulated. Due to its modular, compact construction and its controlling by a continual control signal, these wattage regulators become a perfect device for industrial control of wattage input. -
Page 4: Explanation Phase Angle Control Ph
Thermokon Sensortechnik GmbH - Thyristor controller TS1 3Ph, TS1 SP 3Ph Explanation phase angle control Ph LAST α The phase angle control is an electrotechnical method to regulate the electrical power of loads with single phase current or three phase current. A typical use of this technology is dimming of light bulbs and various inductive and ohmic components. -
Page 5: Explanation Multicycle Control Sp (Burst-Firing-Control)
Thermokon Sensortechnik GmbH - Thyristor controller TS1 3Ph, TS1 SP 3Ph Explanation multicycle control SP (burst-firing control) LAST In this operating mode the thyristor controller ensures the targeted switching of individual full waves of the power supply. Depending on the control signal individual halfwaves (positive half-waves, negative half-waves) and wave packets can be switched, in which the switching point is always at the sinus zero crossing. -
Page 6: Installation Of The Thyristor Controller Ts1 3Ph, Ts1 Sp 3Ph
Thermokon Sensortechnik GmbH - Thyristor controller TS1 3Ph, TS1 SP 3Ph Installation of the thyristor controller TS1 3Ph, TS1 SP 3Ph The built-in device according to IP 40 has to be mounted in a housing or a switchboard panel. Take care of adequate cooling (separate ventilation, for instance). - Page 7 Thermokon Sensortechnik GmbH - Thyristor controller TS1 3Ph, TS1 SP 3Ph Use of mains filters: Radio interference filters and mains filters (combination of radio interference filter and one mains choke) serve for protection against high-frequency disturbances, which are sent out via the power cable or the radiation of the power cable.
-
Page 8: Operation
Thermokon Sensortechnik GmbH - Thyristor controller TS1 3Ph, TS1 SP 3Ph Operation To begin with, all electronical connections have to be established according to the circuit diagrams L1, L2, L3, T1 (U), T2 (V), T3 (W). The thyristor controller has to be connected to the mains according to the electric regulations (Low Voltage Directive) so that they can be separeted by disconnecting switches (e.g. -
Page 9: Meaning Of The Clamp Connections And Leds
Thermokon Sensortechnik GmbH - Thyristor controller TS1 3Ph, TS1 SP 3Ph Meaning of the clamp connections and LEDs Mains voltage (Ui) connection of 400V/50Hz L1, L2, L3 (optional: any other voltages can be realized upon request) Option Load voltage (Ua) -
Page 10: Basic Circuit
Thermokon Sensortechnik GmbH - Thyristor controller TS1 3Ph, TS1 SP 3Ph Basic circuit if external load supply voltage ohm or inductive is used PE L1 L2 L3 T1 T2 T3 (Option) Thyristor controller TS1 3Ph... TS1 SP 3Ph... Monitoring LED’s: Mains 100% U 0...20mA... -
Page 11: Survey Of The Individual Types
Thermokon Sensortechnik GmbH - Thyristor controller TS1 3Ph, TS1 SP 3Ph Survey of the individual types [mm²] [kW] [kg] [mm] TS1 3Ph 02 100x77x110 TS1 3Ph 04 100x77x110 100x100x110 TS1 3Ph 06 100x108x110 TS1 3Ph 08 100x108x110 TS1 3Ph 10 Errors and technical modifications excepted (Date: 2018/06) The given details also apply to the version with multicycle control TS1 SP 3Ph... -
Page 12: Technical Data
Thermokon Sensortechnik GmbH - Thyristor controller TS1 3Ph, TS1 SP 3Ph Technical data Mains voltage 400V AC, 50-60Hz (optional: further mains voltages available) Auxiliary Voltage generation internal Max. load current see table on page 9 (2...10A) Mains frequency 48Hz...62Hz Phase sequence...
