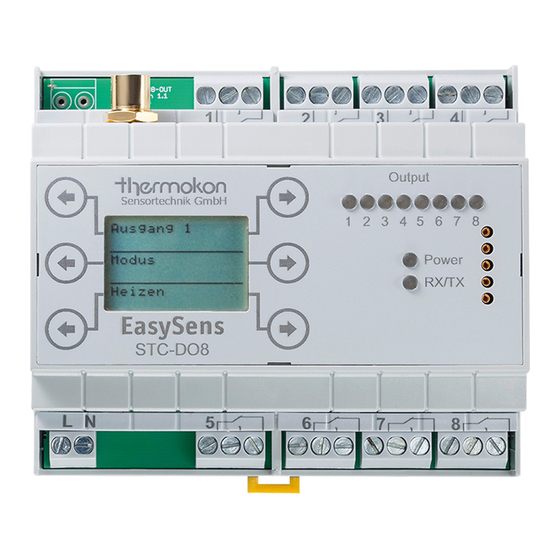

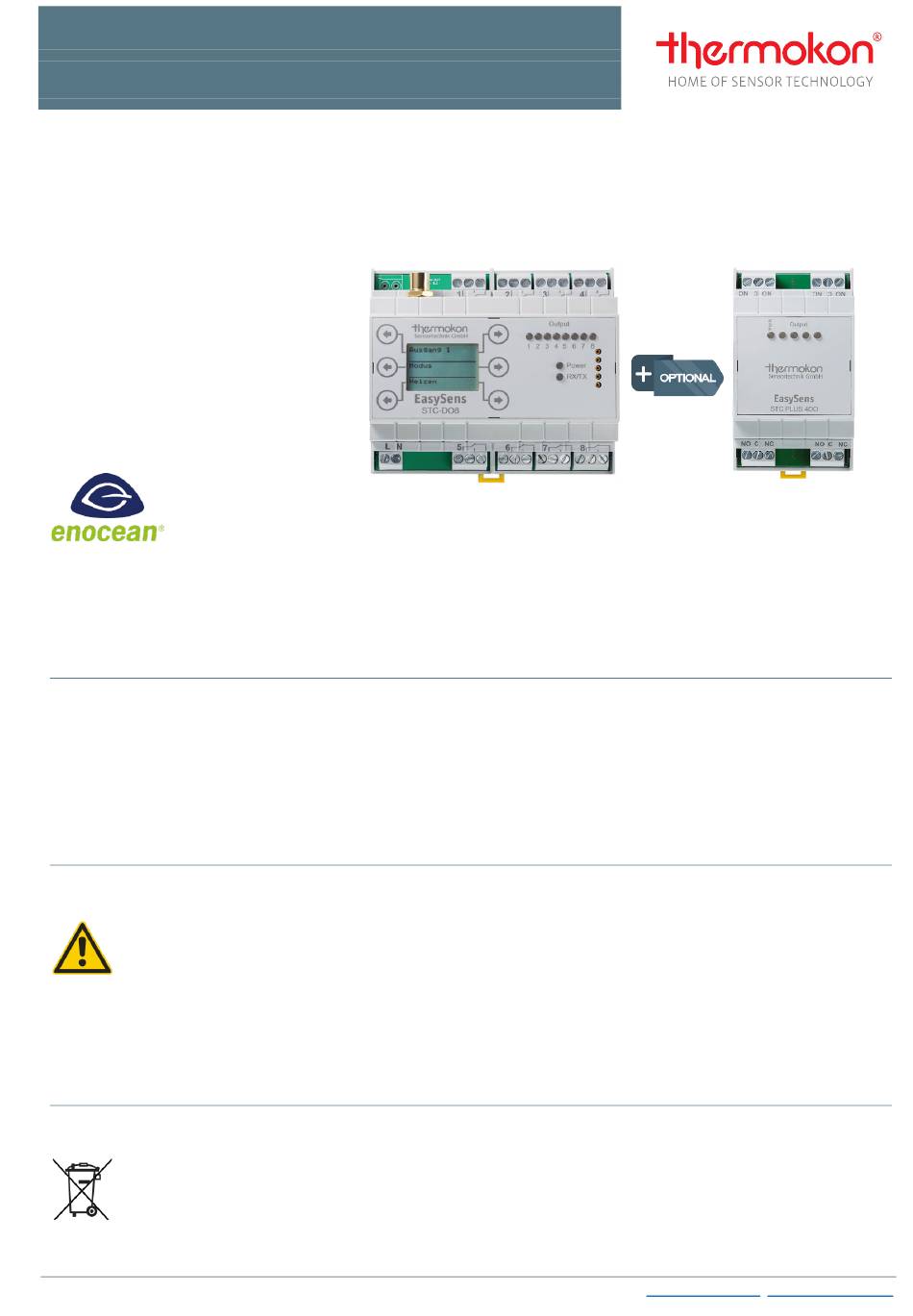

» STC-DO 8 Type 3
Wireless Actuator with 8 digital outputs
Datasheet
Subject to technical alteration
Issue date: 12.01.2021 • A112
»
APPLICATION
Bidirectional receiver with 8 digital outputs (or 12 with extension module STC-Plus 4DO). For heating/cooling control, fan coil control, control of
lights and blinds etc. Incl. ext. receiving antenna (2,5 m).
»
TYPES AVAILABLE – TYPE 3
Wireless receiver – multi relay 24 V
STC-DO8 24 V type switch actuator
Wireless receiver – multi relay 100..230 V
STC-DO8 230 V type switch actuator
»
SECURITY ADVICE – CAUTION
The installation and assembly of electrical equipment should only be performed by authorized personnel.
The product should only be used for the intended application. Unauthorised modifications are prohibited! The product must not be
used in relation with any equipment that in case of a failure may threaten, directly or indirectly, human health or life or result in
danger to human beings, animals or assets. Ensure all power is disconnected before installing. Do not connect to live/operating
equipment.
Please comply with
Local laws, health & safety regulations, technical standards and regulations
•
•
Condition of the device at the time of installation, to ensure safe installation
This data sheet and installation manual
•
»
NOTES ON DISPOSAL
As a component of a large-scale fixed installation, Thermokon products are intended to be used permanently as part of a building
or a structure at a pre-defined and dedicated location, hence the Waste Electrical and Electronic Act (WEEE) is not applicable.
However, most of the products may contain valuable materials that should be recycled and not disposed of as domestic waste.
Please note the relevant regulations for local disposal.
Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany tel: +49 2778 6960-0 fax: -400
STC-DO8_Typ3_EasySens_Datasheet_en.docx © 2021
517690
www.thermokon.com email@thermokon.com
Advertisement
Table of Contents
Related Manuals for Thermokon STC-DO8
Summary of Contents for Thermokon STC-DO8
- Page 1 NOTES ON DISPOSAL As a component of a large-scale fixed installation, Thermokon products are intended to be used permanently as part of a building or a structure at a pre-defined and dedicated location, hence the Waste Electrical and Electronic Act (WEEE) is not applicable.
-
Page 2: Technical Data
Seite 2 / 13 Stand: 12.01.2021 » PRODUCT TESTING AND CERTIFICATION Declaration of conformity The declaration of conformity of the products can be found on our website https://www.thermokon.de/. » TECHNICAL DATA Output switch contact STC-DO8 24 V: 8x relay with change-over contact (floating), 24 V =/~ 6 A, 12x relay with additional module STC-PLUS 4DO STC-DO8 100..230 V:... - Page 3 • Any 4 byte EnOcean based sensor (4BS) can be learned-in to the STC-DO8 via the menu point “Learning-in of individual sensor“. The evaluation of the data detected by this sensor can be freely parameterized by the user. Thus, it is also possible to learn-in and to evaluate sensors which's profiles are not supported by the STC-DO8 actually.
-
Page 4: Mounting Advices
A combination of low voltage and mains voltage at the individual outputs is not safe. All relay outputs must use a common phase - various phases are prohibited. Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany tel: +49 2778 6960-0 fax: -400 www.thermokon.com email@thermokon.com... - Page 5 Stand: 12.01.2021 Seite 5 / 13 Control of 4 lamps and 2 blind/shutter drives Control of 4 blind/shutter drives Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany tel: +49 2778 6960-0 fax: -400 www.thermokon.com email@thermokon.com STC-DO8_Typ3_EasySens_Datasheet_en.docx © 2021...
-
Page 6: Function Description
Time Switch By means of the integrated time switch of the STC-DO8 it is possible to switch each output time-controlled. Therefore, 8 switching times are available in total, which can be assigned to each weekday and each output individually. Furthermore, an overlapping of the individual switching times is possible. - Page 7 Calibration is finished as soon as the green LED (power) shines continuously. The STC-DO8 has a configuration menu via which any properties can be set. The menu is partitioned into 3 levels, whereas for operation each level is exactly assigned to 2 keys.
- Page 8 Thus, it is also possible to learn-in and to evaluate sensors which's profiles are not supported by the STC-DO8 actually. First, the user has to determine which data byte of the sensor shall be evaluated (menu “Data byte individualsens”).
- Page 9 45 seconds. If the sensor was successfully disconnected (learned-out) a corresponding notice is displayed. Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany tel: +49 2778 6960-0 fax: -400 www.thermokon.com email@thermokon.com STC-DO8_Typ3_EasySens_Datasheet_en.docx © 2021...
- Page 10 » SETTING OF TIME AND WEEKDAY The internal clock of the STC-DO8 is set via the menu “Time”. Therefore, the sub-menus “Clock”, „Day and month“, „Year“ and “clock change” are available. To make sure that the clock is also working correctly after a power failure, the STC-DO8 has an integrated energy buffer supplying the internal clock automatically for >24 hours.
-
Page 11: General Settings
Seite 11 / 13 » GENERAL SETTINGS In the menu “General” general settings for the STC-DO8 can be determined which are valid for the complete device and which are not assigned to an output or comfort time. Language Factory setting: German Setting of menu language. - Page 12 Via the menu "Test Outputs" the function of all STC-DO8 outputs and all thermic actuators connected can be tested. Advice: Please note that the normal control function of the STC-DO8 is stopped, as long as you are in the menu "Test Outputs". The control function is automatically activated again as soon as the menu "Test Outputs"...
-
Page 13: Dimensions (Mm)
» EXTENSION MODULES (TYPE STC-DO8 ONLY) By the specially provided connector on the STC-DO8 extension modules can be added, so that the STC-DO8 can be expanded to a certain number of outputs. The extension module is identified automatically by the STC-DO8 when starting the device. The identification is displayed with a corresponding message.
