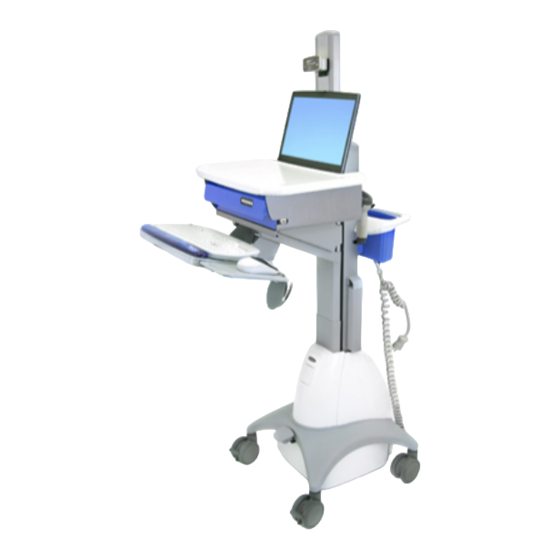

Ergotron Styleview SV22-92026 Set-Up&Go Manual

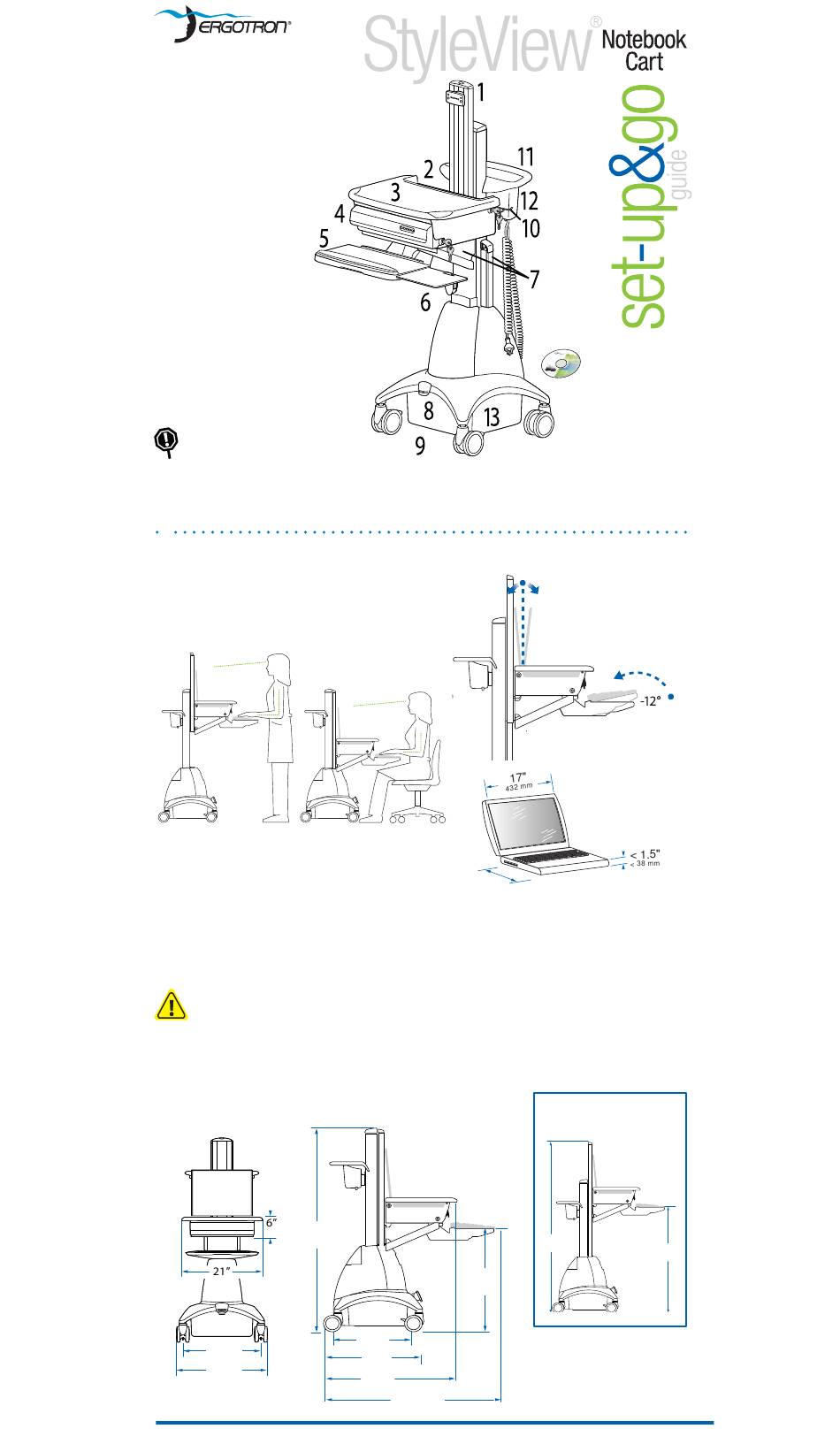

Features
- SV22-92026
1
Riser
2
Notebook Enclosure
3
Worksurface
4
Electronic Autolock Drawer
5
Tilting Keyboard Tray and Wrist Rest
6
Right/Left Mouse Tray and Holder
7
Cable Management
8
Riser Lift Brake
9
Locking Front Casters
10
Scanner Holder Bracket
11
Ergonomic Rear Handle
12
Storage Basket
13
Power System - 120VAC/60 HZ
a 55 Ah Battery
b 4 AC Outlets (300 Watts total)
c Remote User Interface (RUI)
d StyleLink Software CD & Cable
e Coiled Power Cord
Please read all parts of this guide. When
set-up is complete, do not discard this guide.
The guide should be fi led in a secure place
for future reference.
Cart Specifi cations
- For Power System Specifi cations see page 11.
Range of motion
Vertical Adjustment Range: 20" (508 mm)
STAND
Weight capacities
Keyboard Tray 2.5 lbs
Mouse Holder .5 lb
Scanner Holder .5 lb
Basket 5 lbs
CAUTION: The lift brake locks vertical lift of riser during normal use but it DOES NOT
increase load capacity. DO NOT load riser with equipment totalling more than the maxi-
mum weight capacity specifi ed by Ergotron. Ensure optimum lift function by testing and if nec-
essary, re-adjusting tension whenever the weight mounted to the riser changes (i.e., equipment
is removed or added). See "Set Riser Lift Tension" adjustment instructions in step 7 on page 4.
Dimensions
Riser in Lowest Position
50.8"
157 mm
1290 mm
533 mm
18"
457 mm
21"
533 mm
1 1
c
b
SIT
12.5
318 mm
1.1 kg
.23 kg
Notebook
.23 kg
Drawer
2.3 kg
Worksurface
24"
610 mm
18"
457 mm
22.3"
566 mm
28"
711 mm
38"
965 mm
EN
e
d
a
StyleView powered
carts provide
electrical AC power
for mobile point
of care computing
equipment in
a healthcare
environment.
Tilt: ±15° Viewing Angle
Based on a 10" High x 1/2"
deep Notebook
Keyboard Tray Tilt: -12°
Maximum
Notebook Size
"
5-12 lbs 2.3-5.4 kg
4 lbs 1.8 kg
2.5 lbs 1.1 kg
Riser at Full Height
70.5"
1791 mm
For more information
on this or other Ergotron
products, visit our website:
www.ergotron.com
888-SV-22DN-00 rev C
44"
1118 mm
