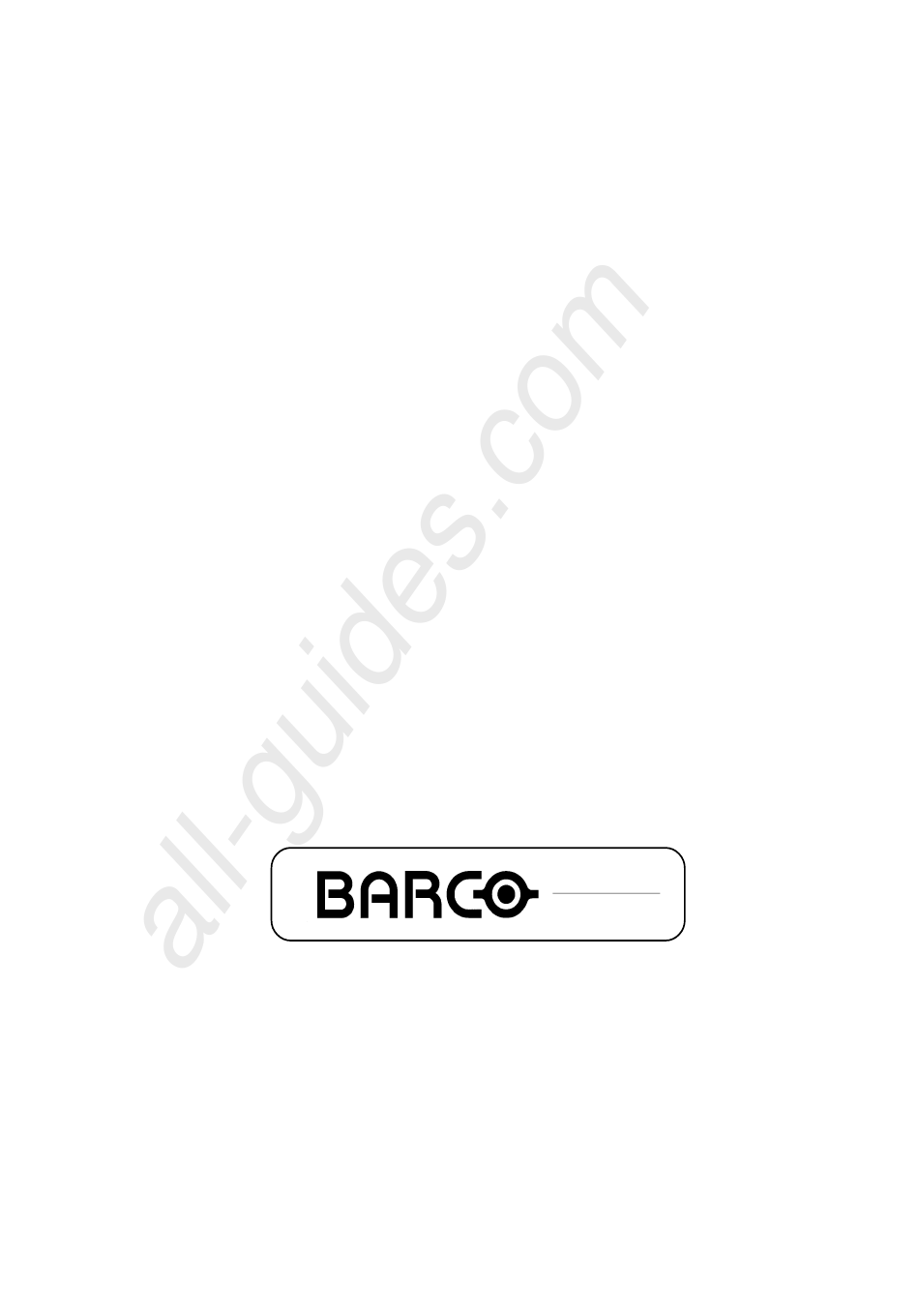

GRAPHICS
1209s
R9000972
R9000977
INSTALLATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R9000972 and is the answer not in the manual?

Questions and answers

Related Manuals for Barco R9000972

Summary of Contents for Barco R9000972

  • Page 1 All manuals and user guides at all-guides.com GRAPHICS 1209s R9000972 R9000977 INSTALLATION MANUAL...
  • Page 2 All manuals and user guides at all-guides.com BARCO PROJECTION SYSTEMS GRAPHICS 1209s R9000972 R9000977 INSTALLATION MANUAL Date : Rev. : Art. No. : 040598 R5975638...
  • Page 3 Produced by BARCO NV, May 1998. All rights reserved. Trademarks are the rights of their respective owners. BARCO nv/Projection Systems Noordlaan 5 B-8520 Kuurne Belgium Tel : +32/56/368211 Fax : +32/56/351651 E-mail : sales.bps@barco.com Visite Barco at the web : http://www.barco.com Printed in Belgium...

  • Page 4: Table Of Contents

    All manuals and user guides at all-guides.com Table of contents TABLE OF CONTENTS ..........................I-1 SAFETY INSTRUCTIONS On safety ............................. 1-1 On installation ............................1-2 On servicing ............................1-2 On cleaning ............................1-2 On repacking ............................1-2 On illumination ............................. 1-2 UNPACKING AND PROJECTOR DIMENSIONS Unpacking ............................

  • Page 5: Table Of Contents

    Optical Lens Focusing ......................... 8-2 Raster Centering ..........................8-3 CRT Projection Angle Adjustment ....................... 8-4 Scheimpfug Adjustment ........................8-6 Appendix A : Barco ceiling mount support Appendix B : G2 adjustment Appendix C : Gamma corrections 5975638 BARCOGRAPHICS 1209s 010797...

  • Page 6: Safety Instructions

    Part 15 of FCC rules and EN55022. projector. Record these numbers in the spaces provided below. Refer to them whenever you call upon your BARCO dealer regarding * All the safety and operating instructions should be read before using this product.

  • Page 7: On Installation

    Green/yellow:ground - When replacement parts are required, be White: neutral sure the service technician has used original BARCO replacement Black: line (live) parts or authorized replacement parts which have the same char- acteristics as the BARCO original part. Unauthorized substitutions may result in degraded performance and reliability, fire, electric shock .

  • Page 8: Unpacking And Projector Dimensions

    All manuals and user guides at all-guides.com Unpacking and dimensions UNPACKING AND PROJECTOR DIMENSIONS Unpacking To open the banding around the carton, pull out the clip as shown below : Take the projector out of its shipping carton and place it on a table. Save the original shipping carton and packing material, which will come in handy if you ever have to ship your projector.

  • Page 9: Projector Dimensions

    All manuals and user guides at all-guides.com Unpacking and dimensions Projector dimensions (in mm) 1174 46.2 1014 39.9 1000 39.37 28.9 4.33 10.43 30.8 26.2 13.9 12.4 8.62 3.98 4.76 5975628 BARCOGRAPHICS 1209s 010797...

  • Page 10: Installation Guidelines

    The projector is designed for projecting an image width from 2m (6.6') to 3m (10') with HD120 lenses and with an aspect ratio of 4 to 3. It leaves the BARCO factory, adjusted as a ceiling/front projector for a screen width of 2.4m (7.8'). Changing the image size from the factory preset size requires a realignment of the projector.

  • Page 11: Where To Install The Projector

    Used phosphor width on the CRT faceplate (e.g. green CRT) Mounting Configuration Ceiling Mount To install the projector in the Ceiling configuration, use BARCO'S Ceiling Mount Kit (CM100) - Order Number R9827341 (with pulley) or R9827342 (without pulley). Installation instruction is included inside the kit.

  • Page 12: Installation Set-Up

    All manuals and user guides at all-guides.com Installation set-up INSTALLATION SET-UP WARNING : Risk of electric shock ! Installation only by BARCO authorized service personeel Access to Controls Opening the top cover Lock screws During the projector set-up and installation it is nec- essary to open the top cover.

  • Page 13: Scan Adaptation

    All manuals and user guides at all-guides.com Installation set-up Scan Adaptation The scan switches must be placed in the correct position which corresponds to the desired scanning configuration. To change the scanning, it is necessary to remove the projector top cover and to open the protection plate. For opening the projector's top cover, see 'Access to controls'.

  • Page 14: Vertical Scan Switch

    All manuals and user guides at all-guides.com Installation set-up Three switches are used, one for each CRT. When changing the horizontal scan, insure that all three switches are set in the same position. See positions of the switches (diagram on next page) for the corresponding projector configuration.
  • Page 15 All manuals and user guides at all-guides.com Installation set-up ⊆ Highlight 'IDENTIFICATION' by pushing the control disk up or down and press the SERVICE MODE IDENTIFICATION COPY A BLOCK DELETE A BLOCK DELETE ALL BLOCKS CHANGE PASSWORD CHANGE LANGUAGE RUN TIME DYNAMIC ASTIGMATISM MORE...

  • Page 16: Projector Set-Up

    All manuals and user guides at all-guides.com Projector set-up PROJECTOR SET-UP The DIP switches on the controller board allow the SET-UP of the projector : 8 DIP switches for the projector address setting. − 1 DIP switch for the power up mode setting. −...

  • Page 17: Setting The Projector Address

    All manuals and user guides at all-guides.com Projector set-up Setting the projector address The projector's address may be set to any value between 0 and 255. When the address is set, the projector can be controlled now by : the RCU for addresses between 0 and 9. ρ...

  • Page 18: Power-Up Mode

    All manuals and user guides at all-guides.com Projector set-up Power-up mode The projector can start up in two different modes. The start up mode is determined by the position of DIP Switch No. 4 of another set of 8 DIP switches on the controller board (one set of 8 switches are used for projector address setting).

  • Page 19: Password Mode

    All manuals and user guides at all-guides.com Projector set-up Password mode With DIP Switch No.5 of the second set of 8 DIP switches on the controller board, the projector adjustments can be protected with a password. When the password feature is enabled, the user has to enter a password before he can enter the adjustment mode (For more information about password setting and reprogramming the pass- word, see Installation adjustment).

  • Page 20: Ac Power Connection

    All manuals and user guides at all-guides.com AC power connection AC POWER CONNECTION AC Power (mains) cord connection Use the supplied cord to connect your projector to the wall outlet. Plug the female power connector into the male connector at the back of the projector.

  • Page 21: Ac Power Check

    Check the power voltage which is determined by the Art. No. on the indentification label pasted on the backside of the projector. Projectors with the Art. No. R9000972 must be connected to a 230 VAC power source. Projectors with the Art. No. R9000977 must be connected to a 120 VAC power source.

  • Page 22: Switching On The Projector

    All manuals and user guides at all-guides.com AC power connection Fuses For continued protection against fire hazard : 230 Vac T6.3A/250V (2x) R314145 Replace with the same type of fuse. − 120 Vac T10A/250V (2x) R314154 Refer replacement to qualified service personnel. −...

  • Page 23: Starting Up Without "Warm Up Period

    All manuals and user guides at all-guides.com AC power connection If a key, other than , is pressed, a text box with the following text will be displayed : "Please use <EXIT> to leave this procedure." Start up without "Warm up period" If EXIT is pressed, the warm up period will be skipped and the projector is immediately ready for use.

  • Page 24: Source Connections

    All manuals and user guides at all-guides.com Source connections SOURCE CONNECTIONS Signal input connection The following signals can be connected to the projector through the inputs on the back panel of the projector : QPSUÃ#$ QPSUÃ QPX @S H6 DI T QSPE@8UPSÃHP9@ SB7ÃÃCW WD9@P...

  • Page 25: Connecting A S-Video (Or Composite Video) Source To Port 2

    All manuals and user guides at all-guides.com Source connections Connecting a S-Video (or Composite Video) 4 pin connector configurations: source to Port 2 For S-video: For video: Pin 1: earth(ground) luminance Pin 1: earth(ground) video Pin 2: earth(ground) chrominance Pin 2: not connected Pin 3: luminance signal(Y) Pin 3: video signal Separate Y-luma/C-chroma signals for higher quality playback of...

  • Page 26: Connecting A Rgb Analog Source To Port 3

    An interface is recommended when connecting a computer and local monitor to the projector. BARCO provides the following interfaces Universal Analog Interface - Order no. : R9826100. RGB 120 MHz Analog Interface - Order no. : R9826570.

  • Page 27: Connecting A Rgb Analog Source With Tri-Level Sync To Port 4/5 (Option)

    All manuals and user guides at all-guides.com Source connections QPSUÃ#$ QPSUà QPX@SH6DIT QSPE@8UPSÃHP9@ SB7ÃÃCW WD9@P Connecting a RGB Analog source with Tri- BS@@IÃ)ƒr…h‡v‚hy 8‚€ƒCÆ’p WÆ’p S@9Ã)Ƈhqi’ S@HPU@ QPSUÃ%à QPSUÃ" 8PHHVID86UDPI level sync to Port 4/5 (option) QPSUÃ! TWD9@P &$Âu€ &$Âu€ RGB analog input terminals with Tri-level sync input or with Tri-level sync on green can be connected to the projector via Port 4/5.

  • Page 28: Installation Adjustment Mode

    ARE RESERVED TO, AND TO BE PERFORMED ONLY switch to the internal pattern on 15 kHz/50 Hz. BY BARCO PERSONNEL, OR BARCO AUTHORIZED DEALERS 4 When the password mode is active, you will be requested to enter IF QUALIFIED, PRESS <ENTER>...

  • Page 29: Projector Distance

    All manuals and user guides at all-guides.com Installation adjustment mode The top cover of the projector should be removed in order to gain access to the adjustments. Projector Distance On the screen, a drawing will be displayed together with parameters FHLOLQJ indicating a correct installation position.

  • Page 30: Raster Centering

    All manuals and user guides at all-guides.com Installation adjustment mode Raster Centering The raster must be centered on the CRT faceplate of each tube, therefore, it is necessary to look into the lenses. RASTER CENTERING Caution : To avoid eye discomfort while performing these adjust- CONTRAST LEVEL IS REDUCED ments, reduce the contrast and gradually increase the brightness AND BRIGHTNESS INCREASED...

  • Page 31: Crt Projection Angle Adjustment

    All manuals and user guides at all-guides.com Installation adjustment mode CRT Projection Angle Adjustment The projection angle of the red and blue CRT's is dependent on the desired size of the projected image. If the centers of green, blue and red do not coincide, the CRT projection angle must be adjusted.
  • Page 32 All manuals and user guides at all-guides.com Installation adjustment mode Loosen bolts D, E and F to pivot the blue CRT until the center of the Blue image and the center of the Green image coincide. When the angle of the blue CRT is corrected, tighten the four bolts. Press to continue with the diagonal focusing menu.

  • Page 33: Scheimpfug Adjustment

    All manuals and user guides at all-guides.com Installation adjustment mode Scheimpflug Adjustment (Diagonal image focusing) With the diagonal image focusing corrections, it is possible to obtain uniform focus for the total projected image. DIAGONAL IMAGE FOCUSING These corrections must be repeated for each colour. The Diagonal 1.
  • Page 34 All manuals and user guides at all-guides.com Installation adjustment mode Repeat the same procedure for the red and blue image using the corresponding screws. To optimize the image focusing, repeat the optical lens focusing. When the scheimpflug corrections are correctly adjusted, secure this position by fastening the security screws on both sides of each LENS lens.
  • Page 35 All manuals and user guides at all-guides.com Installation adjustment mode 5975638 BARCOGRAPHICS 1209s 040598...

  • Page 36: Appendix A : Barco Ceiling Mount Support

    This appendix gives only an overview of the contents of the installation guidelines and some overview drawings. The installation guidelines for the BARCO ceiling mounting support can be ordered from BARCO. The order number: R5975693. Contents of the installation guidelines Overview drawing of the total system 8 @I U@S ȃƒr…ƈ...
  • Page 37 All manuals and user guides at all-guides.com Appendix A: BARCO ceiling mount support Projector-position corrections * Water-level adjustment * Projector axis adjustment 5975638 BARCOGRAPHICS 1209s 040598...

  • Page 38: Appendix B : G2 Adjustment

    All manuals and user guides at all-guides.com Appendix B: G2 adjustment G2 ADJUSTMENT Once the on-screen menu "G2 ADJUSTMENT" is displayed, proceed as follows : B !Ã69EVTUH @I U Use the potentiometers on the G2-ADJ. module to set the screen grid voltage for Red, Green and Blue.
  • Page 39 All manuals and user guides at all-guides.com Appendix B: G2 adjustment 597638 BARCOGRAPHICS 1209s 040598...

  • Page 40: Appendix C : Gamma Corrections

    All manuals and user guides at all-guides.com Gamma corrections GAMMA CORRECTIONS When entering the gamma corrections, a warning will be displayed WARNING RISK OF INCORRECT ADJUSTMENT OF THE "RISK OF INCORRECT ADJUSTMENT OF THE PROJECTOR. PROJECTOR. THE GAMMA CORRECTIONS ARE FACTORY ADJUSTED USING AN ACTAS COLOR ANALYSER ! THEREFORE, ONLY QUALIFIED THE GAMMA CORRECTIONS ARE INSTALLATION OR SERVICE PERSONNEL SHOULD PERFORM...
  • Page 41 All manuals and user guides at all-guides.com Gamma Corrections To carry out the Red and Blue Midlights Correction : 1 Push the control disk up or down to highlight the item R & B MIDLIGHTS in the menu and then press GAMMA CORRECTIONS is pressed, the projector will return to the Service menu.
  • Page 42 All manuals and user guides at all-guides.com MATERIAL SAFETY DATA SHEET (Federal Supply Code for Manufacturer's) BARCO N.V. 32-56-368211 (Number, Street, City, State, and ZIP Code) Noordlaan 5 B-8520 KUURNE Ethylenglycol & Glycerol Cooling liquid 512334 Polyalcohols (FSN) (LBS) (Units)
  • Page 43 All manuals and user guides at all-guides.com 100ppm (Materials to avoid) Rinse with water (Specific type) (General) Harmful if swallowed Keep out of the reach of children To avoid from oxidants THE INFORMATION CONTAINED HEREIN IS BASED ON DATA CONSIDERED ACCURATE. HOW- EVER, NO WARRANTY IS EXPRESSED OR IMPLIED REGARDING THE ACCURACY OF THESE DATA OR THE RESULTS TO BE OBTAINED FROM THE USE THEREOF.
  • Page 44 All manuals and user guides at all-guides.com...
  • Page 45 All manuals and user guides at all-guides.com...

This manual is also suitable for:
